FPI FP90 Wood Fireplace

28

INST

ALLA

TION

REGENCY LOUVER INSTALLATION

Installing the Top Louver

1) Add two (2) screws (¼-20 X ½”) to the front of the

fi replace for mounting the top louver. The screws
must be left loose to allow the top louver to slide
onto them. Adjustment of theses screws will be
needed to get the louver to sit fl ush with the front
of the fi replace.

2) Place the top louver above the mounting screws located

on the front of the fi replace and slide the louver down onto
the screws.

Installing the Bottom Louver

3) Close the bottom louver and secure on the magnets provided

(refer to Diagrams 1 and 2).

1) Fasten the bottom louver frame onto the front of

the fi replace using two (2) screws (¼-20 X ½”).

2) Take the bottom louver and slide it onto the rotation pins

located on the bottom louver frame.

NOTE: Take care not to scratch the paint on the front of the

fi replace when installing the top louver.

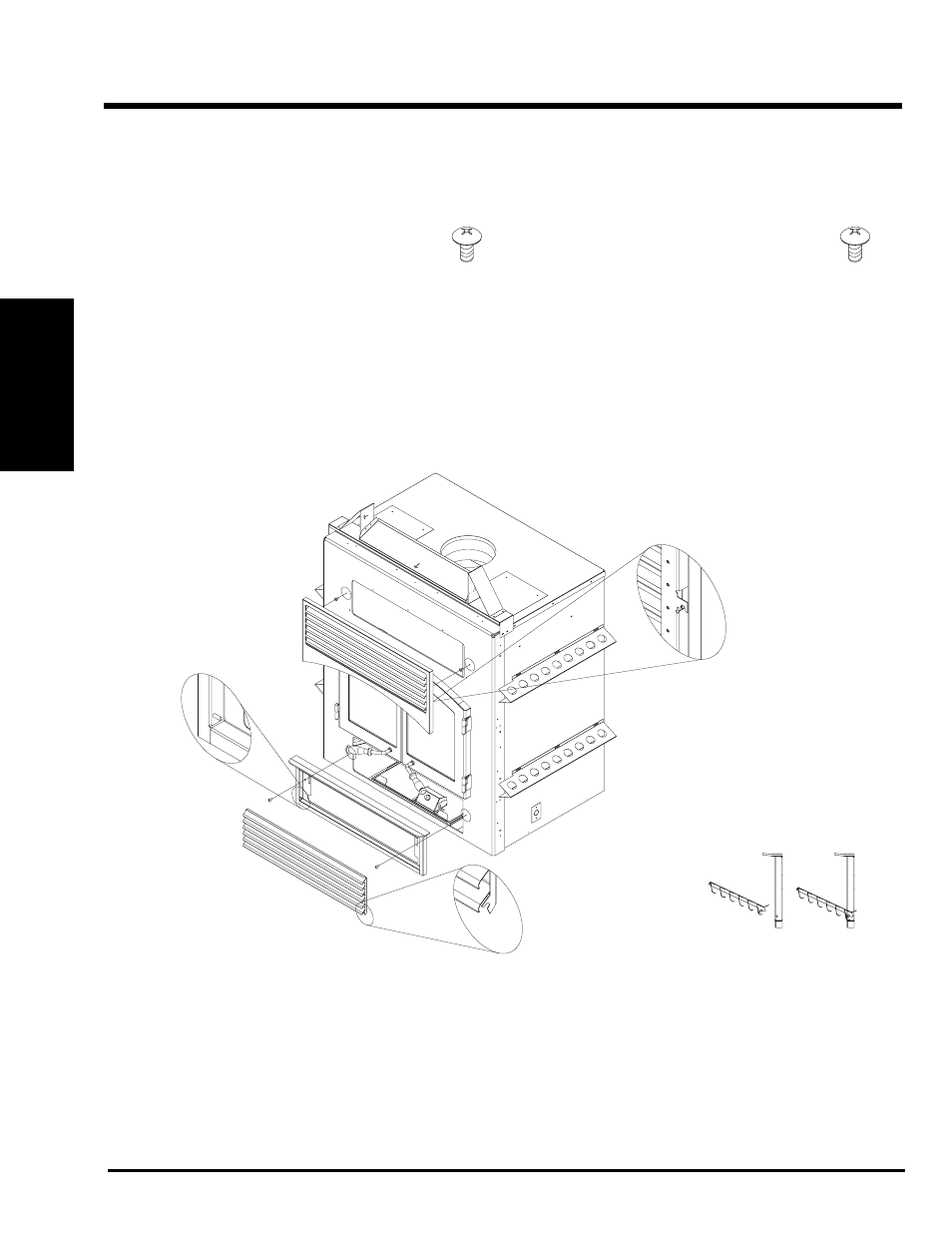

Top Louver
Mounting Tab (x2)

Bottom Louver
Rotation Pin Tab (x2)

Bottom Louver
Frame Rotation Pin Tab (x2)

Diagram 1

Bottom Louver Mounting Sequence

Diagram 2
