FPI FP90 Wood Fireplace

10

INST

ALLA

TION

Fire Stop

FireStop

Straightrun

for 8"(203mm)

Hot Air Duct

Unit projects

out flush with

non-combustible
material

2 x 4 Framing

2 x 6 Framing

10"

2 x 6

Wall with a

2 x 4 Header

Stud

84"

(2137mm)

50-3/4"

(1289mm)

55-3/4"

(1416mm)

42-5/8"

(1083mm)

(254mm)

2 x 4

Stud Wall

5"(127mm)

wide sheet

metal strip under

unit and hearth

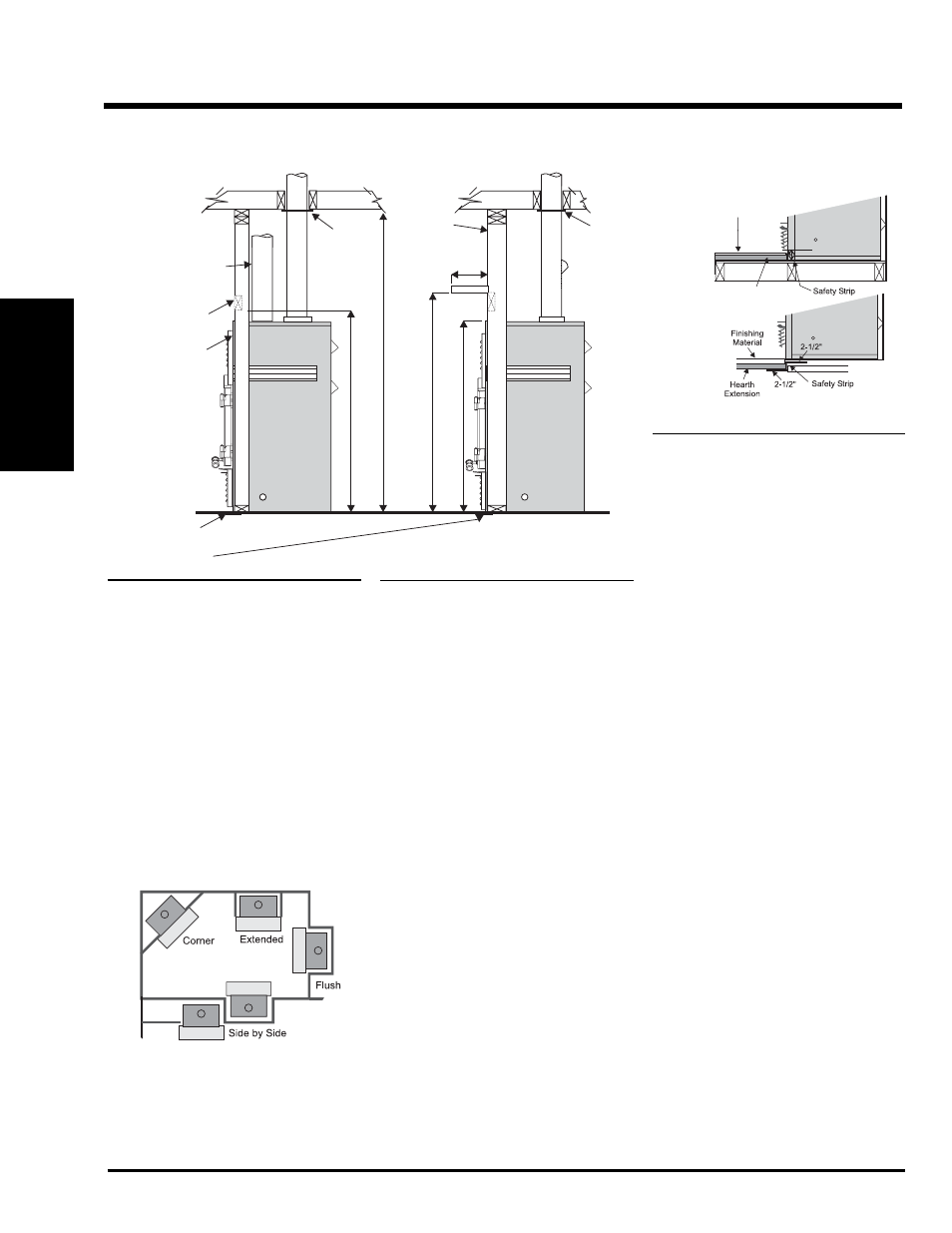

FRAMING DETAILS

LOCATION OF

FIREPLACE

1) Carefully select the proper location for heat

circulation, aesthetics, chimney obstructions
and clearance to side wall(s). With proper
pre-planning, a slight adjustment of a few
inches can save considerable time and
expense later during construction and

assembly.

2) Carefully consider the position of the fi replace

opening with respect to the location of
adjacent or nearby stairwells, bath or kitchen
exhaust fans and/or return air registers for
forced air furnaces/air conditioners that
could cause a smoking fi replace condition
if the house is tightly insulated.

3) Fireplace must be anchored to the framing

to prevent movement or rocking; use the
nailing strips which have been supplied.
The nailing strips are installed to the side
of the unit and to the front side of the 2 x 4
or 2 x 6.

1) Insert the metal safety strip, packaged

with the fi replace beneath the fi replace as
illustrated in Diagram 1 below. The safety
strip should be tacked down to prevent
possible shifting and should overlap for
continual coverage of the fl oor.

Note: A safety strip is not required when the

fi replace rests on a non-combustible
surface.


Note: Install the hearth extension only as

illustrated.

The safety strip should extend 2 in. (51 mm)
in front and on the sides of the fi replace.
In the event a wooden support is used to
elevate the fi replace above the fl oor, a “Z”
type safety strip should be fabricated from
20 gauge galvanized sheet steel and used
to protect the front surface of the wood
support as well as the fl oor beneath the
hearth extension.

FINISHING MATERIAL

FINISHING MATERIAL

NON-COMBUSTIBLE

NON-COMBUSTIBLE

1/2"(13mm) THICK

1/2"(13mm) THICK

HEARTH EXTENTION

HEARTH EXTENTION

(64mm)

(64mm)

Diagram 1

Note: The “Z” type safety strip is not

supplied by Regency and must be
fabricated locally.

The proposed alternative is 4” (102mm) brick
with a C-factor of 1.25 over 1/8” (3mm) mineral
board with a k-factor of 0.29.

Step (a): Use formula above to convert

specifi cation to R-value.

R = 1/k x T = 1/0.84 x .75 = 0.893.

Step (b): Calculate R of proposed system.

4” brick of C = 1.25, therefore

Rbrick = 1/C = 1/1.25 = 0.80

1/8” mineral board of k = 0.29,

therefore Rmin.bd. = 1/0.29 x

0.125

=

0.431

Total R = Rbrick + Rmineral board

= 0.8 + 0.431 = 1.231.

Step (c): Compare proposed system R of

1.231 to specifi ed R of 0.893.

Since proposed system R is

greater than required, the system

is

acceptable.

DEFINITIONS

Thermal

Conductance:

C

= Btu = W

(hr)(ft2)(oF) (m2))(k)

Thermal Conductivity:

k =(Btu)(inch) = W = Btu

(hr)(ft3)(oF) (m)(k) (hr)(ft)(oF)

Thermal

Resistance:

R = (ft2)(hr)(oF) = (m2)(k)

Btu

W

INSTALLATION

HEARTH EXTENSION

NOTE: Hearth must have 1/2" (13mm) Millboard
under fi nish material with minimum "k" factor
of 20.07. When unit is raised 4" (102mm), the
thermal fl oor protection is not required. If you
plan to raise the fi replace and hearth extension,
build the platform assembly then position
fi replace and hearth extension on top. If you
are not raising the unit, check that you will have
suffi cient clearance under the bottom louver
for your fi nishing material on top of the hearth
extension, i.e. tiles, concrete board, etc.

How To Determine

If Alternate Floor

Protection Materials Are

Acceptable

The specifi ed fl oor protector should be 1/2”
(13mm) thick material with a k-factor of 20.07.
