FPI FP90 Wood Fireplace

19

INST

ALLA

TION

Non-Combustible

Material

Metal

Filler

Strips

Stand-off

Spacers

Metal
Filler
Strip

60" (1524mm)

C

A

B

B

3/4"

(19mm)

2-1/2"

(64mm)

1-1/4"(32mm)

48" (1219mm)

29" (637mm)

2-1/2"

(64mm)

6) Depending on the height of the hearth in

front of the unit, it may be necessary to trim
the bottom of the mesh sides (B) to fi t. Mark
and drill holes for side pieces. Attach with
washers and screws.

7) Place the top metal fi ller strip in between

stove and framing to cover the stand-off
space. Fit the strips behind Top mesh "C" so
that it covers the stand-off, and will prevent
mortar from falling through the mesh.

8) Put the doors on the unit and check that the

veneer on both sides do not interfere with
the door swing.

9) Use washers and screw top mesh (C) to top

of grill frame. This is attached with the top
edge of the grill frame on piece (B).

10) Now fasten mesh to wall sheathing and

blend in.

11) Use only non-combustible masonry

products to fi nish fi replace front.

Finishing Details

Consideration must be given to fireplace
placement when deciding on how to complete
the facing.

IMPORTANT: A tight joint between
masonry and fi replace is necessary to
prevent heat from rolling up the front
to the Face Header.

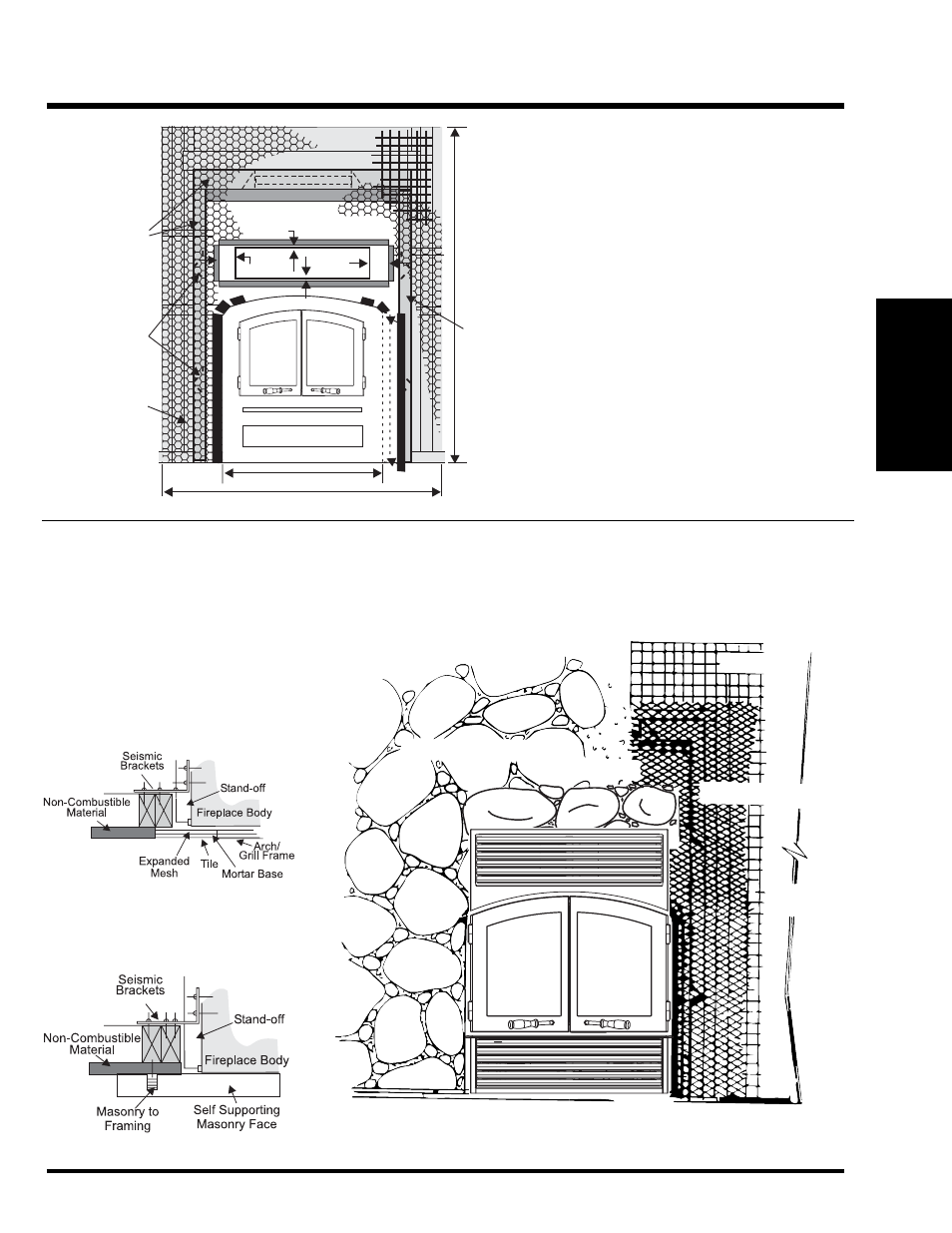

Top View

Example 1:
Face of Fireplace Flush with Wall Framing.

Example 2:
Face of Fireplace Flush with
Non-Combustible.

Top View

Wire Mesh

Mortar

Stone, Tile or Brick

Heavy Expanded Metal

Non-Combustible
Material

Completing The Mantle

A stone mantle may be placed directly above the warm air outlet. If a wood or other combustible
mantle is desired, it must be at least 18 inches above the grill opening and may project up to 10"
(254mm) in front.

INSTALLATION
