FPI FP90 Wood Fireplace

INST

ALLA

TION

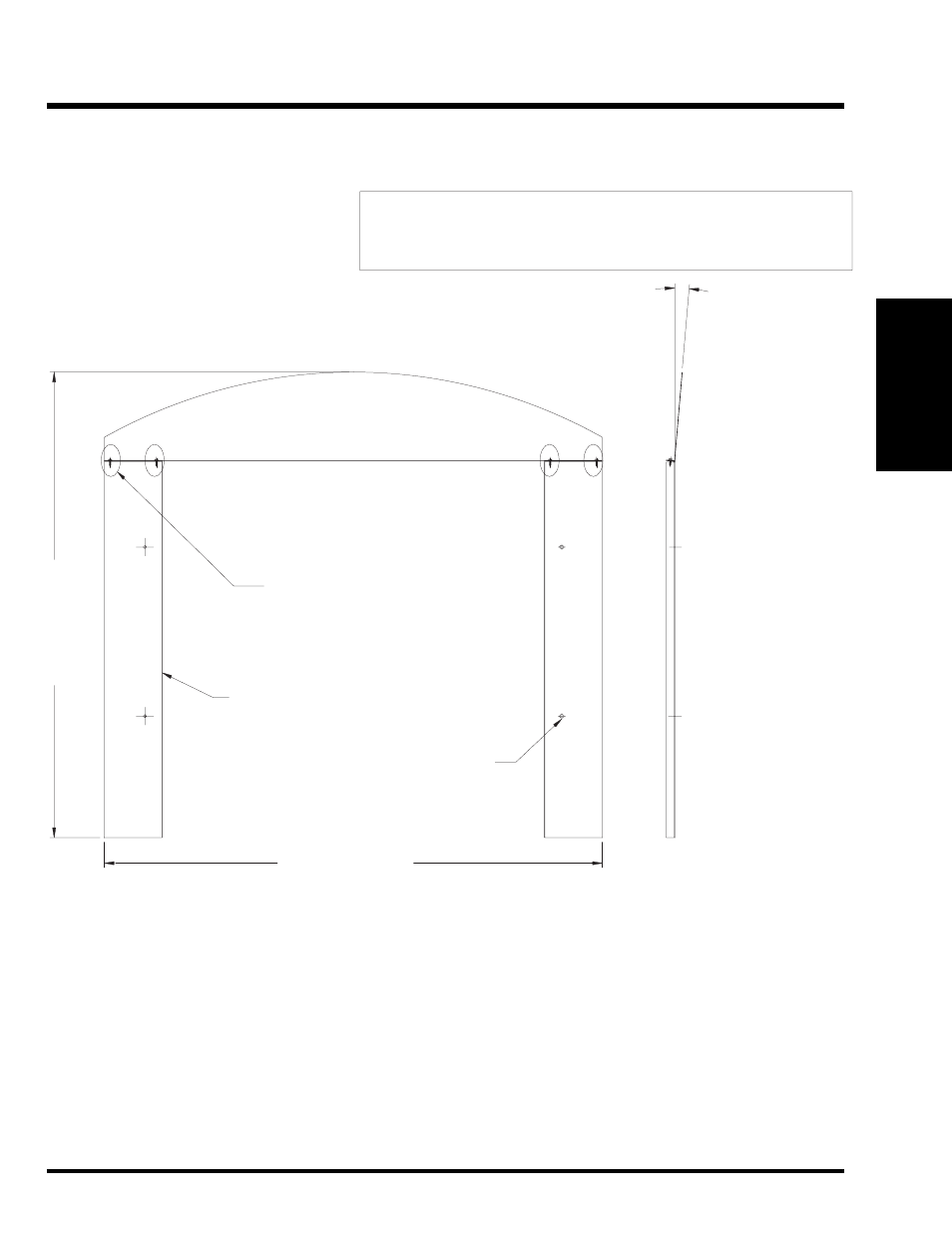

MASONRY COVER PLATE INSTALLATION

5°

INSTALL FOUR #8x1/2 SCREWS
AT THESE LOCATIONS TO ATTACH
THE SURROUND TEMPLATE SIDES
TO THE TOP.

NOTE:
SIDES SHOULD BE ASSEMBLED

FLANGES ARE ON THE

SLOTTED HOLES ON RIGHT SIDE ONLY

43.000" (1092mm)

39.250" (997mm)

ONCE THE TEMPLATE IS MOUNTED CHECK TO MAKE SURE THE SIDES ARE PLUMB AND 43" (1092mm)

IN WIDTH

NOTE:

THE TOP IS ANGLED BACK AT 5 DEGREES
TO ENSURE THAT THE TEMPLATE FITS TIGHT TO THE
UNIT. THE TOP WILL BECOME MORE UPRIGHT AS THE TEMPLATE
IS TIGHTENED TO THE SURROUND MOUNTING BRACKETS

SO THAT THE 3/4" (19mm)

INSIDE OF THE OPENING.

INSTALLATION
