FPI FP90 Wood Fireplace

20

INST

ALLA

TION

Side
Panel

Top
Panel

Insulation

Top
Brick

Bottom
Vermiculite

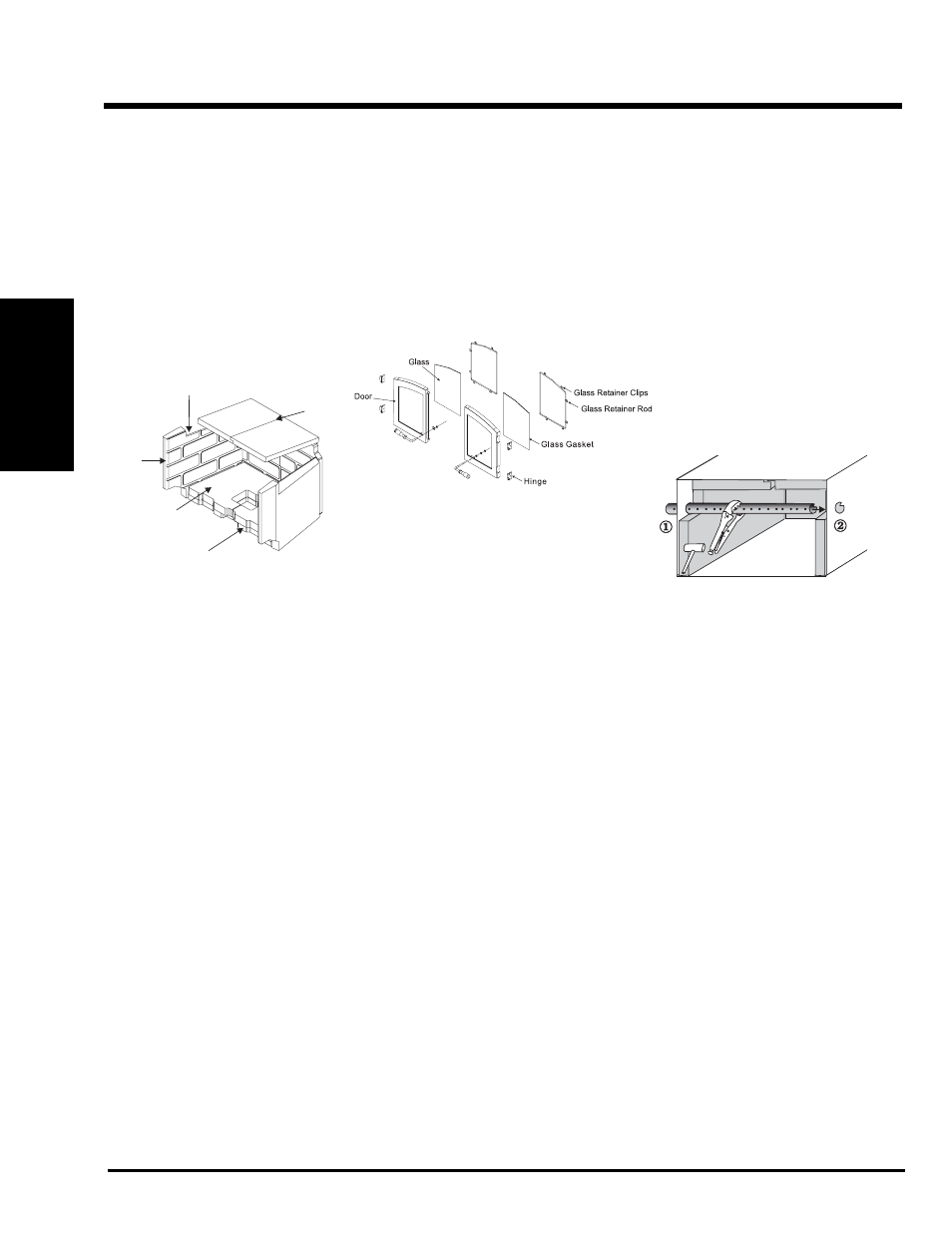

MASONRY LINER /

BRICKS

Insulated refractory panels are included to
extend the life of the fi replace and help radiate
heat more evenly. Make sure Insulating Paper
is in place along the bottom, side and rear before
bricks are put into place.

Using the diagram to fi nd the correct location
of the panels install in the following sequence:
rear, sides, bottom, top. Care should be taken
not to damage the panels during installation. THE
ANDIRONS SHOULD NOT BE REMOVED.

SECONDARY AIR TUBE

INSTALLATION

1) Slide air tube into the hole on the left hand

side of the fi rebox as far as it will go. The
notch in the air tube should be facing the
right hand side of the fi rebox.

2) Slide the air tube back towards the right side

until it locks into place. To lock into position,
use a pair of vise grips and tap them with a
mallet until the tube locks into place. The air
holes should be pointing down toward the
primary air opening just inside the bottom
of the door opening. The air tube will be
diffi cult to snap into place because it has
to be a snug fi t in order to prevent it from
falling out when a fi re is burning.

GLASS

INSTALLATION

Remove the wire retainer from the doors, and
place the glass in the doors, making sure that
the glass gasketing will properly seal your unit.
The retainer should be resting on the gasketing
not on the glass. Tighten securely, but do not
wrench down on the glass as this may cause
breakage. Do not substitute materials. If your
glass door breaks, do not use your unit until it
has been replaced.
