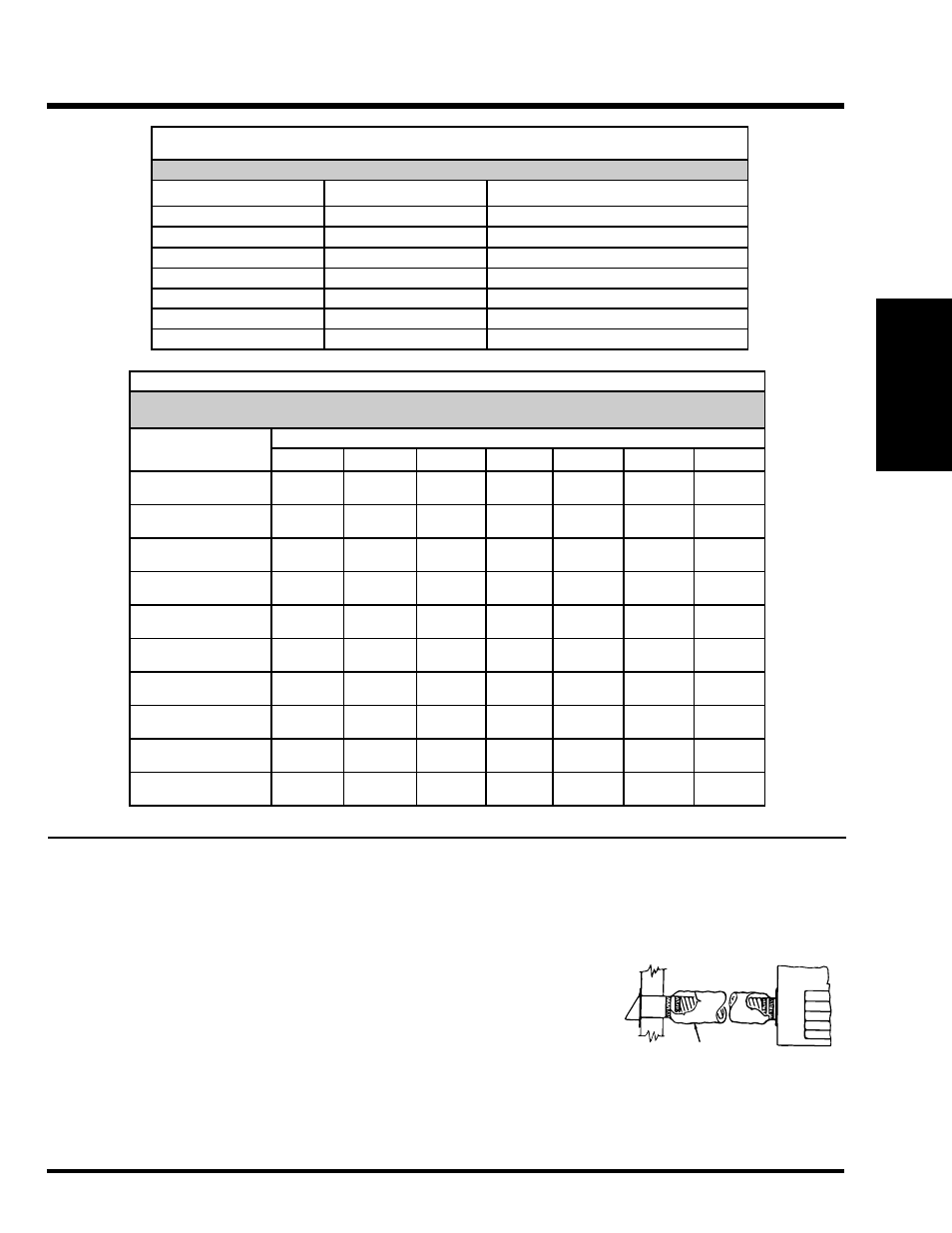

background image

FPI FP90 Wood Fireplace

15

INST

ALLA

TION

INSTALLING THE

OUTSIDE AIR KIT

Combustion air is fed to the fi rebox through a
connection on the rear lower left side of the unit.
A free fl owing supply of air must be available to
this opening at all times. Combustion air may be
taken from inside the building if the local building
code allows, but performance may suffer. Also,
it must go through the 6" (152mm) duct to the
connection on the left hand side.

Air drawn from the interior of the building will
affect the performance of gas or oil furnaces,
and exhaust fans and fan driven appliances.
This may cause a negative pressure in the
house allowing smoke to back into the home.

Outside Air Inlet must be 6 ft. (152mm) below

the chimney termination point

Insulated Metal

6” Duct

Exterior

Wall

Outside

Metal

Vent

Side Connection

Unit

The preferred source of combustion air is from
outside the building. If possible, install the kit
on the wind loading side of the building not the
leeward or (negative pressure) side.

Note: Do not obtain combustion air from

attic, garage or other enclosed
space.

1) Put the supplied insulated air duct to a nearby

exterior wall. Maximum length of duct is 20ft
(6.1m). Duct length should be kept to a
minimum and as straight as possible. Note:
4 ft. only is supplied with unit. Termination
should be in an area with good air fl ow.

2) Ensure that your air source is not close to

automobile exhaust, gas meters or other
vents.

3) Cut a 7" (178mm) hole through the wall and

mount the outside air kit.

4) Attach the two ends of the duct (making

sure not to damage the insulating cover)
after installing the fl ange on the fi replace
side. Duct must be secured by screws or
clamp.

INSTALLATION

TABLE 1

Required Firestop, Radiation Shield, Or Attic Insulation Shield

Model

1st Floor

2nd Floor into Attic

CF Sentinal

Intermediate Joist Shield

Attic Insulation Shield

Super Pro 2100+

Attic Insulation Shield

Attic Insulation Shield

Super Vent 2100+

Attic Insulation Shield

Attic Insulation Shield

Security S2100+

Radiation Shield Fire Stop

Insulation Radiation Shield Attic Radiation Shield

Oliver Macleod Project HT6000+

Radiation Shield Fire Stop

Insulated Attic Radiation Shield

Simpson DuraPlus HTC

Fire Stop Radiation Shield

Attic Insulation Shield

ICC Excel 2100

Radiation Shield

Radiation Shield with Storm Collar

TABLE 2

Minimum Recommended Flue Height In Feet

(Measured from the top of the solid fuel appliance)

ELEVATION (FT)

ABOVE SEA LEVEL

# OF ELBOWS

0

2 x 15

o

4 x 15

o

2 x 30

o

4 x 30

o

2 x 45

o

4 x 45

o

0ft - 1000ft

(0m - 305m)

12.00ft

(3.66m)

13.00ft

(3.96m)

14.00ft

(4.27m)

15.0ft

(4.57m)

18.00ft

(5.49m)

16.00ft

(4.88m)

20.0ft

(6.10m)

1000ft - 2000ft

(305m - 610m)

12.48ft

(3.80m)

13.52ft

(4.12m)

14.56ft

(4.44m)

15.6ft

(4.75m)

18.72ft

(5.71m)

16.64ft

(5.07m)

20.0ft

(6.10m)

2000ft - 3000ft

(610m - 914m)

12.96ft

(3.95m)

14.04ft

(4.28m)

15.12ft

(4.61m)

16.2ft

(4.94m)

19.44ft

(5.93m)

17.28ft

(5.27m)

21.6ft

(6.58m)

3000ft - 4000ft

(914m - 1219m)

13.44ft

(4.10m)

14.56ft

(4.44m)

15.68ft

(4.78m)

16.8ft

(5.12m)

20.16ft

(6.14m)

17.92ft

(5.46m)

22.4ft

(6.83m)

4000ft - 5000ft

(1219m - 1524m)

13.92ft

(4.24m)

15.08ft

(4.60m)

16.24ft

(4.95m)

17.4ft

(5.30m)

20.88ft

(6.36m)

18.56ft

(5.66m)

23.2ft

(7.07m)

5000ft - 6000ft

(1524m - 1829m)

14.40ft

(4.39m)

15.60ft

(4.75m)

16.80ft

(5.12m)

18.0ft

(5.49m)

21.60ft

(6.58m)

19.20ft

(5.85m)

24.0ft

(7.32m)

6000ft - 7000ft

(1829m - 2134m)

14.88ft

(4.54m)

16.12ft

(4.91m)

17.36ft

(5.29m)

18.6ft

(5.67m)

22.32ft

(6.80m)

19.84ft

(6.05m)

24.8ft

(7.56m)

7000ft - 8000ft

(2134m - 2438m)

15.36ft

(4.68m)

16.64ft

(5.07m)

17.92ft

(5.46m)

19.2ft

(5.85m)

23.04ft

(7.02m)

20.48ft

(6.24m)

25.6ft

(7.80m)

8000ft - 9000ft

(2438m - 2743m)

15.84ft

(4.83m)

17.16ft

(5.23m)

18.48ft

(5.63m)

19.8ft

(6.04m)

23.76ft

(7.24m)

21.12ft

(6.44m)

26.4ft

(8.05m)

9000ft - 10000ft

(2743m - 3048m)

16.32ft

(4.97m)

17.68ft

(5.39m)

19.04ft

(5.80m)

20.4ft

(6.22m)

24.48ft

(7.46m)

21.76ft

(6.63m)

27.2ft

(8.29m)
