Location of Controls
PLAY
STOP
PAUSE
RECORD
POWER
EJECT
INPUT
TV • VCR
TRACKING
CHANNEL
VIDEO IN
AUDIO IN
R
L
M
O
N
O
R E W
F W D
AUDIO IN L•MONO and R Jacks
Receives audio signals from another
component, like a VCR or camcorder
when it is connected to these jacks.
Attach a component that is not stereo to
the L•MONO jack to hear sound on both
channels.
Select L2 to record from these jacks.
CHANNEL/ TRACKING Up or Down
Selects next higher or lower channel in
the VCRÕs channel memory.
Adjusts tracking when a tape is playing.
EJECT
Press when the VCR is stopped to eject
the cassette.
INPUT
Turns the line input on or off. L1 or L2
appears in VCRÕs display panel and
VIDEO1
or VIDEO2 appears on the TV
screen.
Line input refers to the signal coming
from the component connected to the
audio/video input jacks on the back (L1)
or front of the VCR (L2).
PAUSE
Pauses action for viewing during
playback.
Pauses recording to prevent recording of
unwanted scenes.
PLAY
Plays a tape.
POWER
Turns the VCR on or off.
RECORD
Starts VCR recording.
Used for express recording (XPR).
Remote Sensor
Receives signals from the remote control.
Aim the remote at this sensor with no
objects between them.
Shuttle Dial
Rewinds and fast forwards the tape when
the VCR is stopped.
Plays the picture in variable-speed slow
motion during play pause.
Searches the picture in forward and
reverse during playback.
STOP
Stops the normal functions such as record,
playback, rewind, fast-forward, or pause.
TV•VCR
Switches the picture signal so that it either
comes from the VCR or the TV channel.
See page 18.
VIDEO IN Jack
Receives video signals from another
component, like a VCR or camcorder,
when it is connected to this jack.
Select L2 to record from this jack.

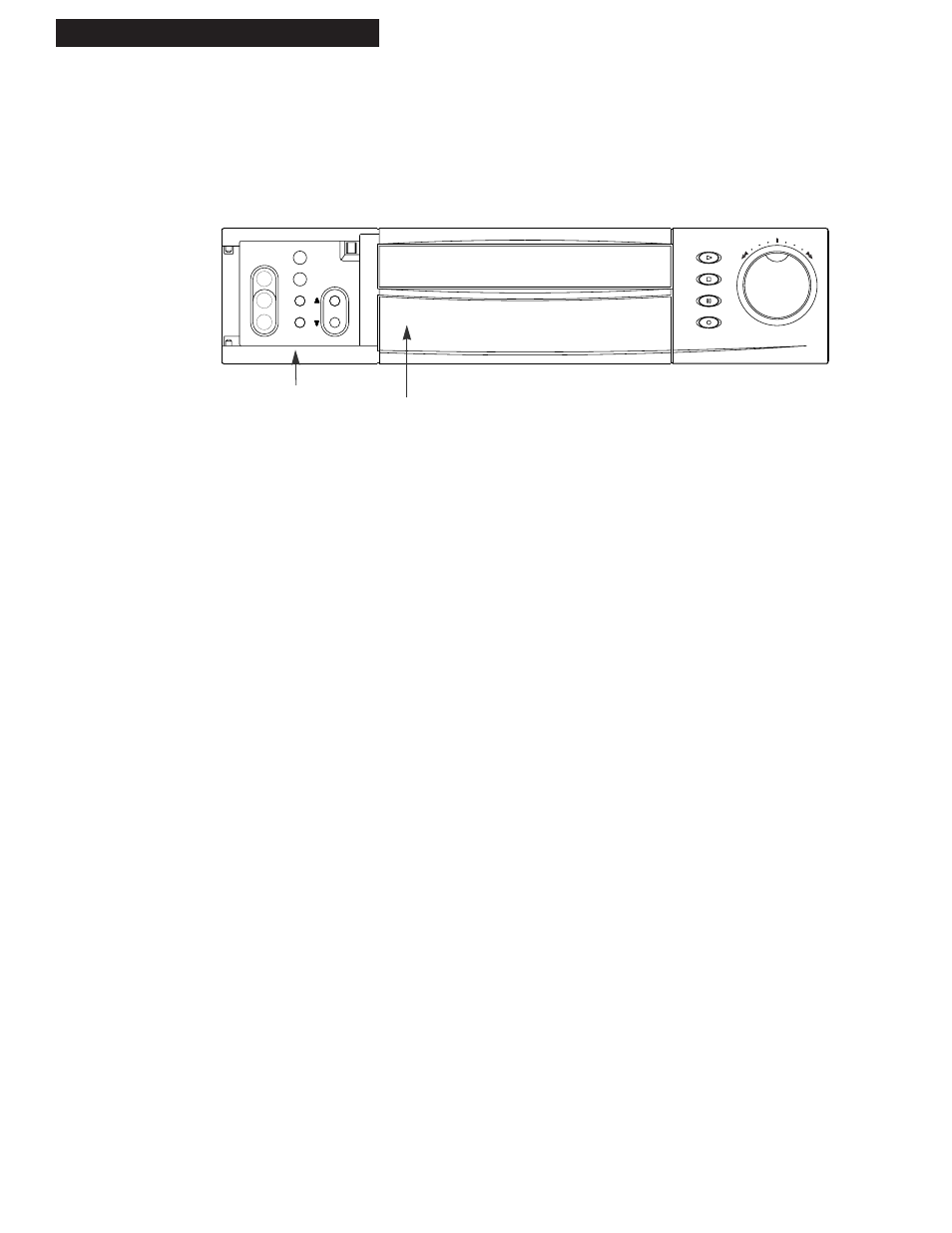

Front Panel
Tape Compartment
Remote Sensor
Control Door
Open
