8 U35 FPI Direct Vent Gas Insert
MINIMUM CLEARANCES TO COMBUSTIBLES
From Unit
Sides A 8" / 203 mm
Ceiling B 34" / 834 mm
From Standard Surround 31-1/8" x 44-1/8" (791mm x 1121mm)
Sides
D 1-15/16" / 49 mm
Ceiling E 28-7/8" / 733 mm
Max. Mantel Depth G 12" / 305 mm
Min. Alcove Width K 48" / 1220 mm
Max. Alcove Depth L 36" / 915 mm
* No Hearth Required

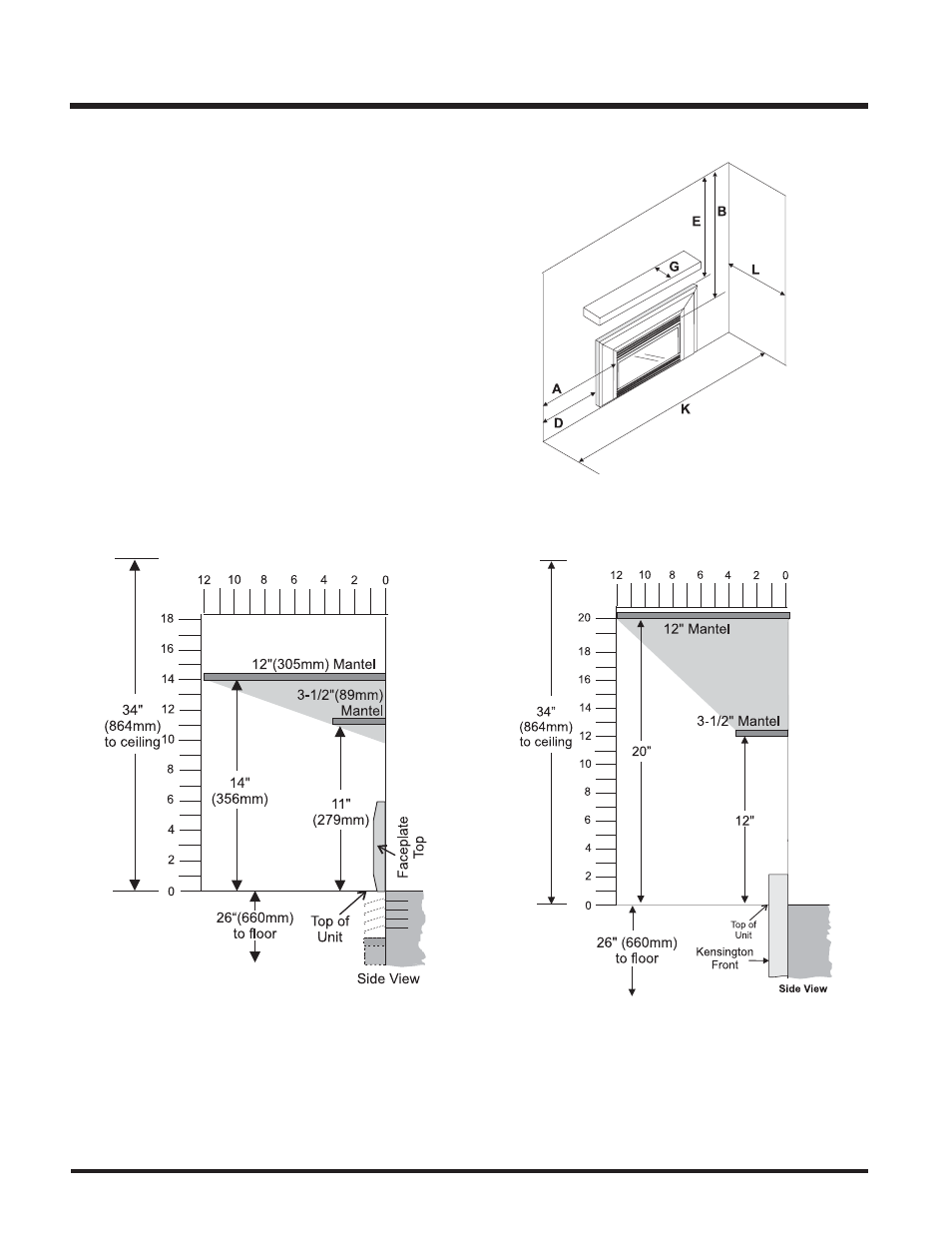

REGENCY BAY & FLUSH
COMBUSTIBLE MANTEL CLEARANCES
KENSINGTON FRONT
COMBUSTIBLE MANTEL CLEARANCES
Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Because of the extreme heat this insert emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the above diagrams.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible
board.
