U35 FPI Direct Vent Gas Insert

MAINTENANCE

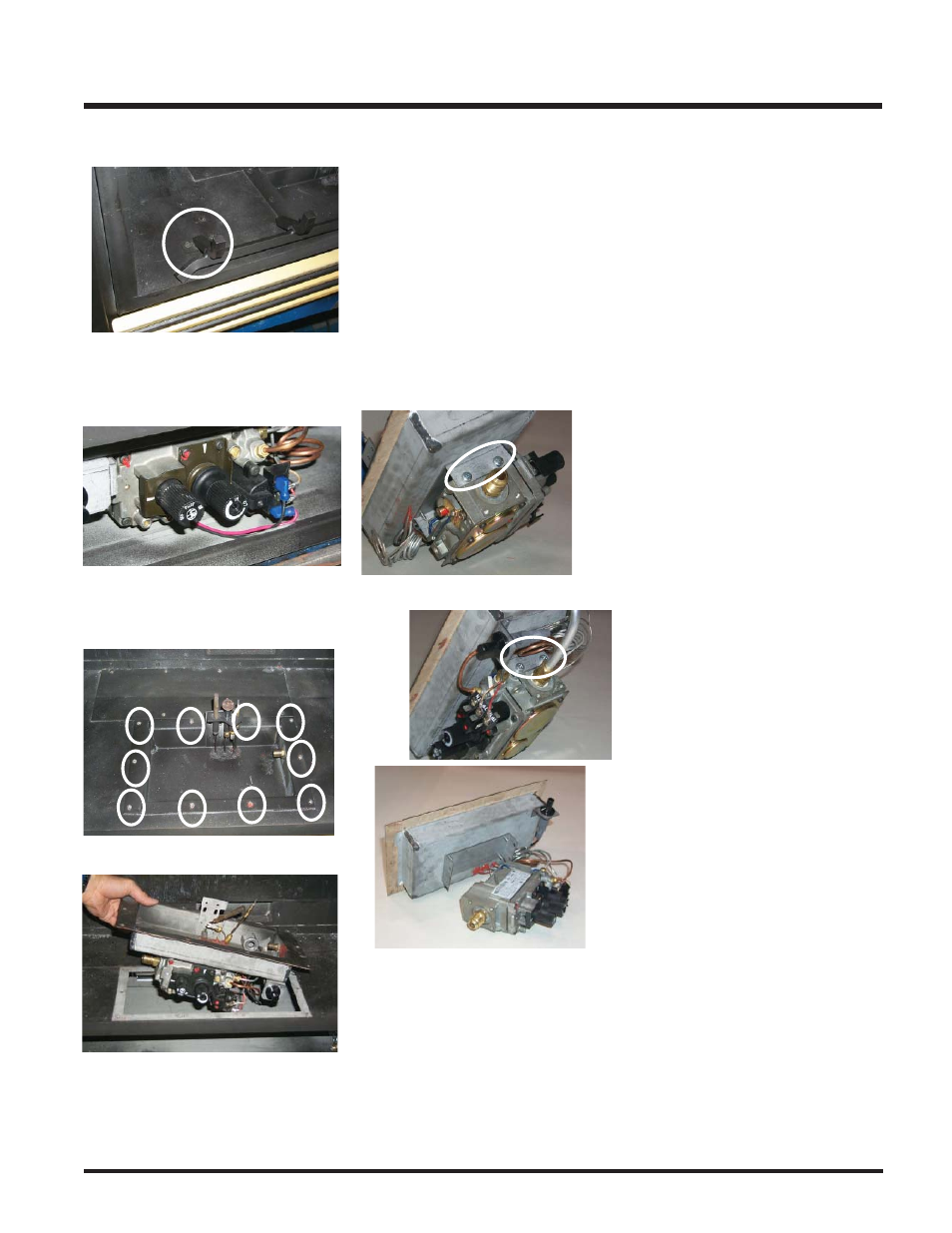

INSTALLING VALVE

1) Attach the valve to the valve bracket with

the 4 (m5x8 metric) screws provided.

2) Reconnect the "gas out" fl are fi tting with

an 11/16" wrench.

3) Reconnect the "gas out" fl are nut with a

13/16" wrench.

4) Install piezo ignitor push button assembly

and reconnect wire.

5) Reconnect the quick drop out thermocouple

nut with a 9mm wrench.

6) Reconnect the pilot tube nut with a 7/16"

wrench.

7) Scrape off the old gasket from the fl oor

of the fi rebox and from the valve access
plate.

8) Install a new gasket and reinstall the valve

assembly.

Note: Failure to install a new gasket

may severely affect the appliance
performance.

9) Reinstall the 10 hold down screws.

10) Hook up the 2 TP and 2 TH wires to the

appropriate connections on the valve.

11) Reinstall the Front Grate.

12) Attach the burner cap to the burner tube

and secure with the screw on the back of
the cap.

13) Install Burner/Rear Log Support assembly

and secure with the 8 screws.

14) Hook up the gas line and check for gas

leaks with a soap and water solution or a
gas leak detector. (Do not use open fl ame
for leak testing.)

15) Fire up the unit temporarily

16) Check the manifold pressure.

17) Reinstall the logs and brick panels as

needed.

18) Close the door and replace the louvers.

19) Fire up the unit again and check for proper

fl ame appearance and glow on logs.

12) Undo the pilot tube from the valve with a
7/16"

wrench.

13) Undo the quick drop out thermocouple nut

on the valve with a 9mm (metric) wrench.

14) Remove the Piezo ignitor wire and push

button assembly.

15) Undo the "gas out" fl are nut with a 13/16"

wrench.

16) Undo the "gas out" fl are fi tting with an 11/16"

wrench.

17) Remove the 4 Phillips head screws from

the sides of the valve bracket and remove
valve.

Hint: If you are using black pipe, ensure that

there is a union by the valve, otherwise
removal will be almost impossible.

Left

Valve

Bracket

Right

Valve

Bracket

8) Remove the Front Grate by removing the 2

screws.

9) Disconnect the inlet gas line.

10) Disconnect the 2 TP wires and the 2 TH

wires from the valve.

11) Remove the 10 Phillips head screws

securing the valve access plate in place
and then lift the entire assembly out.
