U35 FPI Direct Vent Gas Insert
Rear View: Trim Assembly
Diagram 2
Rear View: Faceplate Assembly
Diagram 1
FACEPLATE & TRIM
INSTALLATION

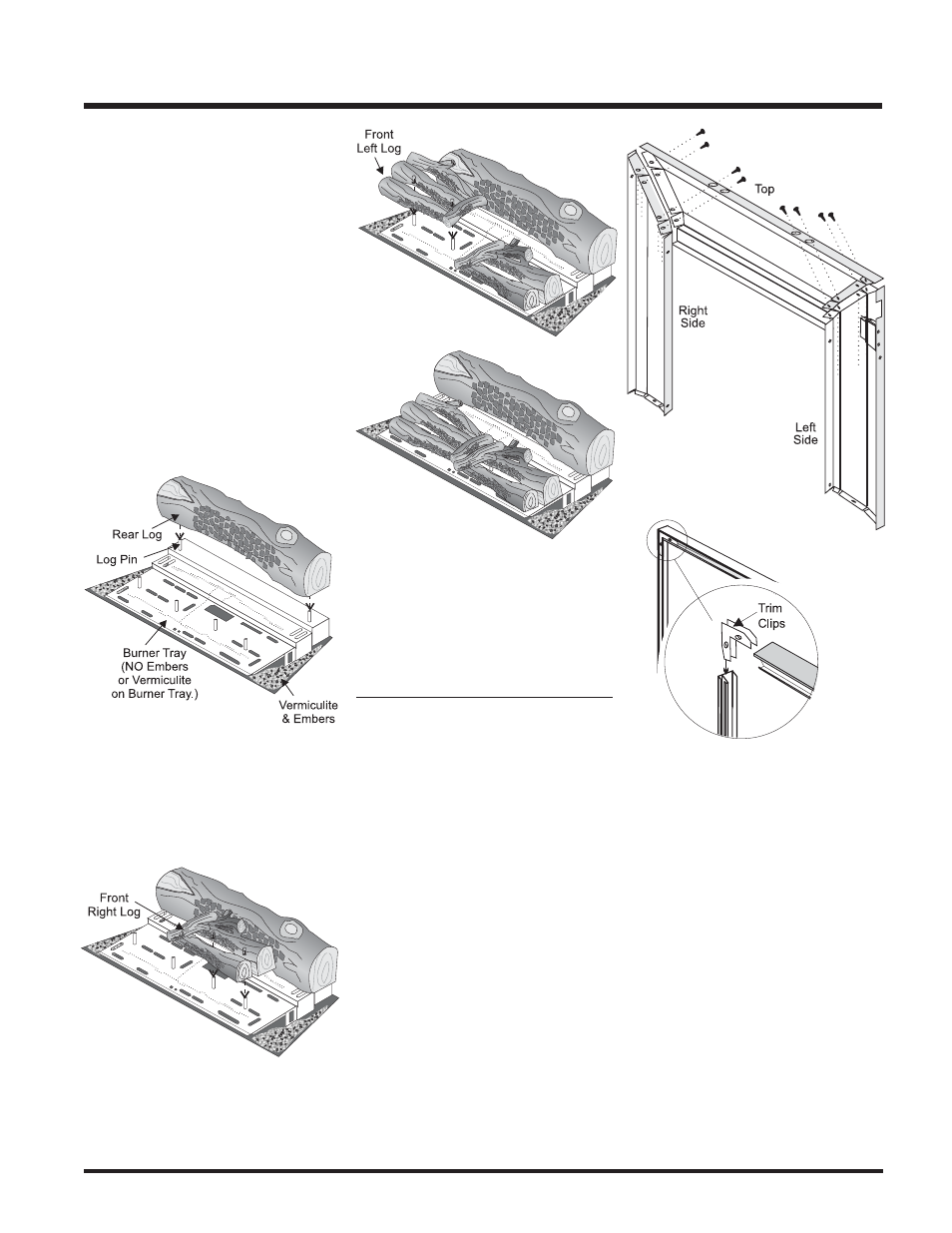

1) Lay the faceplate panels fl at, face down on
something soft so they don't scratch.
2) Take the top faceplate and align the holes in
it with the holes in the side panels. Using the
screws provided, attach from the top of the
panel (the holes in the top panel are slightly
larger than the holes in the side panel to
facilitate easier installation). Diagram 1.
Hint: Don't tighten the screws down
completely at this point, continue on with
steps 3 and 4 and do a trial fi t to the unit.
Make any necessary adjustments and when it
fi ts properly then tighten down the screws.
3) Using the connectors provided, join the left
side trim (with the ON/OFF switch) to the top
trim. Diagram 2. Connect the right side trim
to the top trim.
4) Place the trim on the assembled faceplate
panels, aligning the wire connections from
the switches with the notch on the left side
panel.
5) Connect the fan switch wires by taking the
black and red wires with the male ends (in
the grey harness) and connect them with
the wire connectors from the fan speed
control.
6) Connect the ON/OFF switch wires by taking
the black and red wires with the female ends
and connect them to the ON/OFF switch.
7) Tuck the wires into the faceplate to keep
them away from the insert using the clip
provided. Attach the clip to the rear of the
faceplate to ensure that the wires do not
touch the side of the unit.
Diagram 3.
8) The power cord should be run behind the
faceplate panel.
INSTALLATION
LOG INSTALLATION
WARNING: Dangerous operating
conditions may occur if these logs
are not positioned in their correct
certifi ed locations. Read the following
instructions carefully and refer to the
attached diagram.
1) Remove the logs from the box and carefully
unwrap them. The logs are fragile, handle
with care. Do not force into position.
2) Sprinkle the vermiculite and ember on the
sides of the fi rebox base.
3) Place the rear log on the rear log support at
the back of the unit with the fl at side of the
log facing the back of the unit. Gently push
the log down onto the pins.
4) Place the front logs in the unit, aligning
the holes on the underside of the logs with
the log support pins in the front of the unit.
Carefully push the logs down onto the pins.
(Hint: Install the front right side fi rst.)
6) Install the door and louvers
.
5) Separate platinum embers (supplied with
packaged manual) and spread loosely in
front of and inbetween the front logs and
in front of the rear log on the burner. Avoid
stacking platinum embers.
