U35 FPI Direct Vent Gas Insert
Burner/Rear Log Support Assembly: After
removing the screws slide to the left to
remove the assembly from the fi rebox base.
Left Side Burner
Bracket
Burner Orifi ce
Lift Burner/Rear Log Support assembly up
and away from the burner orifi ce.
MAINTENANCE
2) Unplug or disconnect power source to
stove.
3) Remove glass front (See the "Standard Flush
Door" section).
4) Remove logs.
5) Remove brick panels, if used.
6) Straighten the adjustment wire under the
fi rebox base.
FAN MAINTENANCE
If your fan requires maintenance or replacement,
access to the fan is through the plate on the
fl oor of the fi rebox. NOTE: the unit MUST NOT
be operated without the fan access panel
securely in place.
Caution: Label all wires prior to
disconnecting when servicing controls.
Wiring errors can cause improper and
dangerous operation. Verify proper
operation after servicing.
To Remove Fan:
1) Turn the unit off and allow it to cool to room
temperature.

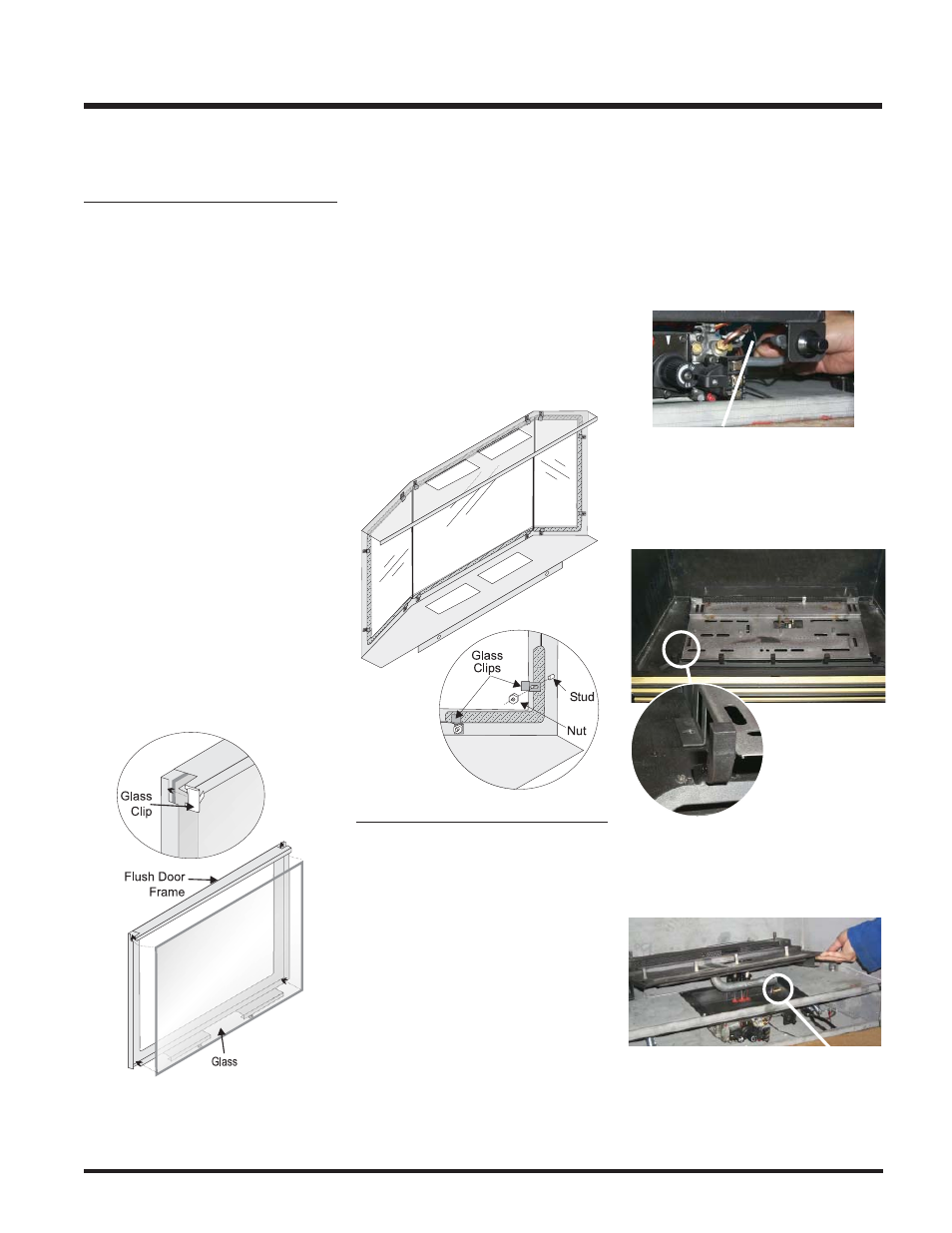

Bay Glass Replacement
1) Remove the door from the unit and place
on a soft surface to prevent scratching.
2) Remove the nuts holding the glass clips in
place and remove.
3) Replace the glass. The glass must have
gasketing around it.
5) Reverse the previous steps, replace the
glass clips and fasten with the nuts but
do not over tighten, as this can break the
glass.
6) Replace door on the stove and check the
seal.
Straighten adjustment wire.
7) Remove the Burner/Rear Log Support
assembly by removing the 2 screws (1 on
each side) and sliding the assembly to the
left to free the bottom brackets from the
screws on the fi rebox base.
8) Lift the Burner/Rear Log Support assembly
up and away from the orifi ce.
9) Remove the 8 screws holding the Access
Panel in place.
DOOR GLASS
Your FPI insert is supplied with high temperature,
5 mm Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. Do
not abuse the glass by striking the surface or
by slamming the door shut.
If your glass requires cleaning, we recommend
using an approved glass cleaner available at
all authorized dealers. Do not use abrasive
materials. Do not clean the glass when
hot.
In the event that you break your glass by
impact, purchase your replacement from an
authorized FPI dealer only, do not use substitute
materials. Follow our step-by-step instructions
for replacement. Caution: Wear gloves when
removing damaged or broken glass.
Warning: Do not operate appliance with
glass panels removed, cracked or broken.
Replacement of the glass should be done by
a licensed or qualifi ed service person.
Flush Glass Replacement
Remove the fl ush door front. Remove the 4
glass clips from each corner. Slide in the new
replacement glass. Push the 4 glass clips back
onto the frame.
Clean any fi ngerprints off before turning the
unit on. If the top louvers start to discolour,
check the door gasket seal and replace if
necessary.
