8

Panel Descriptions

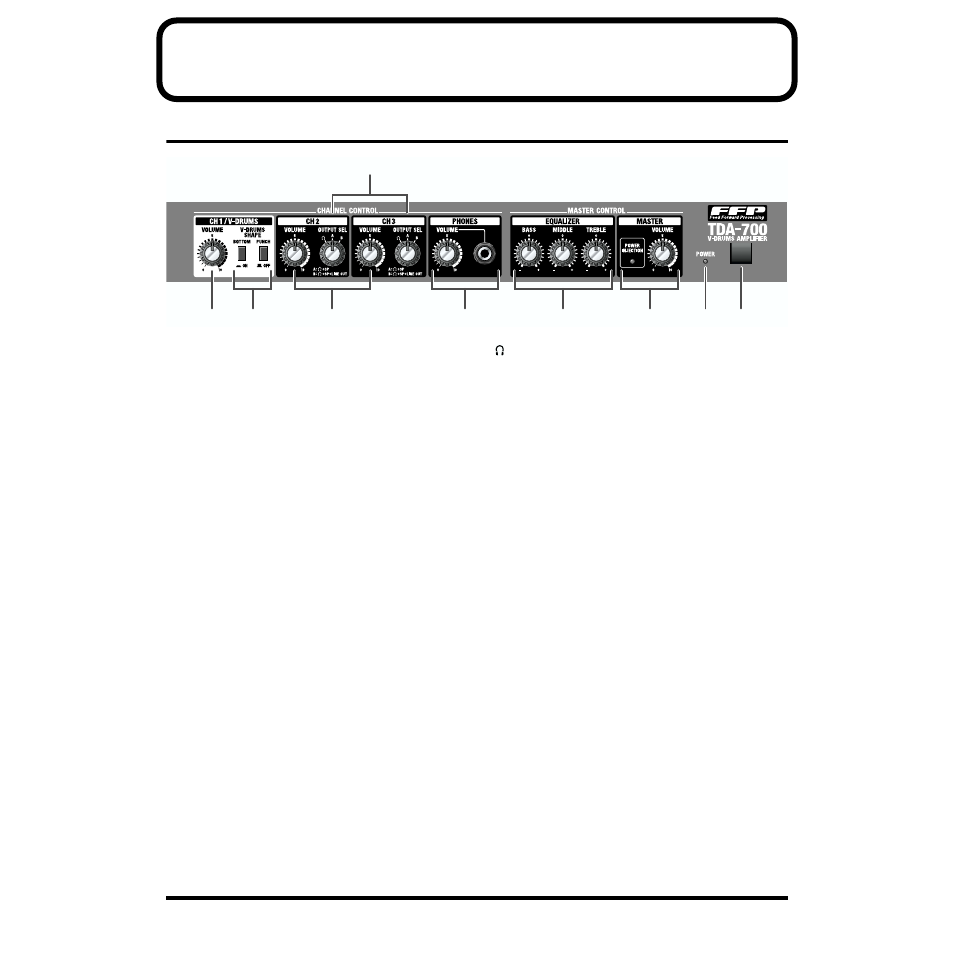

Front Panel

fig.20

CHANNEL CONTROL .............

* When using in “Stereo Link” (p. 14) configuration, the controls

explained here work only on the main unit.

CH 1/V-DRUMS

1. VOLUME Knob

Sets the volume for CH1.

Rotating the knob clockwise increases the volume.

2. V-DRUMS SHAPE Switch

Setting this switch to ON lets you apply distinctive sound

qualities to the signal input to CH 1 L, CH 1 R, or V-DRUMS

IN.

BOTTOM Switch

Setting this to ON lets you boost the vividness of the low

end.

PUNCH Switch

Setting this to ON lets you shape the contour of the midrange

and high-end.

* This does not work on Channel 2 or 3.

CH 2 or CH 3

3. VOLUME Knobs

Sets the volume for each channel.

Rotating a knob clockwise increases the volume.

4. OUTPUT SEL (output select) Switch

This knob allows you to select the output destination for

signals input to Channel 2 and 3.

:

Select this position when you wish to listen to guide

clicks or a drum machine (for example) through

headphones, without output to the internal or any

external speakers.

A:

Output is through the headphones and the internal

speakers. No signals are output to Line Out. This can be

a handy function when you want to use the amplifier as

a fold back monitor during a live performance.

This is effective in preventing the loop noise that may

occur at times such as when the input (Channel 2 or 3)

and Line Out on the TDA-700 are both connected to a

mixer.

B:

Output is through the headphones, the internal

speakers, and Line Out.

5. PHONES

PHONES Jack

This is for connecting headphones.

* Before plugging in or unplugging headphones, be sure to place

the

PHONES VOLUME

knob at 0.

* The

V-DRUMS SHAPE

Switch, EQUALIZER, and MASTER

do not affect the headphone output.

PHONES VOLUME Knob

This knob adjusts the headphone volume.

This control does not affect LINE OUT and speaker output.

* The amplifier’s speakers work even when headphones are

connected.

8

1

9

2

5

7

6

4

3
