Connect your TDA-700

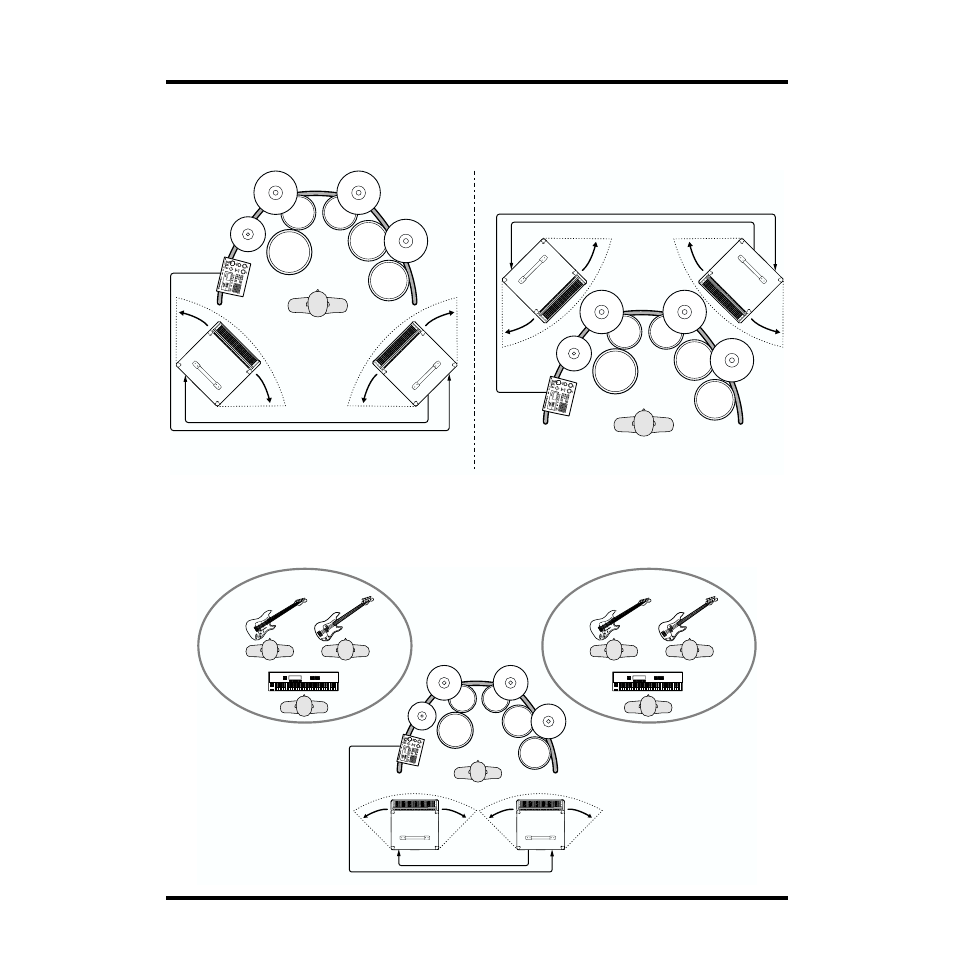

The following shows the placement of V-Drums KIT and the TDA-700 in a Stereo Link configuration.
●
When using TDA-700 as a personal monitor . . . . . . . . . . . . . . . . . . . . . . . . . . .
Place the main unit to your right. Try several positions and angles until you find the most comfortable setup.
●
When using TDA-700 as a monitor for the whole band . . . . . . . . . . . . . . . . . . .
Place the main unit to your right. Try several positions and angles until you find a setup that is good not only for yourself, but for
other players as well.
LINK OUT
CH 1/V-DRUMS IN
LINK IN
LINK OUT
CH 1/V-DRUMS IN
LINK IN
TDA-700
Main (R-ch signals)
TDA-700
Sub (L-ch signals)
TDA-700
Main (R-ch signals)
TDA-700
Sub (L-ch signals)
Other Players
Other Players
LINK OUT
LINK IN
TDA-700
Main (R-ch signals)
TDA-700
Sub (L-ch signals)
CH 1/V-DRUMS IN
