14
Connect your TDA-700
Stereo Link
Stereo playback is enabled simply by connecting two TDA-700 units with a single audio cable (phone type).
This function is called “Stereo Link.” As the channel control section is designed to accept stereo signals, connection of sound
sources is needed only at the main unit, thus enabling channel volumes to be centrally controlled on the main unit.
The right-channel signals are output from the speakers in the main unit, while the left-channel signals are output from the
speakers in the sub unit (the other TDA-700).

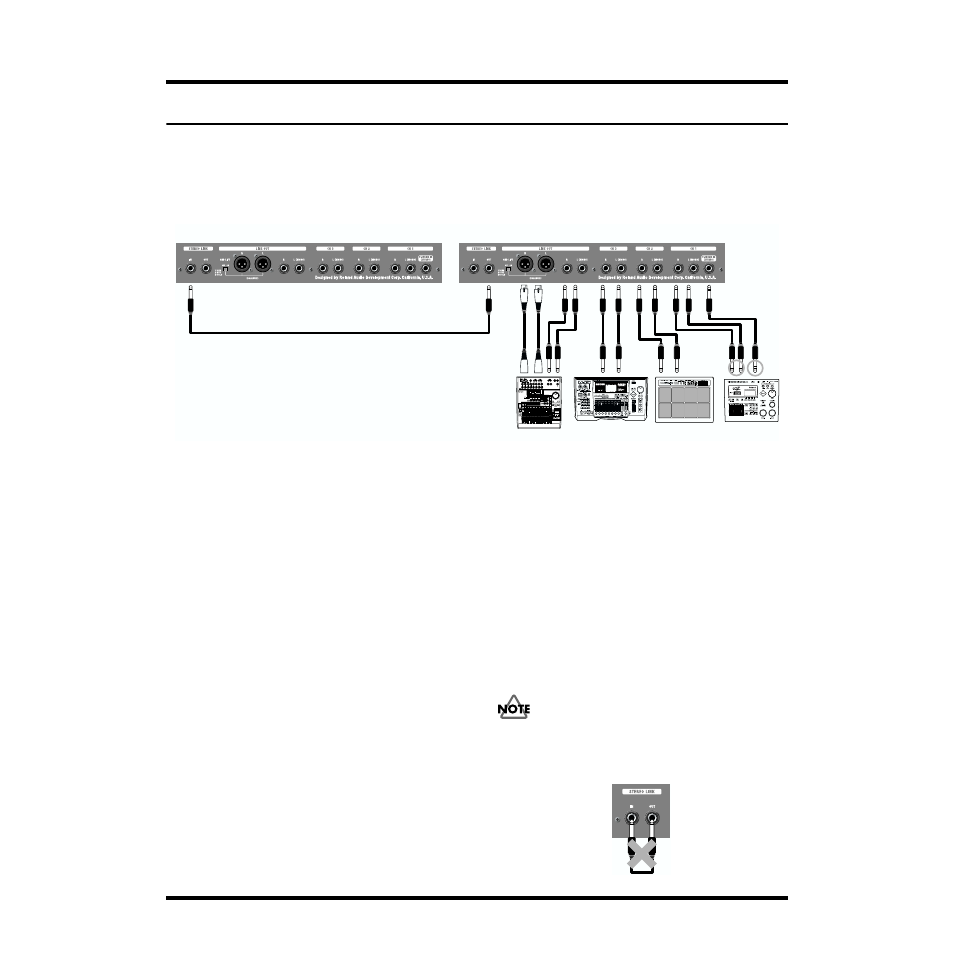

fig.30-2
Connections
When using a Stereo Link configuration, connect all
peripheral equipment to the main unit. On the sub unit, the
only functional input/output jack is STEREO LINK IN.
* Before making the connections, be sure that the volume setting
of the MASTER VOLUME knob for both amplifiers is set to
“0.”
Switching the power on or off
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
1. Turn on V-Drums sound module and other sound
sources connected to CH 1–3.
2. Turn on the main TDA-700 amplifier.
3. Turn on the sub TDA-700 amplifier.
4. Turn on the device connected to LINE OUT.
5. Adjust the volume levels on all devices.
Before switching off the power, lower the volume on each of
the devices in your system, then TURN OFF the devices in
the reverse order of that used when switching them on.
In performance
In stereo link configuration, adjust volumes with VOLUME
knobs in CH 1–CH 3 of the main unit.
* The CH 1–CH 3 VOLUME knobs of the main unit affect both
the left and right units.
* CH 1–CH 3 VOLUME and V-DRUMS SHAPE are controlled
on the main unit. The sub unit does not respond to these controls.
* CH 1–CH 3 VOLUME and V-DRUMS SHAPE of the sub unit
are independent of the main unit.
Basically, these controls should be set to the same position.
However, depending on the conditions, you may want to adjust
each unit so as to better suit the situation.
The output from STEREO LINK OUT on a device must never
be input to the STEREO LINK IN on the same device. Doing
so may damage the unit.
fig.30-3
OUT IN
Sub (L-channel signals) Main (R-channel signals)
Mixer
Percussion Pad V-Drums
Sound Module
or
Recorder
or
PHONES MASTER
