12

Connect your TDA-700

Volume settings when using V-Drums sound module

For best possible sound quality, set the volume of the V-Drums sound module and TDA-700 as follows.

1. When PHONES on the V-Drums sound generator is

connected to the TDA-700’s

V-DRUMS IN

, set the V-

Drums generator’s PHONES VOLUME to the center

position.

When the V-Drums sound generator’s MASTER

OUTPUT is connected to the TDA-700’s

CH 1 INPUT

,

set the V-Drums MASTER VOLUME to the maximum

position.

2. Set the TDA-700

CH1 VOLUME

to the center “5”

position.

3. Adjust the TDA-700’s

MASTER VOLUME

to determine

the overall volume level.

* If the POWER INJECTION indicator turns red quite often,

lower

MASTER VOLUME

until it turns red only

occasionally.

* If other sound sources are connected to CH 2, CH 3, adjust the

CH2, CH3 VOLUME

also.

4. Adjust the tone to your liking using the

V-DRUMS

SHAPE

Switch and the EQUALIZER.

* If you hear distortion after the adjustment, lower the

CH1

VOLUME

or V-Drums VOLUME until the distortion is gone.

* Above also applies to cases with other sound sources connected

to CH2, CH3. In that case, lower the

CH2, CH3 VOLUME

or

VOLUME at the sound source.

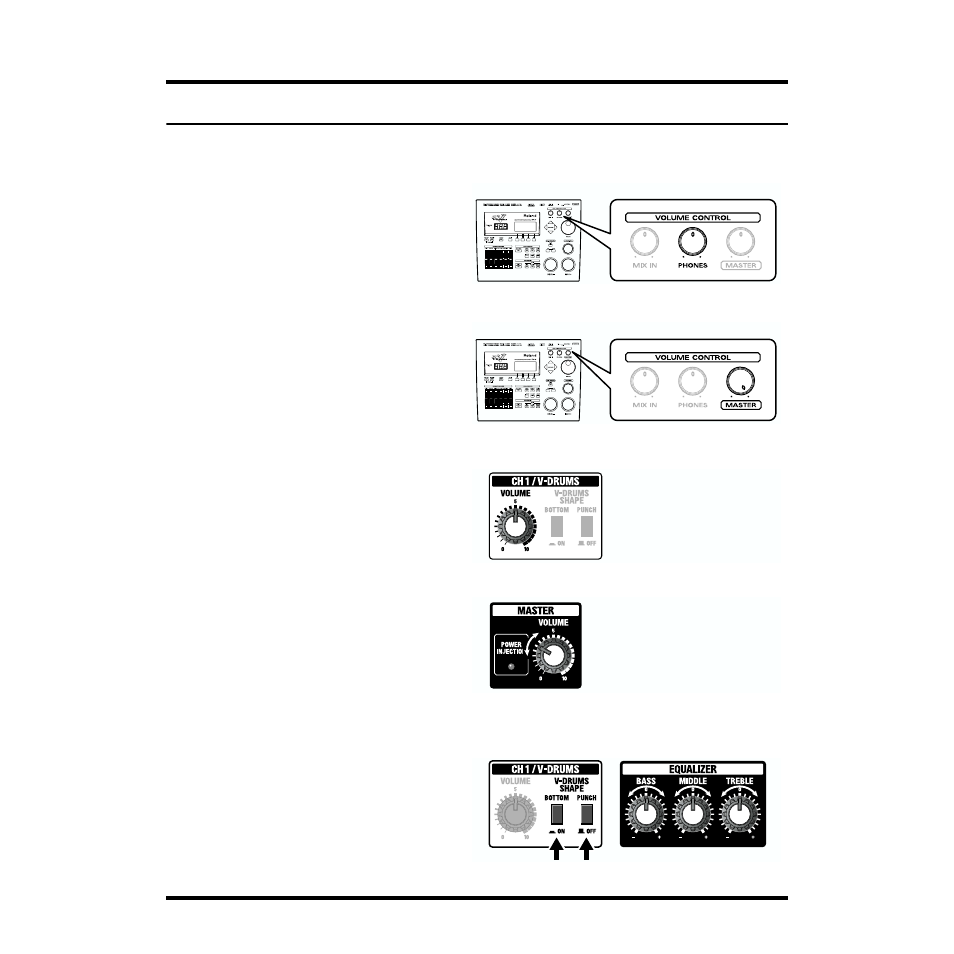

• V-Drums PHONES connection

• V-Drums MASTER connection
