Connect your TDA-700

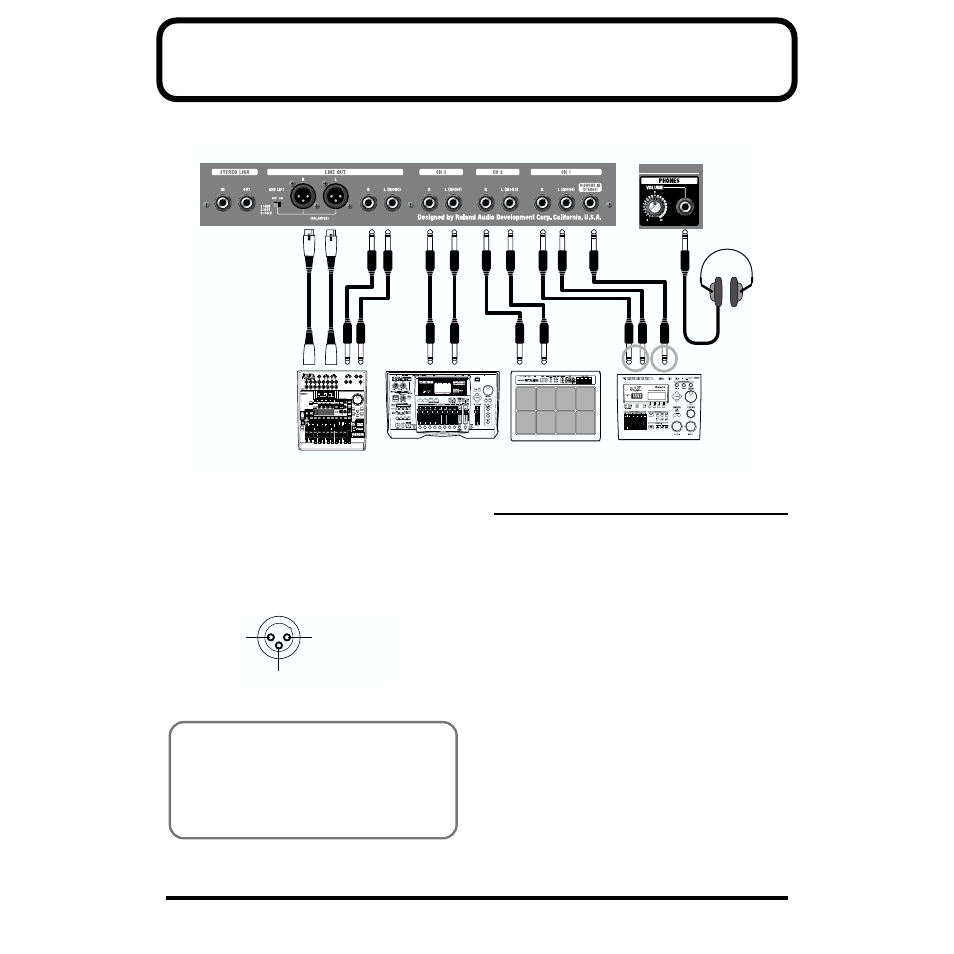

Refer to the following diagram and connect the TDA-700 to the external equipment you are using.
fig.30-1
* To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power
on all devices before making any connections.
* The pin assignment for the XLR type connectors is as shown
below. Before making any connections, make sure that this pin
assignment is compatible with that of all your other devices.
fig.31
Switching the power on or off
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
1. Switch on the power to the V-Drums sound module and
any equipment connected to CH 1–3.
2. TDA-700
3. If a mixer is connected to the LINE OUT jack(s) on the
TDA-700, turn on the mixer.
* This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally.
* Always make sure to have the volume level turned down before
switching on/off power. Even with the volume all the way down,
you may still hear some sound when the power is switched on/
off, but this is normal, and does not indicate a malfunction.
Mixer
Percussion Pad V-Drums Sound Module
or
Stereo
Headphones
Recorder
(Front Panel) (Rear Panel)
or
PHONES MASTER
1: GND
2: HOT
3: COLD 1 2
3
Q: The volume level of the instrument connected to CH-
1–3 is too low.
A: Could you be using a connection cable that contains a
resistor?
Use a connection cable that does not contain a
resistor.
