19
7. SW1 and SW2 are used to switch OSC2 or PC1 and OSC1 or PC0. Turn SW1 and SW2 to the
OSC1 and OSC2 sides, respectively, when they are used as OSC1 and OSC2. Turn SW1 and
SW2 to the PC0 and PC1 sides, respectively, when they are used as PC0 and PC1. At
shipment, SW1 and SW2 are turned to the OSC1 and OSC2 sides.
The emulator does not support the on-chip oscillator function.
SW1 SW2PC1
OSC2 PC0 OSC1
P1
1 3

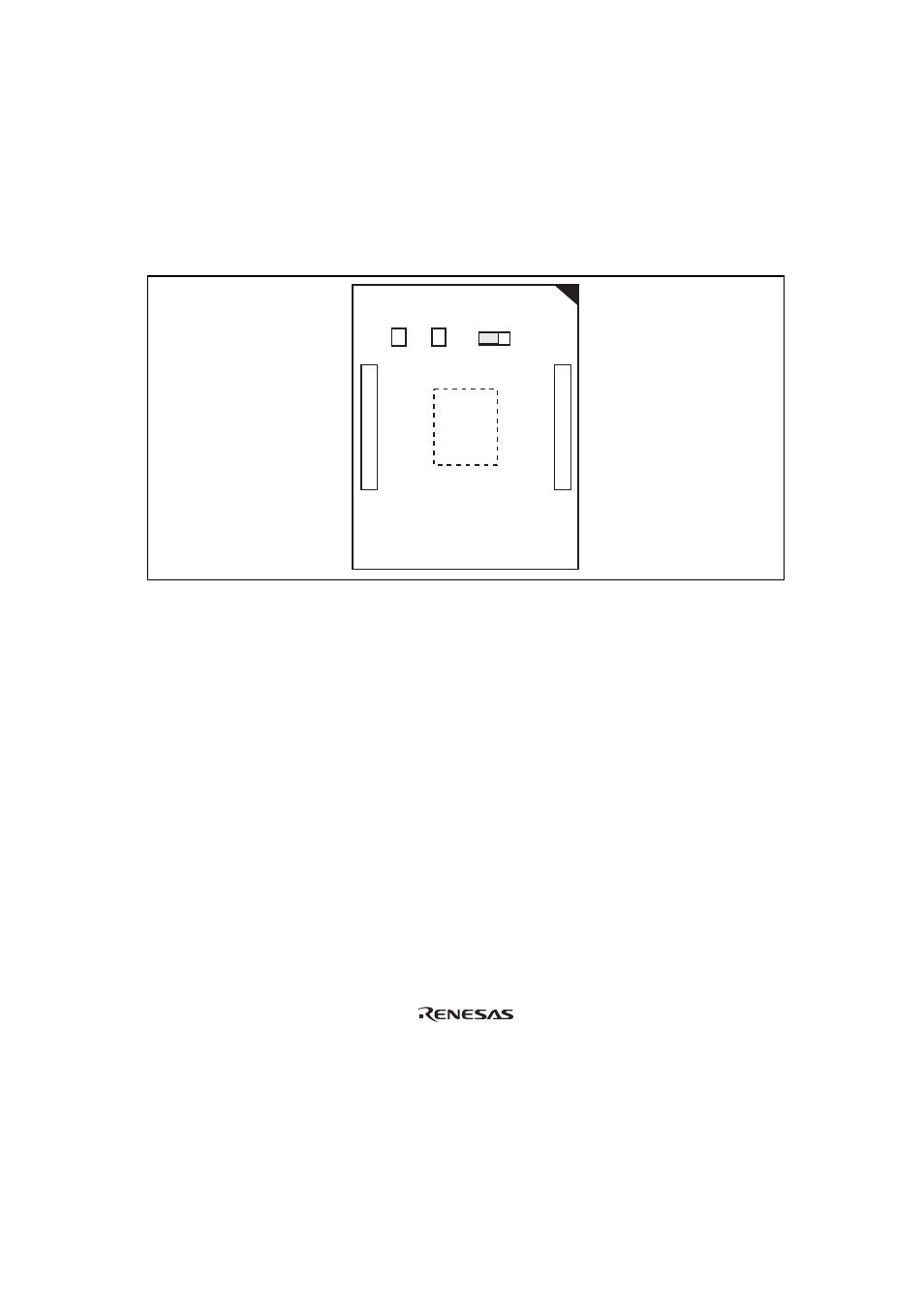

Figure 13 SW1 and SW2
