10
2.3 Recommended Dimensions for User System Mount Pad

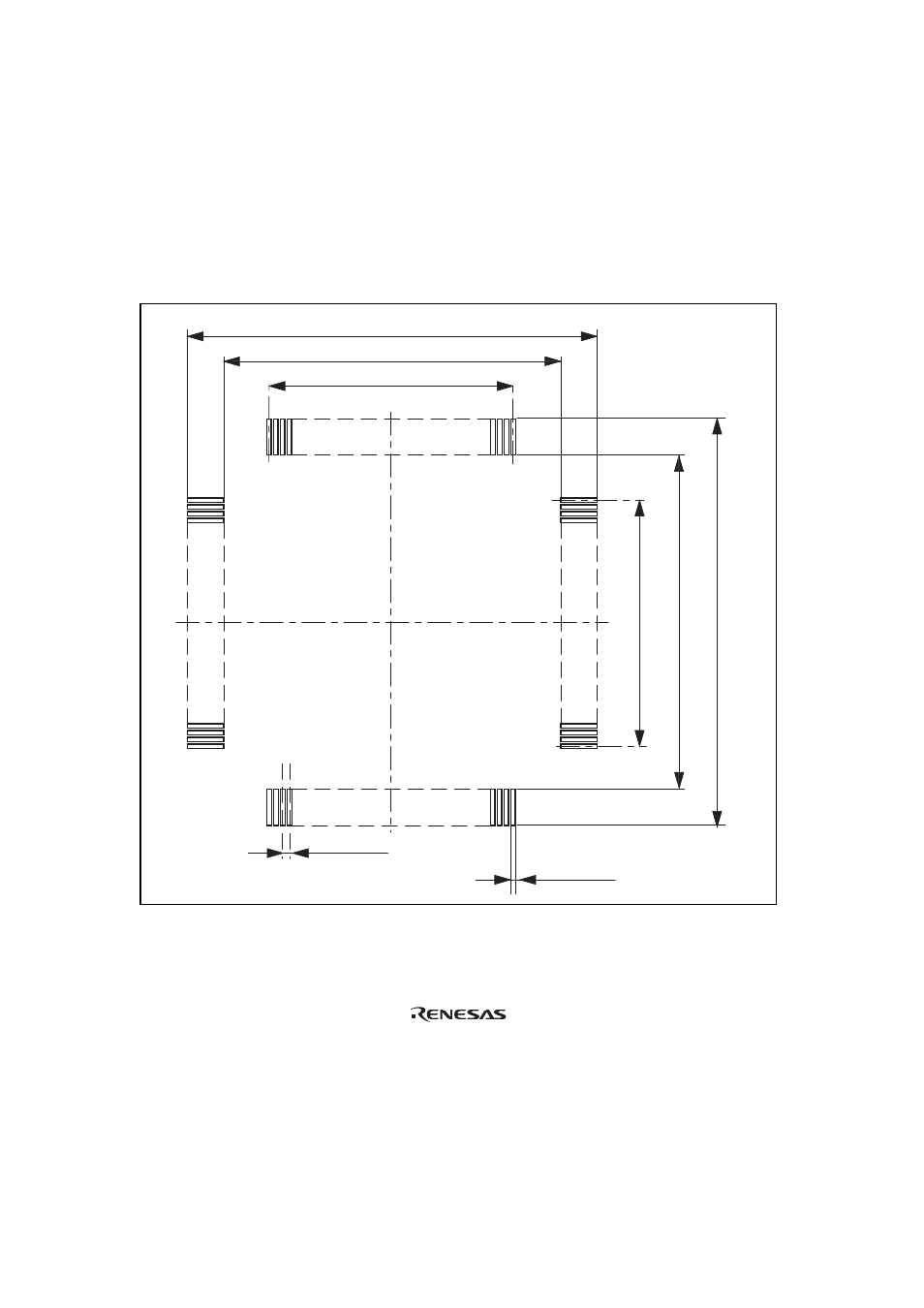

Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for an FP-32A package (NQPACK032SA: manufactured by Tokyo Eletech
Corporation). Note that the dimensions in figure 6 are somewhat different from those of the
actual chip's mount pad.
Unit: mm
6.80 (max.)
10.00 (min.)
6.80 (max.) 10.00 (min.)
0.80 Ч 7 = 5.60 ± 0.1
0.80 ± 0.05
0.80
Ч
7 = 5.60
±
0.1
0.5 ± 0.05
Figure 6 Recommended Dimensions for Mount Pad
