Fasten the user system interface cable head to the IC socket for an FP-32A package on the user
system with the two screws (M2
x 10 mm) provided. Each screw should be tightened a little at a
time, alternating between screws on opposing corners. Take special care, such as manually
securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by
overtightening the screws or twisting the components.
Screws (M2 x 10 mm)
Cable head
User system
Pin 1
IC socket
(NQPACK032SA
manufactured by
Tokyo Eletech Corporation)

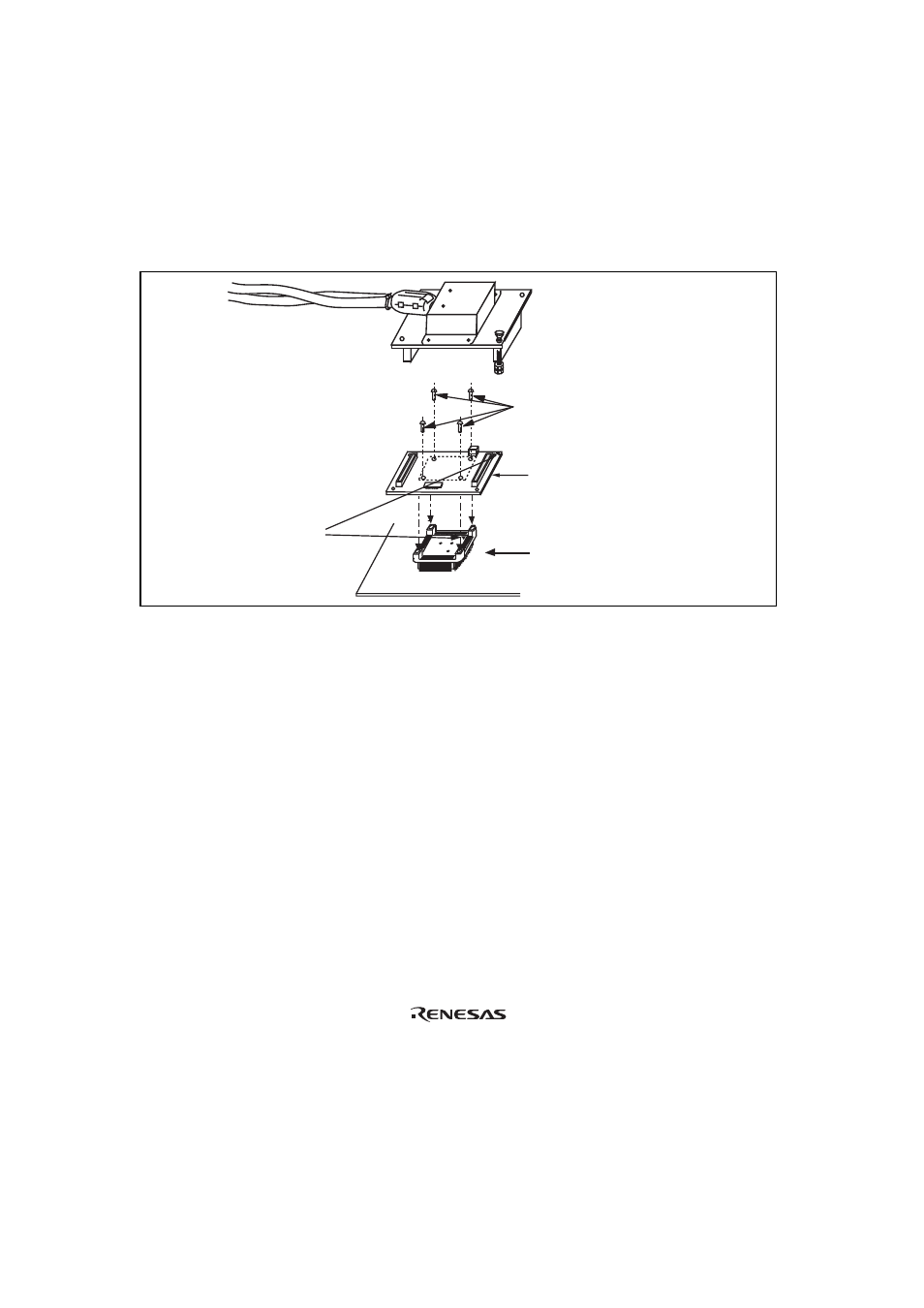

Figure 4 Connecting User System Interface Cable to User System
