6
2.2.1 Installing IC Socket
After checking the location of pin 1 on the IC socket fasten it to the user system before soldering.
CAUTION
After confirming the location of pin 1 on the IC socket,
apply epoxy resin adhesive to the end of the four projections
at the bottom of the IC socket, and fasten it to the user
system.

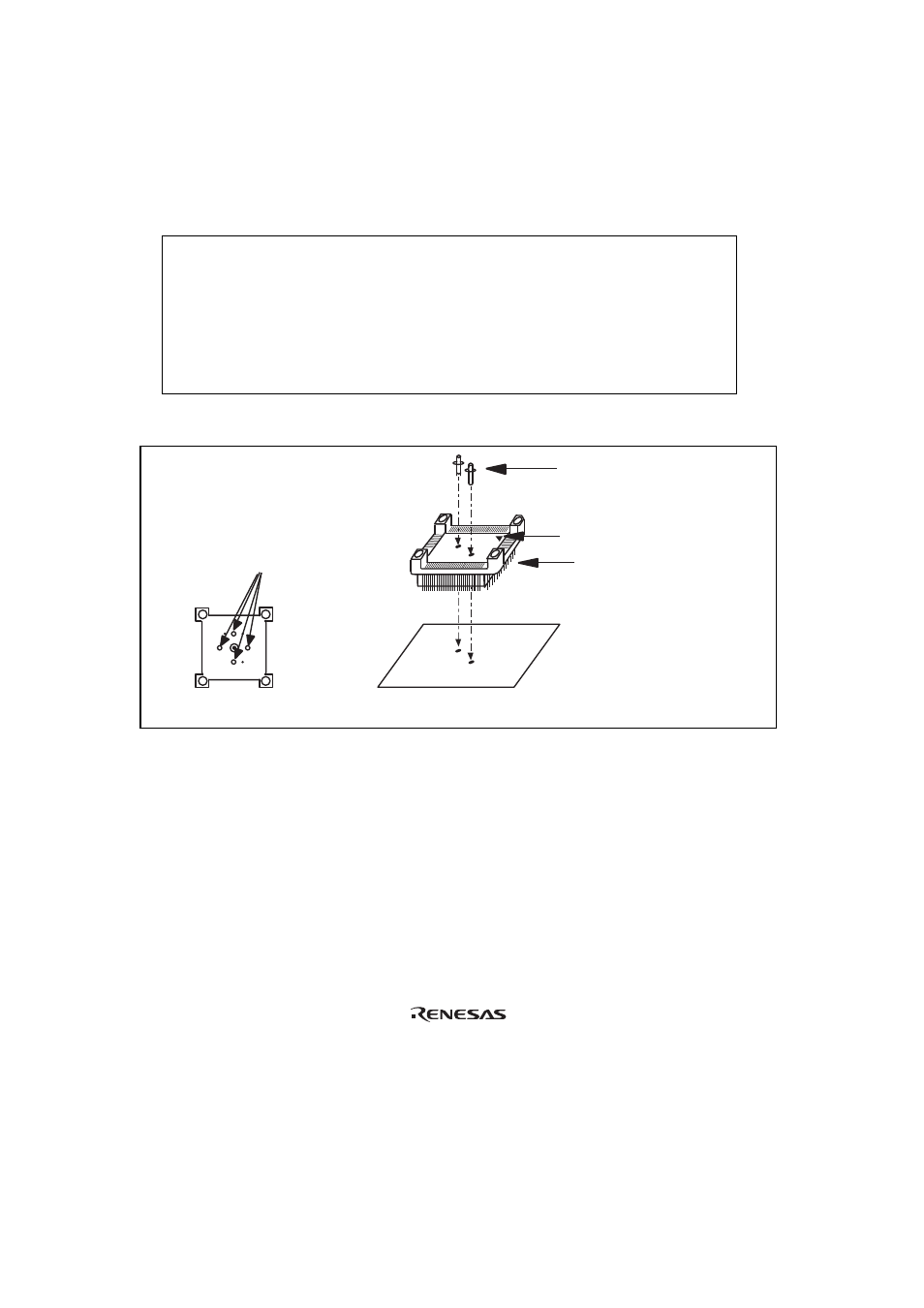

Use the guide pins provided to determine where to install the IC socket, as shown in figure 3.
User system
IC socket
(NQPACK032SA
manufactured by
Tokyo Eletech Corporation)
Guide pins
4 projections to apply
epoxy resin adhesive to
Bottom view of IC socket
Pin 1
Figure 3 Location Setting of IC Socket
After fastening, solder the IC socket for an FP-32A package to the user system.
