1
Section 1 Configuration
CAUTION
Use an NQPACK032SA socket (manufactured by Tokyo
Eletech Corporation) for the FP-32A package IC socket
on the user system.

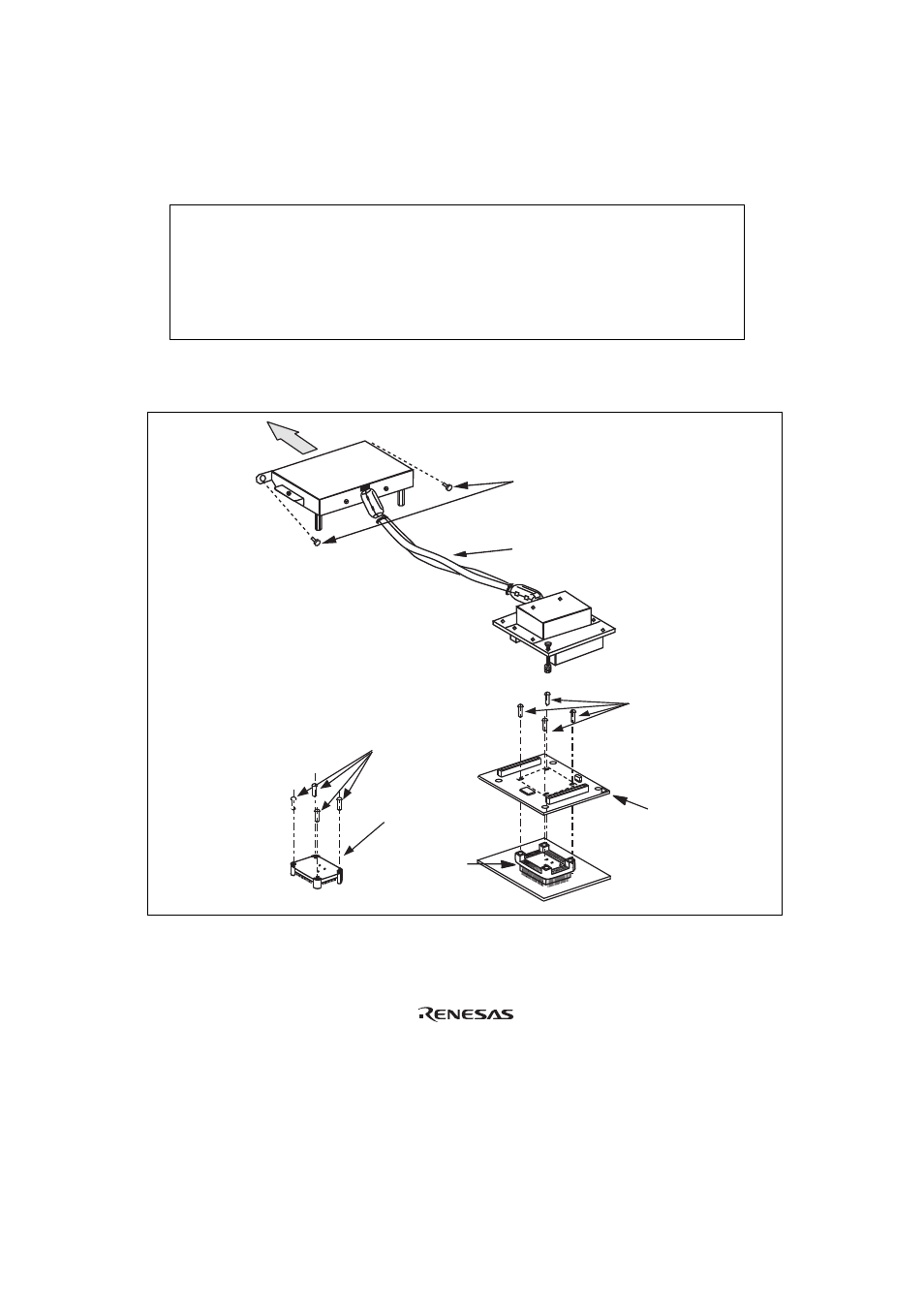

Figure 1 shows the configuration of the HS36902ECH61H user system interface cable for the
FP-32A package.
User system
IC socket
Cable head
Screws (M2 x 10 mm)
(for fastening cable head)
Screws (M2 x 6 mm)
Socket cover
To emulator station
Cable body
CTS screws (M3 x 6 mm)
for fastening the emulator station
Figure 1 HS36902ECH61H User System Interface Cable
