Thermostat Wire Table
Option 3:
WALL THERMOSTAT
A wall thermostat may be installed if desired,
connect the wires as per the wiring diagram.
Use the table below to determine the maximum
wire length.
Note: Preferable if the thermostat is installed
on an interior wall.
UltraGlow offers an optional programmable
thermostat or basic wall thermostat but any
250-750 millivolt rated non-anticipator type
thermostat that is CSA, ULC or UL approved
may be used.
CAUTION
Do not connect millivolt
wall thermostat wires
to a 120V wire.
INSTALLATION
Option 1:
REMOTE CONTROL
Use the UltraGlow Remote Control Kit approved
for this unit. Use of other systems may void
your warranty.
The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting
plate.
1) Choose a convenient location on the wall
to install the receiver and the receptacle
box (protection from extreme heat is very
important). Run wires from the fi replace
to that location. Use the Thermostat Wire
Table.

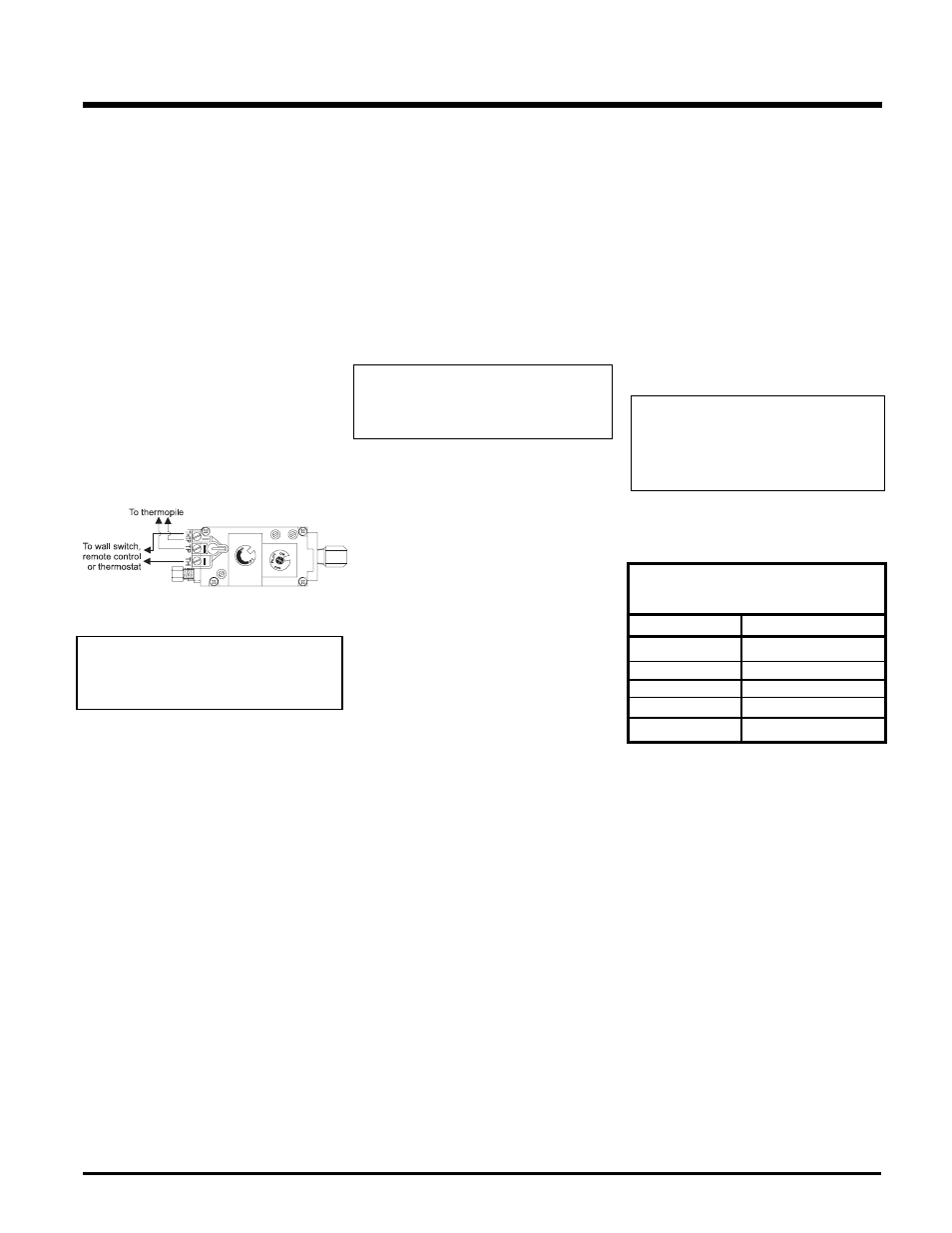

2) Connect the two wires to the gas valve. See
diagram below.
Option 2:
WALL SWITCH
1) Run the wire through the right or left side inlet
opening. Be careful not to damage wire.
Note: We recommend a maximum of 15'
of wire but if you wish to go with a
longer run, use the Thermostat Wire
Table.
2) Connect the wire to the wall switch and install
into the receptacle box.
CAUTION
Do not connect millivolt
wall switch wire to a 120V wire.
3) Install 3 AAA alkaline batteries in transmitter
and 4 AA alkaline batteries in the receiver.
Install the receiver and its cover in the wall.
Switch the remote receiver to "remote"
mode. The remote control is now ready for
operation.
CAUTION
Do not connect millivolt remote
control wires to a 120V wire.
14 GA.
16 GA.
18 GA.
20 GA.
22 GA. 50 Ft.
32 Ft.
20 Ft.
12 Ft.
9 Ft.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
