UltraGlow G36D Zero Clearance Direct Vent Gas Fireplace 13

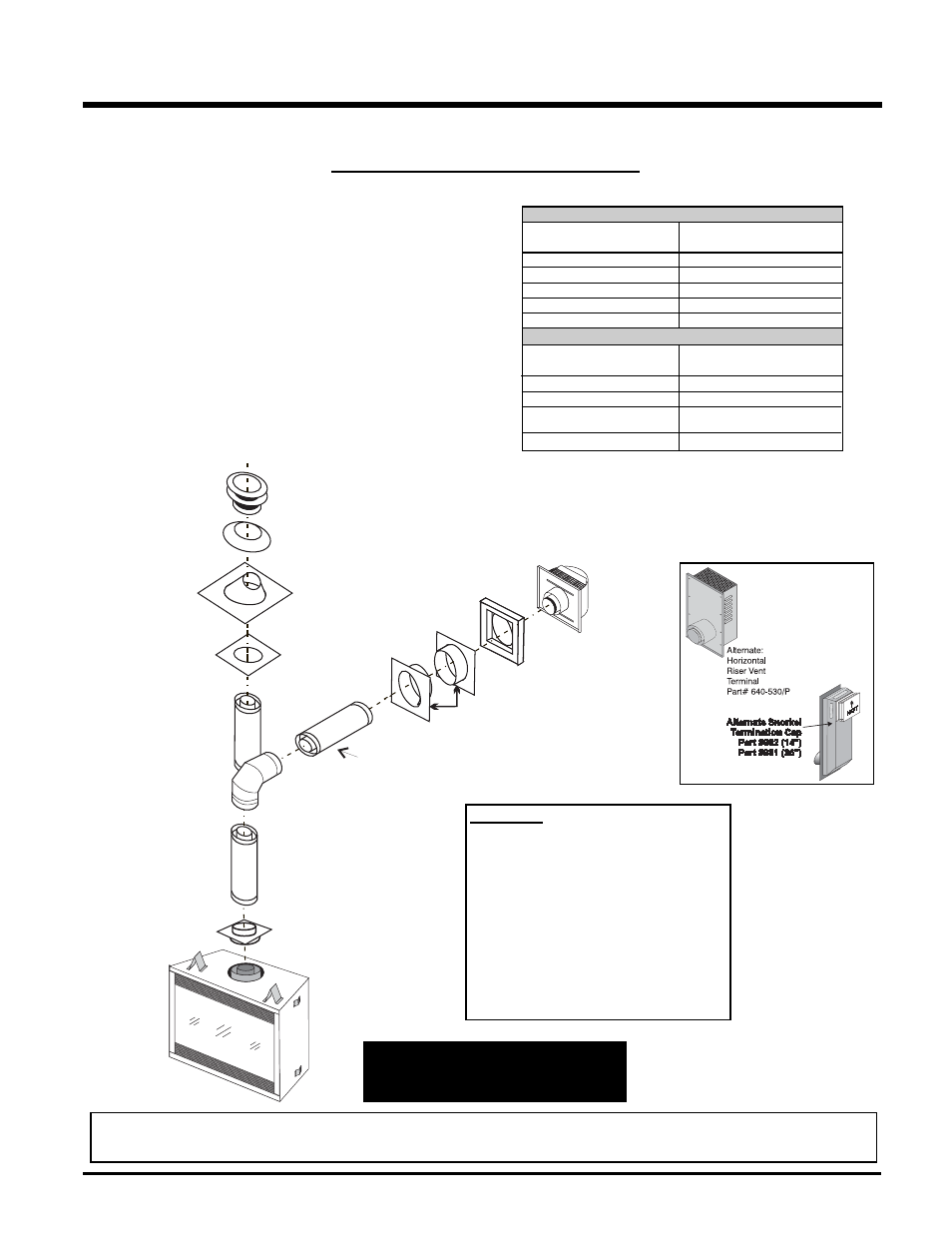

Rigid Pipe Adaptor
(Part# 510-994)
Pipe Length
Vertical
Terminal
Storm Collar
(Part # 953)
Flashing
943 or 943S
Ceiling Firestop
(Part # 963)
24" Pipe
Length
Adj.Pipe Length
11" - 14-5/8"
90 Elbow o
Horizontal
Termination Cap
(Part# 946-523/P)
Wall Thimble
(Part # 942)
Vinyl Siding
Standoff (Optional)
(Part #950)
INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic horizontal termination
are:
1 Horizontal Termination Cap
1 90 o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness (see chart)
Wall thickness is measured from the back standoffs to the inside mounting
surface of termination cap. For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff, to create a level surface to
mount the vent terminal. The Terminal must not be recessed into siding.
Measure the wall thickness including furring strips.
If a Vinyl Siding Standoff is required (it must be used with vinyl siding),
measure to outside surface of wall without siding and add 2 inches.
Flat Wall Installation
Wall Thickness Vent Length
(inches) Required (inches)
4"
- 5-1/2" 6"
7" - 8-1/2" 9"
10" - 11-1/2" 12"
9" - 14-1/2" 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj.
Pipe Corner Installation
Wall Thickness Vent Length
(inches) Required (inches)
3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe
7-3/4" - 16-1/4" 17" - 24" Adj. Pipe
7-1/4" - 8-3/4" 6" + 12"
9" + 9"
4-1/4" - 5-3/4" 6" + 9"
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek for
using a Dura-Vent Flue Adaptor in conjunction
with Selkirk Direct-Temp and Ameri Vent Direct
venting systems. Use of these systems with the
Direct Vent GS starting collar is deemed accept-
able and does not affect the Intertek WHI listing
of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCap TM and FPI
Riser is acceptable with all systems.
When using piping other than Simpson
Dura-Vent, 3 screws must be used to
secure rigid pipe to adaptor.
The FPI AstroCap TM and FPI Riser Vent terminal is certifi ed for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent GS,
American Metal Products, Ameri Vent Direct vent and Selkirk Direct-Temp. FPI TM , and FPI AstroCap TM are the proprietary trademarks of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
