UltraGlow G36D Zero Clearance Direct Vent Gas Fireplace 25
INSTALLATION
5) Position Log 02-53 across the cutouts in Logs 02-75 and 02-51 with
the notch on the left side of the log fi tting into the 2nd grate tab.
Cutouts
2nd Grate Tab

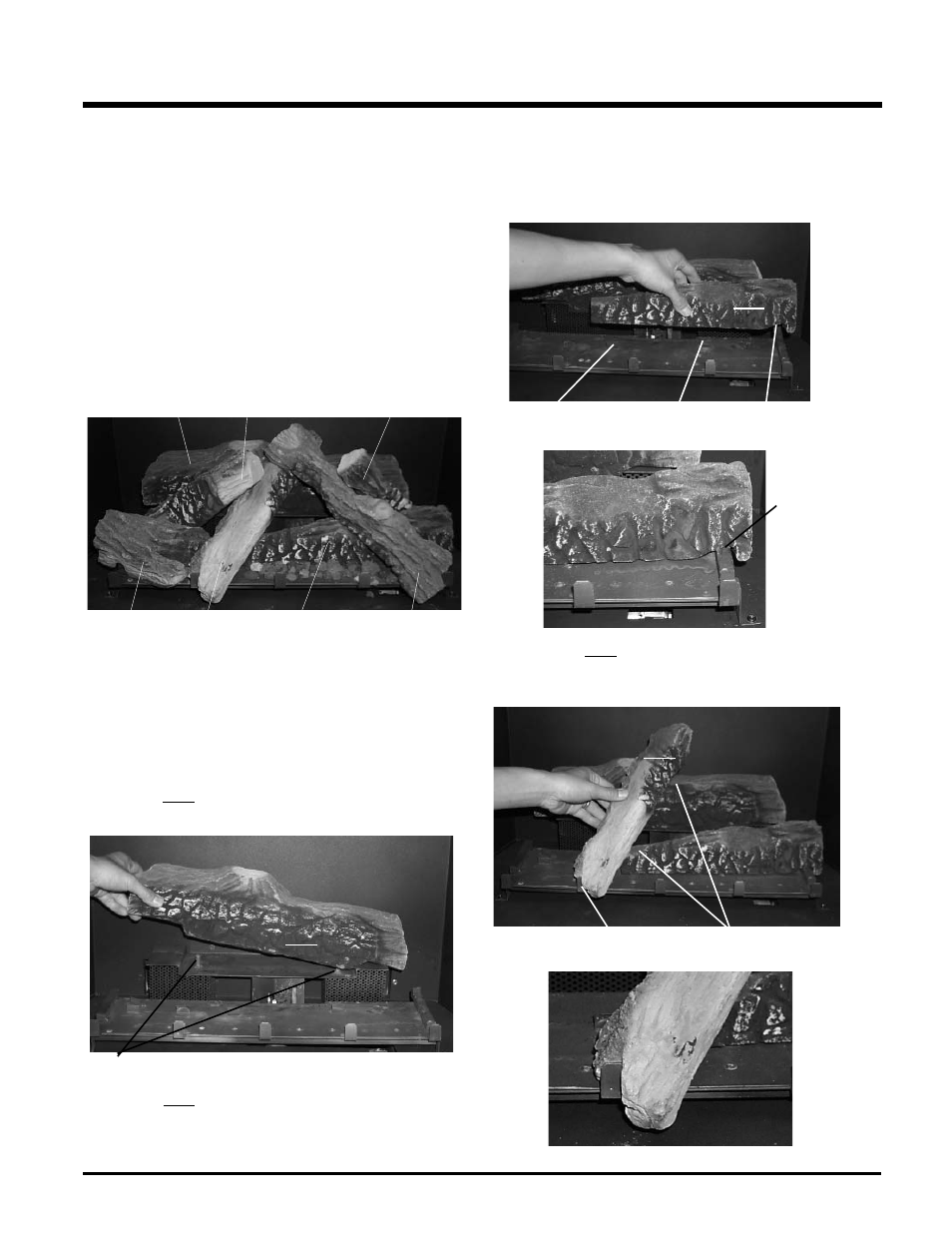

LOG SET INSTALLATION
Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken
logs can interfere with the pilot operation.
The gas log kit (Part # 780-930) contains the following pieces:
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
3) Place Log 02-75 on the rear log support pins with the fl at side to the
back.
The "02" refer numbers (i.e. 02-75) are
molded into the rear of each log.
02-52
02-54
Notch
a) 02-75 Rear Log 902-277
b) 02-55 Middle Left Log 902-237
c) 02-50 Front Left Log 902-242
d) 02-53 Center Left Log 902-239
e) 02-51 Front Bottom Log 902-241
f) 02-54 Center Right Log 902-238
g) 02-52 Middle Right Log 902-240
h) Embers 902-156
i) Vermiculite 902-179
02-75 02-55
02-50 02-53 02-51
02-75
02-51
02-75
Notch Bracket Bracket
02-51
02-53
02-75
02-51
02-51
02-53
Support Pins
4) Place Log 02-51 on the front right side of the burner. Push the back
of the log against the 2 brackets with the notch on the bottom right
side of the log fi tting into the right side of the grate.
2) Sprinkle the vermiculite all over the top of the base brick panel.
