MODEL NUMBER EXAMPLE:
H 3 - 0 5 1 4 A
Series
Model Size
Representative of approximate MBTUH input
(Model 0514 has input of 511,500 BTUH)
Firing Mode
1
Mechanical Modulation
2 Motorized Modulation
3 2-Stage Firing / 4-Stage Firing Option
4 On-Off Firing
5 Low Temperature Mechanical Modulation
6 Motorized Modulation w/Electronic Outdoor Reset B6000
Application
H = Heating Boiler

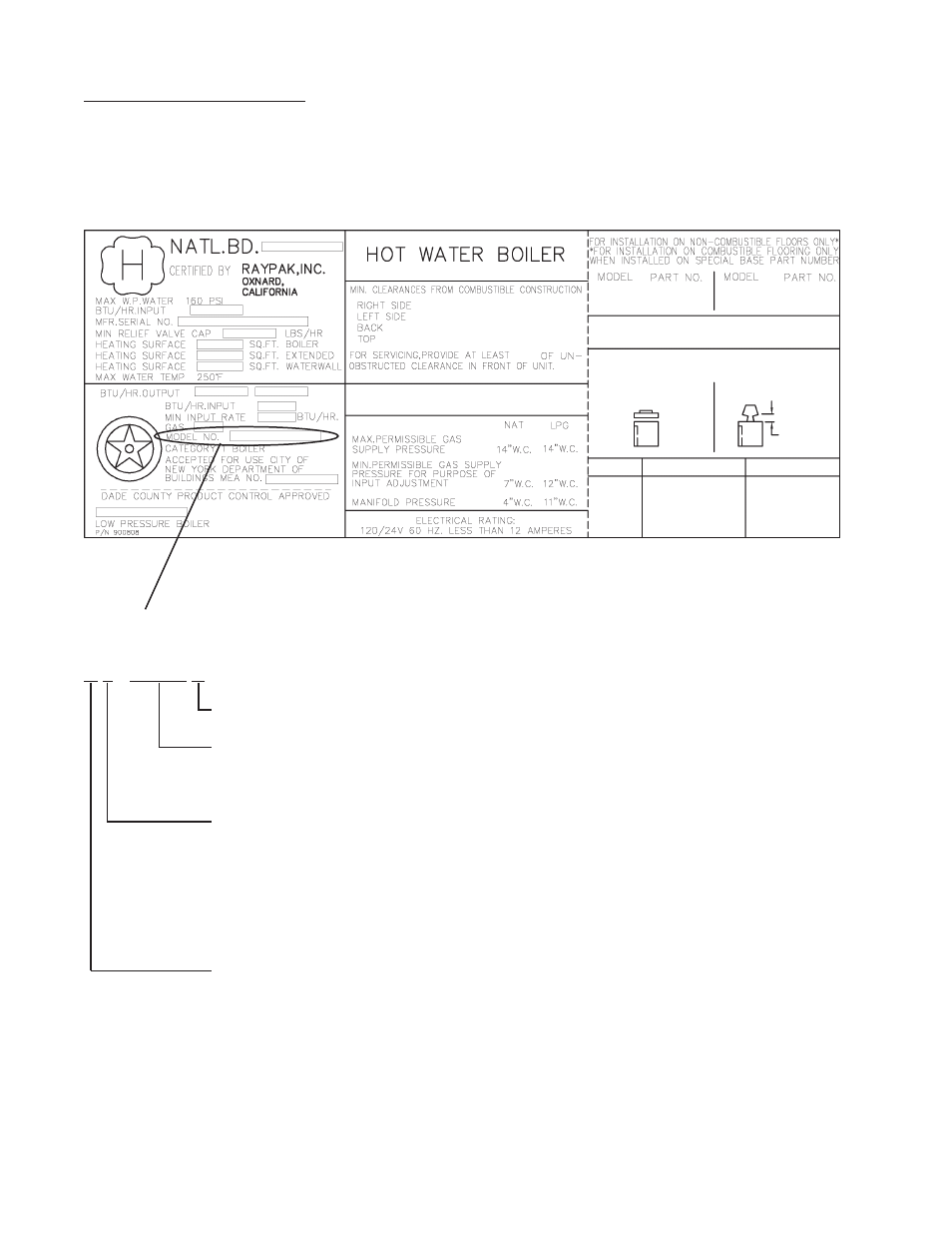

Boiler rating plate showing model number
MODEL IDENTIFICATION
The model number of a boiler can be found on the Sales Order and the boiler's rating plate. The example below
identifies what the characters of the model number represent.
