Appendix A Specifications
© National Instruments Corporation A-11 NI PXIe-1065 User Manual
Figures A-1 and A-2 show the NI PXIe-1065 chassis dimensions. The
holes shown are for the installation of the optional rack mount kits. You can
install those kits on the front or rear of the chassis, depending on which end
of the chassis you want to face toward the front of the instrument cabinet.
Notice that the front and rear chassis mounting holes (size M4) are
symmetrical.

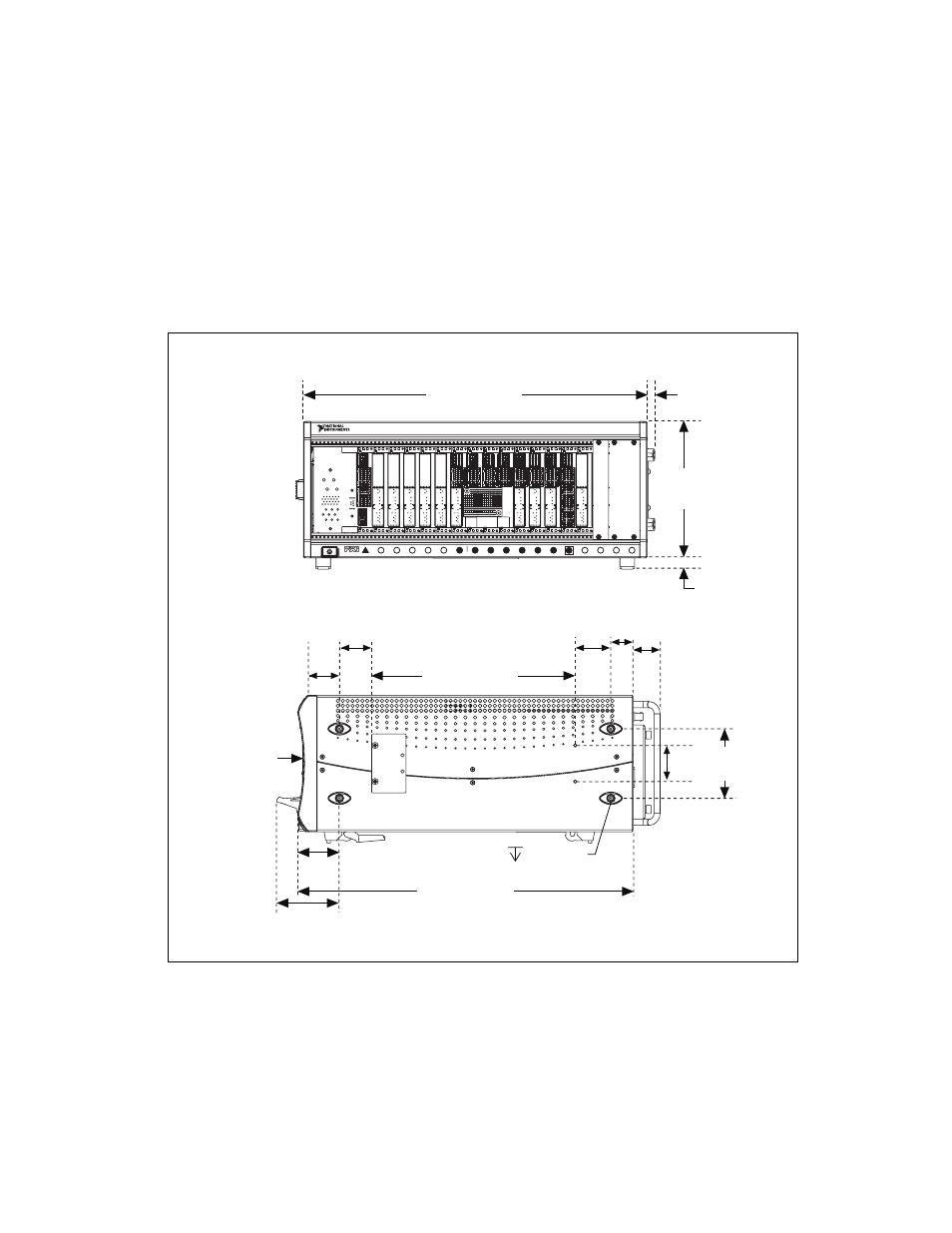

Figure A-1. NI PXIe-1065 Chassis Dimensions (Front and Side)
0.57
(14.5)
Dimensions are in inches (millimeters)
0.30 (7.25)
.39
(9.9)
17.54 (445.6)
6.97
(177.1)
3.54
(90.0)
1.84
(46.8)
17.11 (434.6)
3.19
(81.1)
2.12
(53.8)
1.58
(40.1)
1.14
(29.1)
1.37
(34.8)
10.21 (259.1)
18 17 16 15 13 12 11 10 9 8 7 6 5 4 3 2
NI PXIe-1065
1 H 14 H H H
1.82
(46.3)
1.82
(46.3)
Front of
PXI Card
