Chassis Description
Figures 1-1 and 1-2 show the key features of the NI PXIe-1065 chassis
front and back panels. Figure 1-1 shows the front view of the
NI PXIe-1065. Figure 1-2 shows the rear view of the NI PXIe-1065.

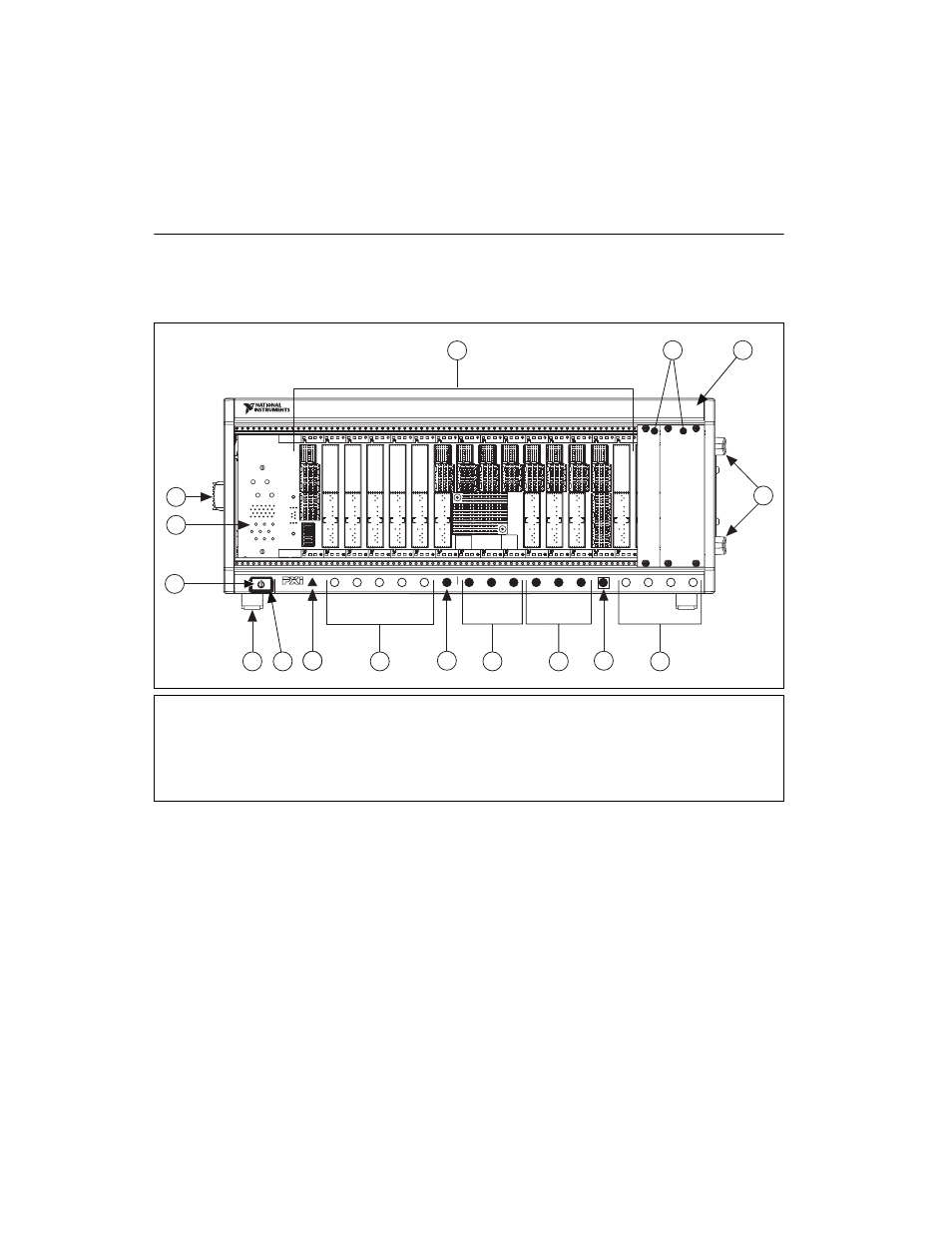

Figure 1-1. Front View of the NI PXIe-1065 Chassis
1 Chassis Carry Handle
2 Backplane Connectors
3 PXI Filler Panels
4 Chassis Model Name
5 Removable Feet
6 PXI Peripheral Slots (9x)
7 PXI Express System Timing Slot
8 PXI Express Hybrid Peripheral Slots (4x)
9 PXI Express Peripheral Slots (3x)
10 PXI Express System Controller Slot
11 Power Inhibit Switch
12 Power Inhibit Switch LED
13 System Controller Expansion Slots
18 17 16 15 13 12 11 10 9 8 7 6 5 4 3 2
NI PXIe-1065
4
8
3
11
1 H 14 H H H
6 5 6 8 9 7 8 10
2
1
13
5
12
