Chapter 2 Installation and Configuration
© National Instruments Corporation 2-13 NI PXIe-1065 User Manual
double-driving and potentially damaging trigger lines. For more
information about routing and reserving PXI triggers, refer to
KnowledgeBase 3TJDOND8 at
ni.com/support .
The configuration steps for single or multiple-chassis systems are the same.

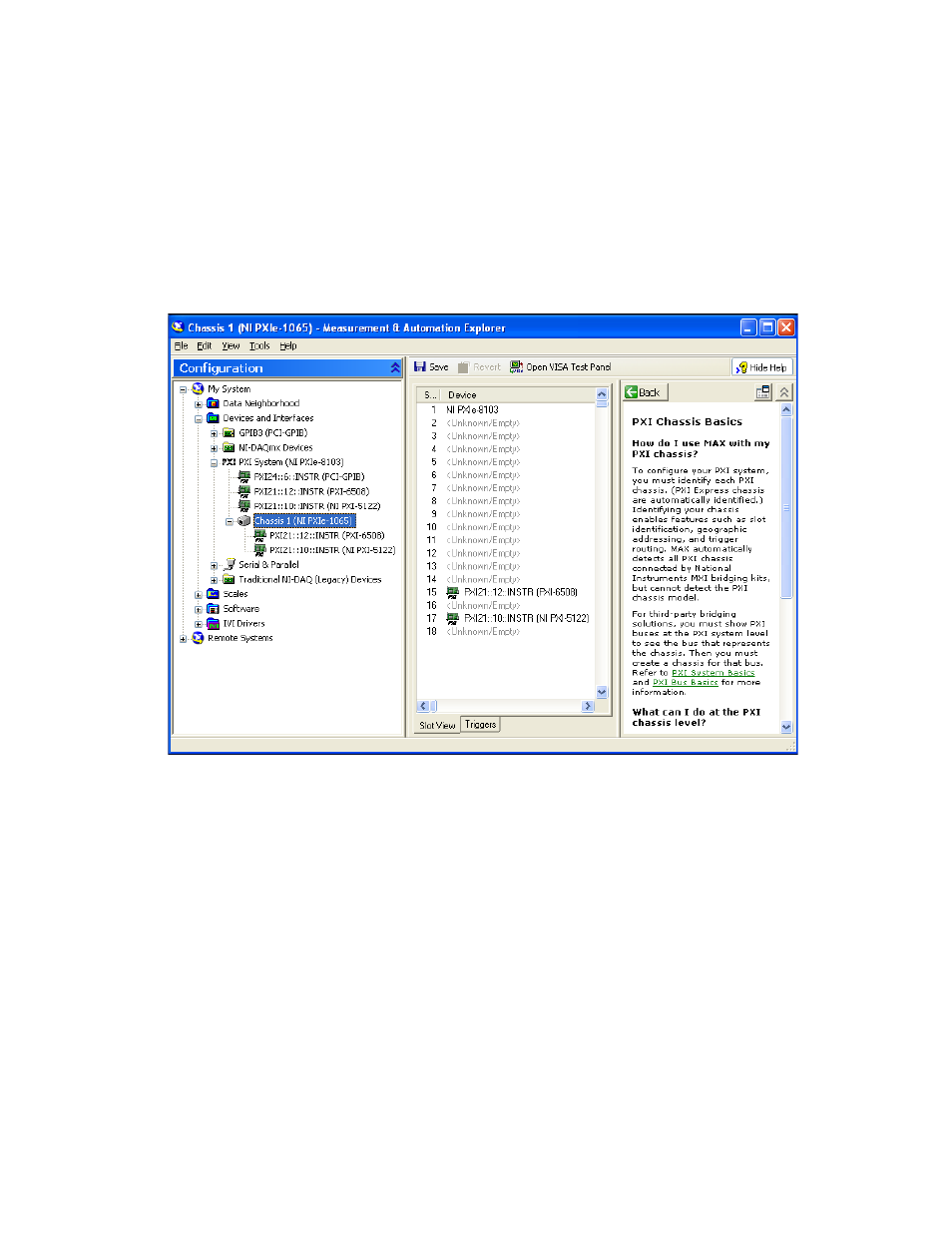

Figure 2-6. Multichassis Configuration in MAX
PXI-1 System Configuration
1. Launch MAX.
2. In the Configuration tree, click the Devices and Interfaces branch to
expand it.
3. If the PXI system controller has not yet been configured, it is labeled
PXI System (Unidentified). Right-click this entry to display the
pop-up menu, then select the appropriate system controller model from
the Identify As submenu.
