Page 141: Table e-3
Reference Guide for the Model XM128 ISDN Digital Modem
Connector Pin Assignments
E-3

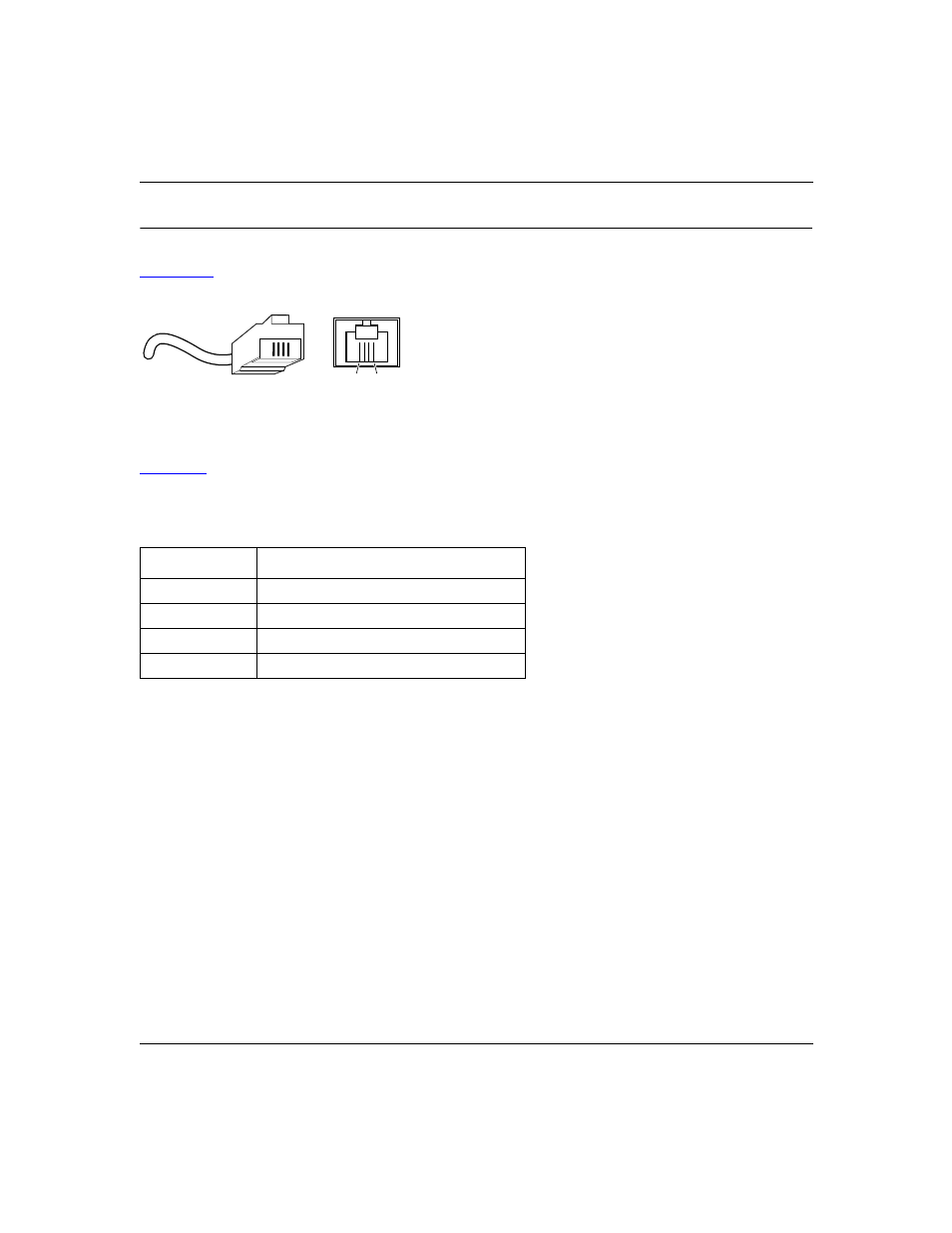

RJ-11 Plug and Connector
shows an RJ-11 plug and an RJ-11 connector.
Figure E-2.
RJ-11 plug and RJ-11 connector
lists the pin assignments for RJ-11 plugs and the RJ-11 connectors for the PHONE 1 and
PHONE 2 ports.
Table E-3.
RJ-11 connector pin assignments
Pin
Assignment
1
Not connected
2
Ring
3
Tip
4
Not connected
7895MFA
1
4
1 2 3 4
