Serial Data (VV) Audio Volume Serial Data (VV) Audio Volume
90-99 +10dB 40 -40dB
80 0dB 30 -50dB
70 -10dB
20 -60dB
60 -20dB 10 -70dB
50 -30dB 0 -80dB
Place a checkmark in the Mute box for any output port where no volume is desired.
Setup Pages
These settings enable the user to configure the VEEMUX-A web interface connection. This change will take a few
seconds and automatically redirect the user to the IP address specified.
Note: Since the webserver will be restarting, all active connections will be logged out.
The Website Timeout option controls how long an inactive web connection will stay logged in.
Any change to the Website Timeout configuration takes effect immediately.
The “Telnet configuration” block enables the VEEMUX to receive commands on port 2005 in addition to port 2000.
For more on telnet use, see “Telnet Interface- Port 2000” on page 14.

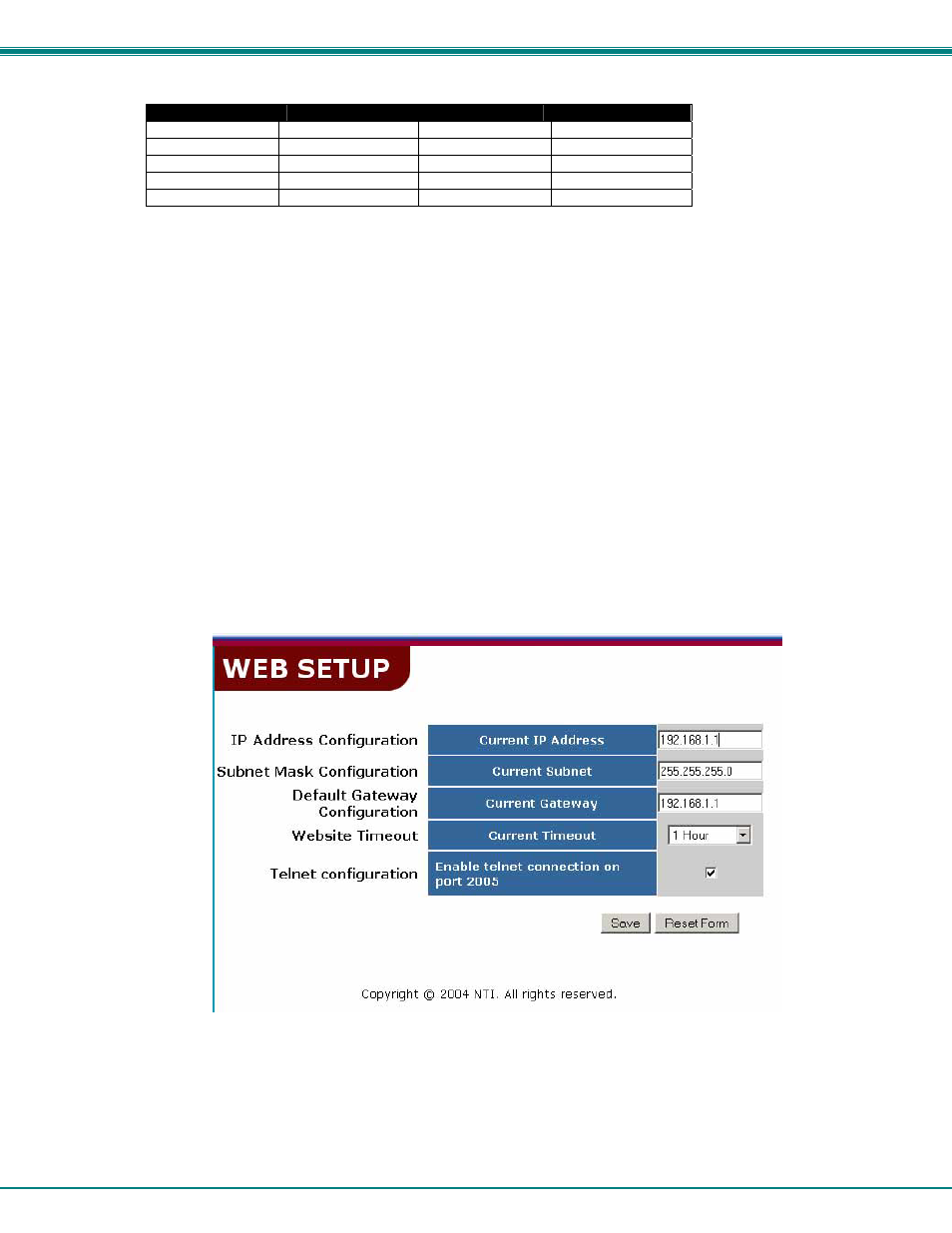

Figure 12- Web interface Setup page
