Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent, or SuperSeal venting components.
Minimum and maximum vent lengths, for both horizontal and vertical installations, and air terminal locations for either system
are set out in this manual and must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent,
and SuperSeal follow the installation procedure provided with the venting components.
All outer pipe joints of these venting systems must be sealed using Red RTV and/or Mill Pac high temperature sealant (not
supplied) hereafter referred to as high temperature sealant W573-0002 (Red RTV) and the high temperature sealant W573-
0007 (Mill Pac).
The connection between the adaptor and for these systems and the fi replace fl ue collar must be sealed using the high
temperature sealant W573-0007 Mill Pac (not supplied).
A starter adaptor must be used with the following vent systems and may be purchased from the corresponding
supplier:
Do not use abrasive
cleaners to clean
plated parts. Buff
lightly with a clean
dry cloth.
DO NOT SUBSTITUTE MATERIALS. Clean the glass after the fi rst 10 hours
of operation with a recommended gas fi replace glass cleaner. Thereafter
clean as required. DO NOT CLEAN GLASS WHEN HOT! If the glass is not
kept clean permanent discolouration and / or blemishes may result.

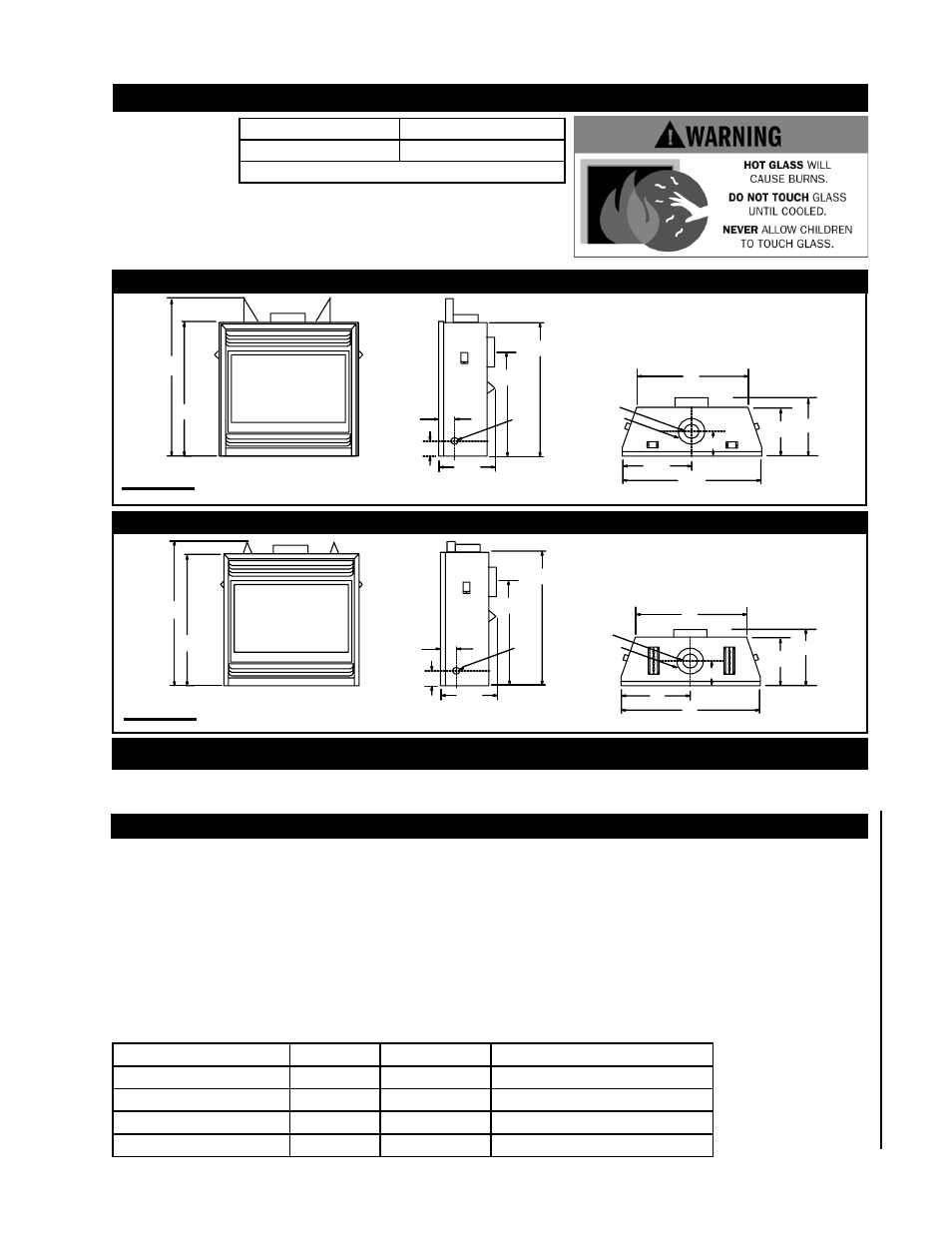

BGD36 SPECIFICATIONS
GD36 SPECIFICATIONS
MODELS GD36 AND BGD36 MAY BE VENTED EITHER AS A TOP VENT OR A REAR VENT.
REFER TO THE SECTION APPLICABLE TO YOUR INSTALLATION.
VENTING LENGTHS
VENTING
FIGURE 1a
FIGURE 1b
CARE OF GLASS AND PLATED PARTS
38 1 /
2
"
33"
7 1 /
2
"
27"
14 1 /
4
"
37 1 /
4
"
18 5 /
8
"
12 1 /
4
"
4" DIA.
7" DIA.
3"
5 1 /
2
" GAS
INLET
ELECTRICAL INLET
LEFT SIDE
24 1 /
4
"
14 1 /
4
"
32 3 /
8
"
35 1 /
2
"
32 3 /
8
"
7 1 /
2
"
27"
14 1 /
4
"
36"
18"
12 1 /
4
"
4" DIA.
7" DIA.
3"
5 1 /
2
"
ELECTRICAL INLET
LEFT SIDE
14 1 /
4
"
GAS
INLET
24 1 /
4
"
32 3 /
8
"
GD36 GLASS TYPE BGD36 GLASS TYPE
3/16" Ceramic Glass* 3/16" Tempered Glass*
*Available from your Napoleon® / Wolf Steel Ltd. dealer.
PART 4" / 7" SUPPLIER WEBSITE ADDRESS*
Simpson Dura-Vent W175-0053 Wolf Steel Ltd. www.duravent.com
Selkirk Direct Temp 4DT-AAN Selkirk www.selkirkcorp.com
American Metal Amerivent 4DSC-N2 American Metal www.americanmetalproducts.com
SuperSeal 4DNA Metal-Fab www.mtlfab.com
* For Simpson Dura-Vent,
Selkirk Direct Temp,
merican Metal Amerivent,
and SuperSeal follow the
installation procedure
found on the website for
your venting supplier.
