25
W415-0210 / R / 02.27.08
GD36 BGD36
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
24” MINIMUM
PLUS RISE*
2”
42 1 / 4 ”
9 3 / 4 ” MINIMUM
* See chart on Page 6
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
24” MINIMUM
PLUS RISE*
2”
39”
6” MINIMUM
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
2”
57” MINIMUM
PLUS RISE*
63”
2” MINIMUM
30”
1 1 / 2 ”
BRICK
COMBUSTIBLE NON-COMBUSTIBLE
2”
1”
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK
AND STONE.
2”
42 3 / 8 ” MINIMUM
PLUS RISE*
48 3 / 8 ”
2” MINIMUM
16”
1 1 / 2 ”
The fi replace requires a minimum enclosure height of
48 3/8". For temperature requirements, the enclosure space
around and above the fi replace must be left unobstructed.
The fi replace requires a minimum enclosure height of 63".
For temperature requirements, the enclosure space around
and above the fi replace must be left unobstructed.
The fi replace requires a minimum enclosure height of
42 1/4". For temperature requirements, the enclosure space
around and above the fi replace must be left unobstructed.
The fi replace requires a minimum enclosure height of 39".
For temperature requirements, the enclosure space around
and above the fi replace must be left unobstructed.

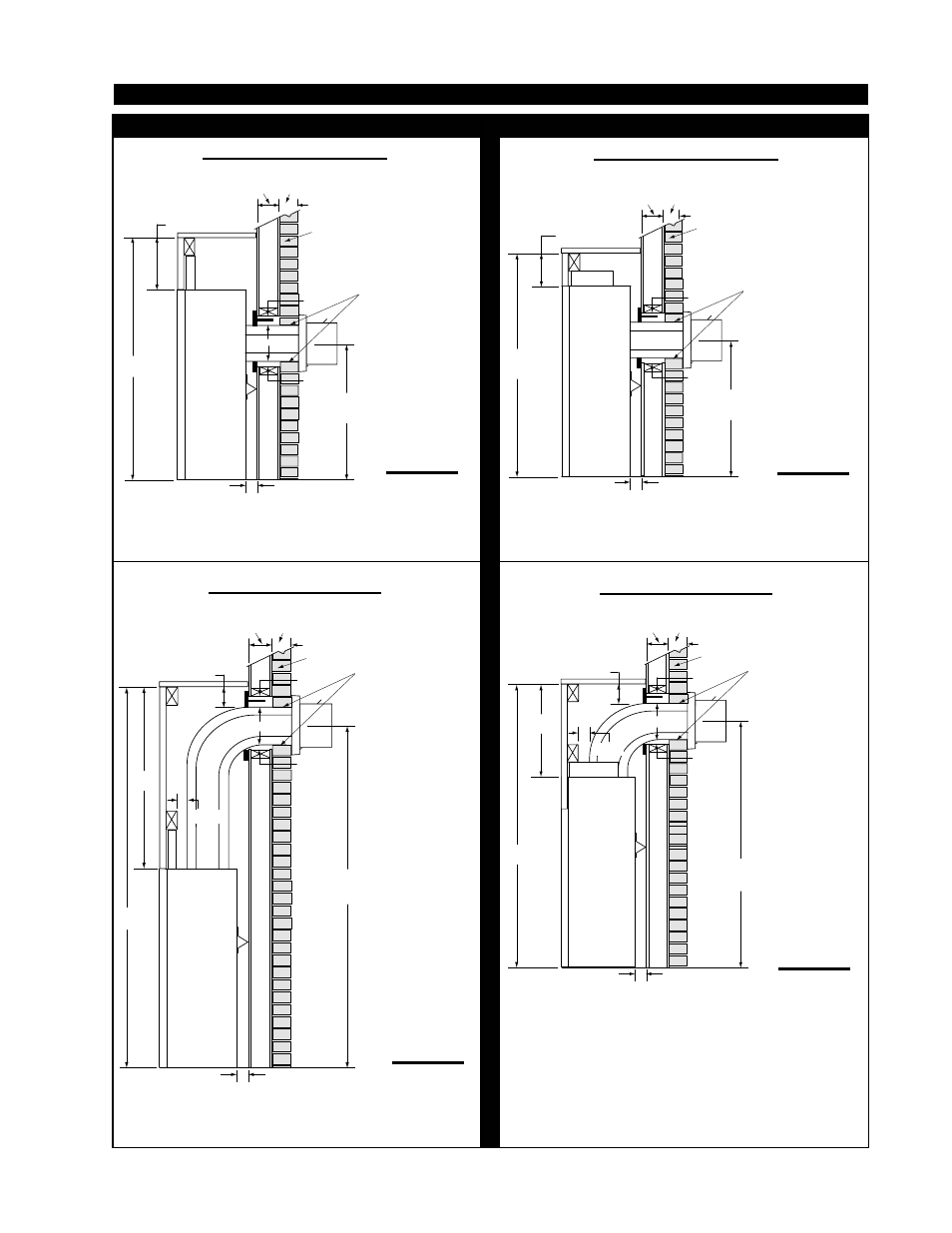

MINIMUM ENCLOSURE CLEARANCES
REAR EXIT ENCLOSURE REAR EXIT ENCLOSURE
TOP EXIT ENCLOSURE TOP EXIT ENCLOSURE
FIGURE 47 FIGURE 49
FIGURE 48
FIGURE 50
