Napoleon Fireplaces GD36PTR - Manual (Page 30)

30
W415-0210 / R / 02.27.08
To safely install the fan, turn off the electricity fi rst.
If the fi replace was not previously equipped with a fan:
route a grounded 2-wire, 60hz power cable to the junction box.
At this point, it must be strain relieved and insulated.
The wire harness provided in this kit is a universal harness.
When installed, ensure that any excess wire is contained, pre-
venting it from making contact with moving or hot objects.
To ease installation of the fan, remove the hinge screen
and valve control door (lower louvres) from the base of the
fi replace.
Position the vibration reducing pad into the clip and onto the
threaded stud at the other end, piercing a hole into the pad.
The fan assembly must be able to be positioned entirely onto
the pad.
Slide the fan assembly past the controls and into the clip.
Secure using the lock washer and nut provided.
Plug the harness cord into the receptacle.
Use of the fan increases the output of heat.
Unplug the power cord from the receptacle. Connect all wires
as shown.
Attach and secure the sensor assembly bracket to the secur-
ing stud located next to the receptacle/junction box at the
bottom left of the unit using the lock washer and wing nut.
Ensure that the thermodisc touches the fi rebox wall.
When installed, ensure that any excess wire is contained, pre-
venting it from making contact with moving or hot objects.
Plug the power cord back into the receptacle.
ELECTRICAL INSTALLATION TO BE DONE BY A QUALI-
FIED INSTALLER and must be connected and grounded in
accordance with local codes. In the absence of local codes,
use the current CSA C22.1 C
ANADIAN ELECTRICAL CODE
in Canada
or the ANSI/NFPA 70
NATIONAL ELECTRICAL CODE
in the United
States.
JUNCTION BOX
THERMODISC
SENSOR
ASSEMBLY
BRACKET
RECEPTACLE /
FIGURE 65
FIGURE 67
FIGURE 68
This optional kit is meant to be used only in conjunction with
the GD65 Fan Kit, shown above, which may be ordered from
your Wolf Steel / Napoleon dealer.
With the thermostatic sensor option, the fan, when turned
on, becomes thermally activated, and will automatically run
approximately 15-30 minutes after the fi replace has been lit
and for approximately 30-45 minutes after the fi replace has
been turned off.

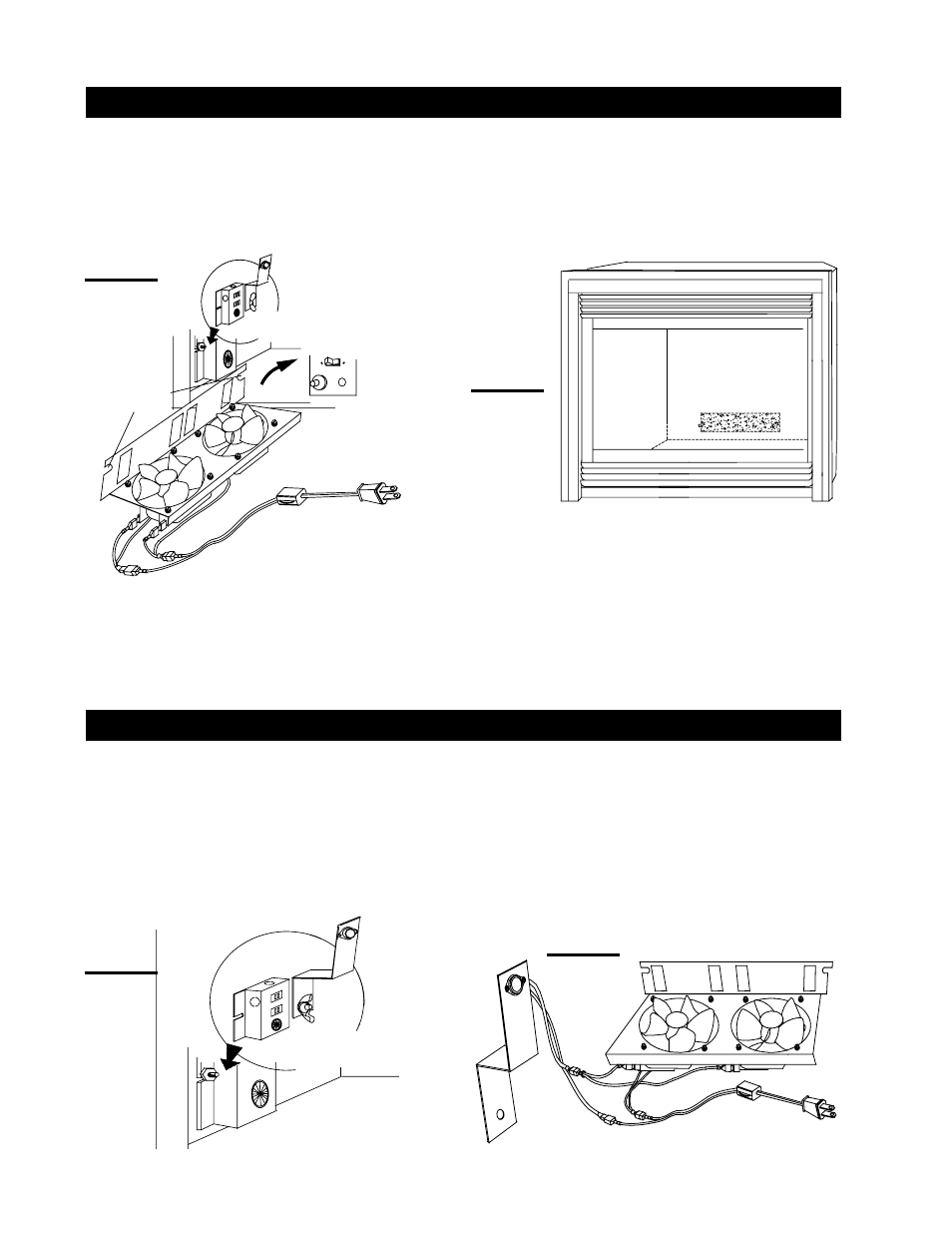

OPTIONAL FAN INSTALLATION
GD36 THERMOSTATIC SENSOR CONTROL
RECEPTACLE /
JUNCTION BOX
OPTIONAL THERMOSTATIC
SENSOR
SLOTS
OPEN ENDED
VARIABLE SPEED/
BRACKET
PIEZO IGNITOR
FIGURE 66
