ReadyNAS 3200 Hardware Manual
Getting Started 1-1
v1.1, July 2009
Chapter 1
Getting Started
This chapter provides an overview of the unit’s physical features.
Topics discussed in this chapter include:
• “Control Panel, Status Displays, Ports, and Drive Bays”
• “Safety Warning”
• “Initial Setup, Default IP Address, and Login Password”
• “Safety Warning”
• “Rack Mount Setup”
Control Panel, Status Displays, Ports, and Drive Bays
This section introduces the ReadyNAS control panel, status display, ports, and drive bays.
Front Panel
1. Twelve drive bays with hot pluggable disk trays that each include two status lights.
2. Control panel with status lights.
• Power and reset buttons.
• Power, LAN, disk, and fan status lights.

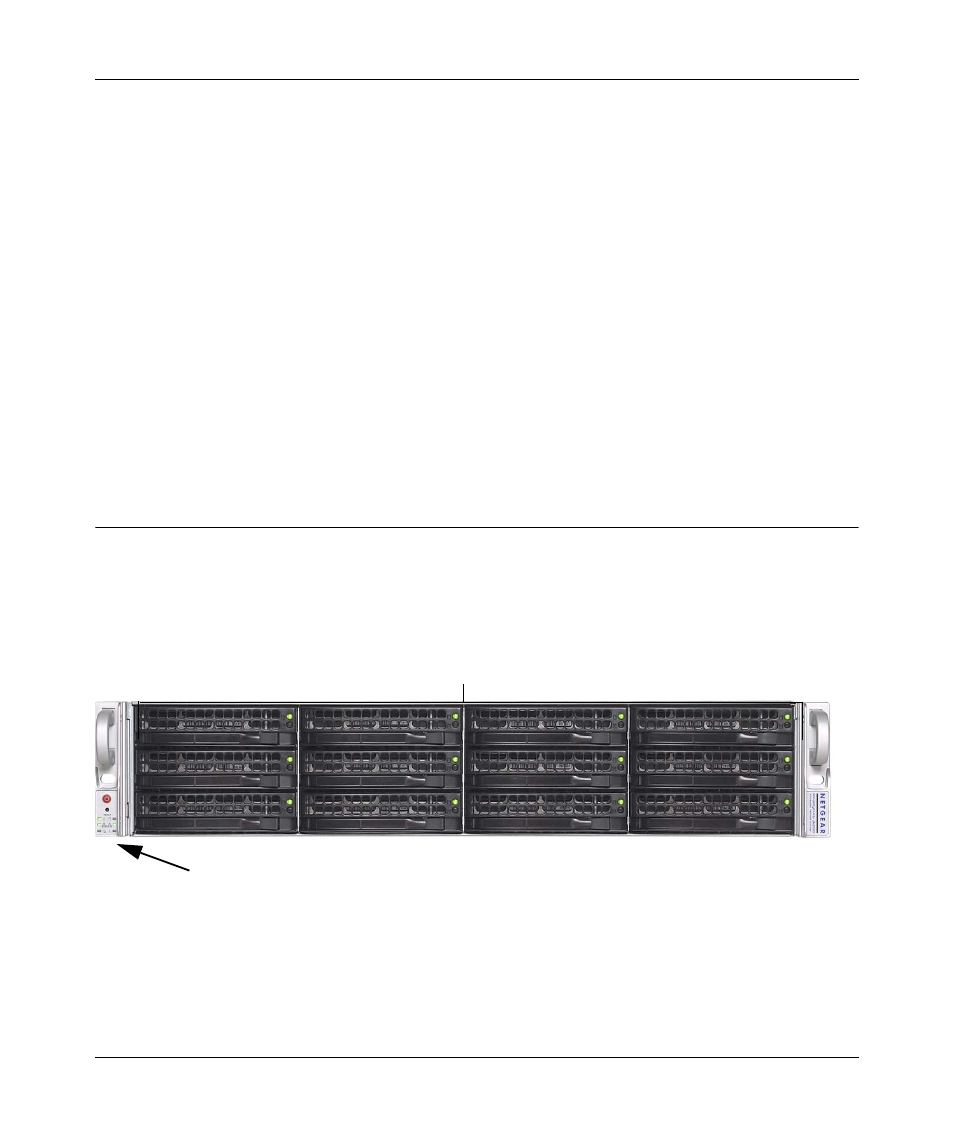

Figure 1-1
1
2
