15

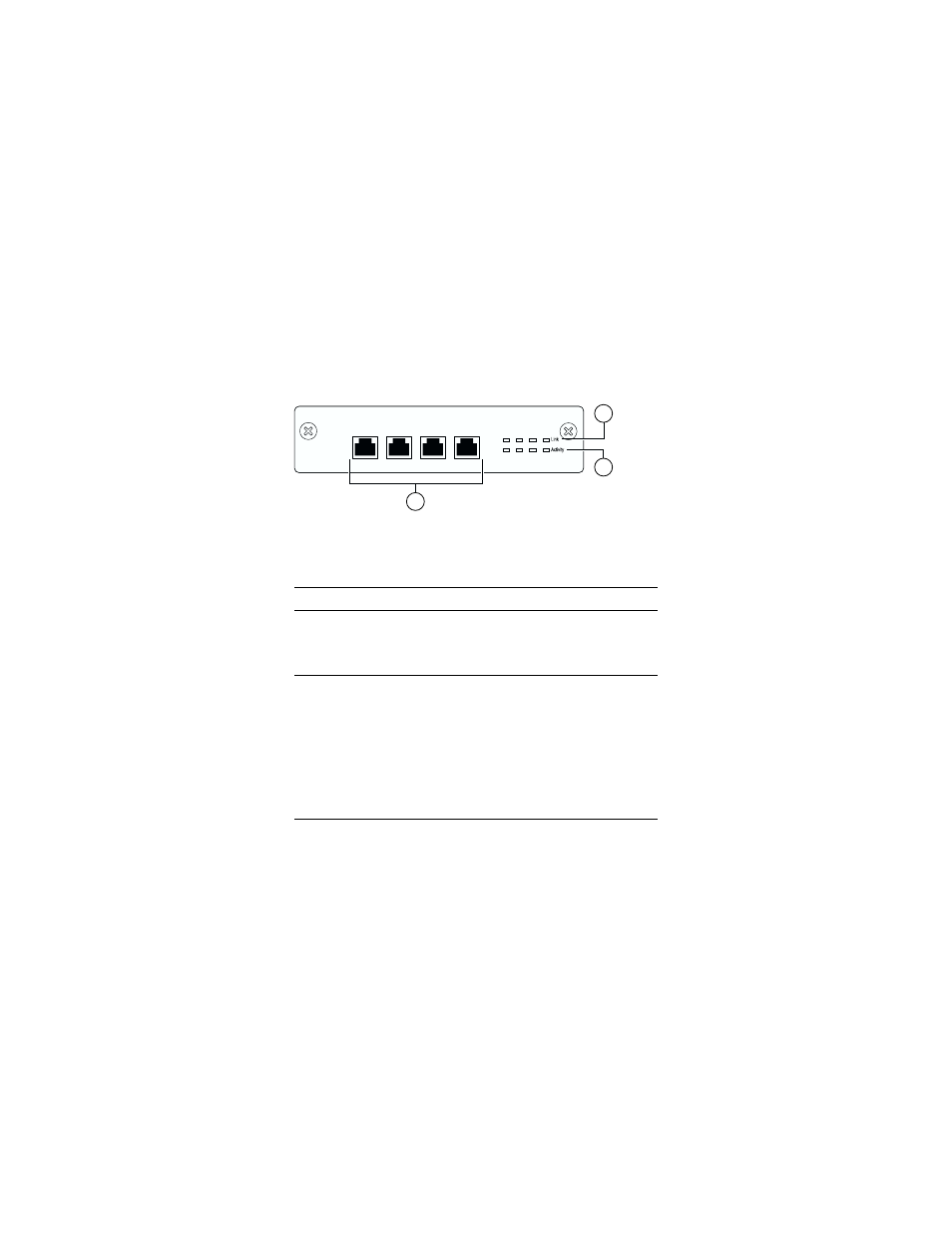

Figure 6 BPS2000-4FX MDA front panel
Table 7 describes the BPS2000-4FX MDA front-panel
components.
Table 7 BPS2000-4FX MDA description
Item Label Description
1 Link Link status LEDs (green):
On (green): Valid 100 Mb/s communications link.
Off: No link activity.
2 Activity Port activity LEDs (green):
On: Indicates the network activity level for
the corresponding port. A high level of
network activity can cause LEDs to appear
to be on continuously.
Off: No activity.
3 100BASE-FX port connectors:
The BPS2000-4FX MDA uses MT-RJ connectors.
BPS20002A
BPS2000-4FX MDA
BPS2000-4FX MDA
3
1
2
