12

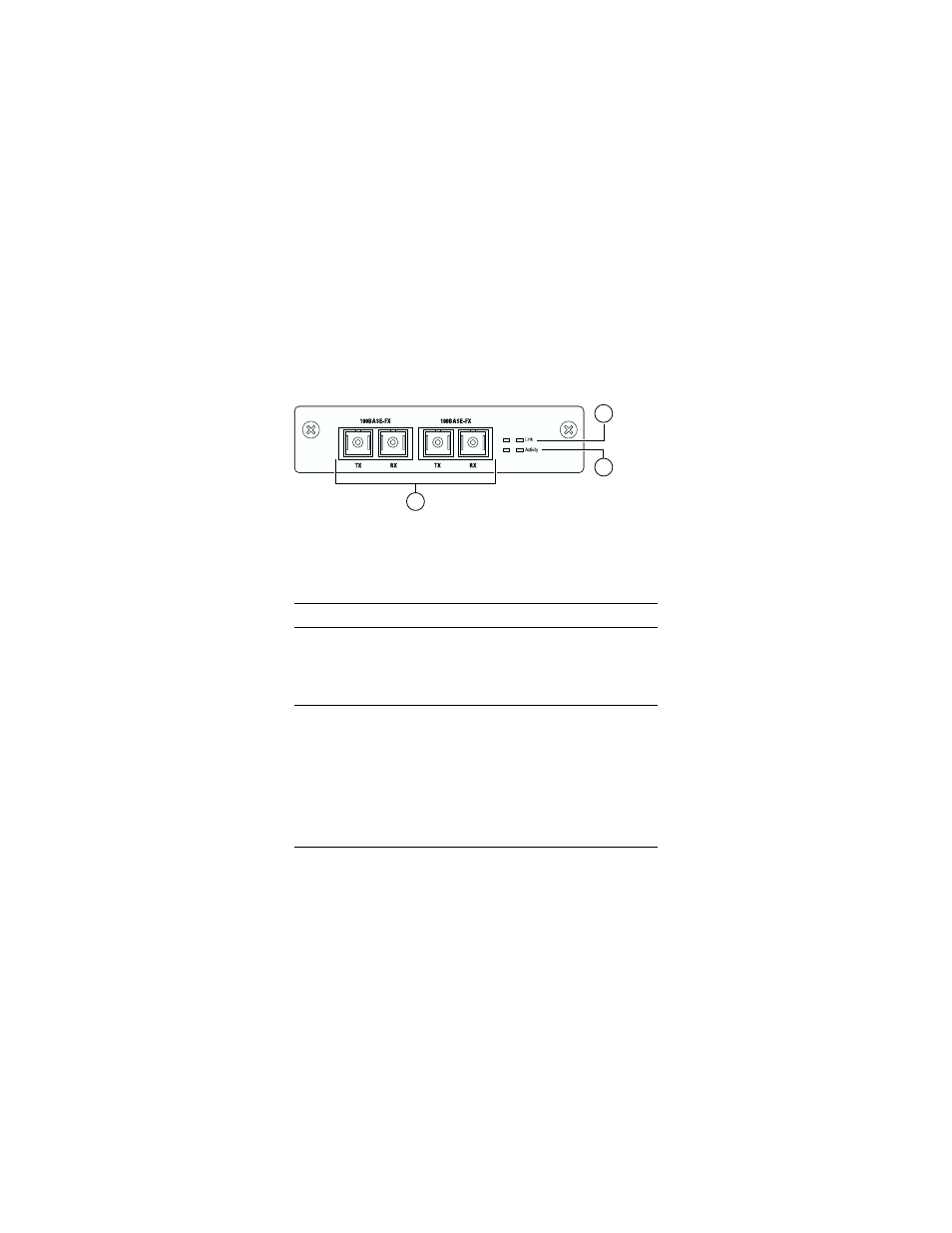

Figure 4 BPS2000-2FX MDA front panel
Table 5 describes the dual-port BPS2000-2FX MDA front-panel
components.
Table 5 BPS2000-2FX MDA description
Item Label Description
1 Link Link status LEDs (green):
On (green): Valid 100 Mb/s communications
link.
Off: No link activity.
2 Activity Port activity LEDs (green):
On: Indicates the network activity level for the
corresponding port. A high level of network
activity can cause LEDs to appear to be on
continuously.
Off: No activity.
3 100BASE-FX port connectors:
The BPS2000-2FX MDA uses SC connectors.
BPS2000-2FX MDA
BPS20001A
3
1
2
BPS2000-2FX MDA
