Utilities 2-3
How to Start Setup
To start the Setup utility, follow these steps:
1. Turn on or reboot the system.
2. Press F2 after POST begins, but before the system boots up. You have about
five seconds to press F2 .

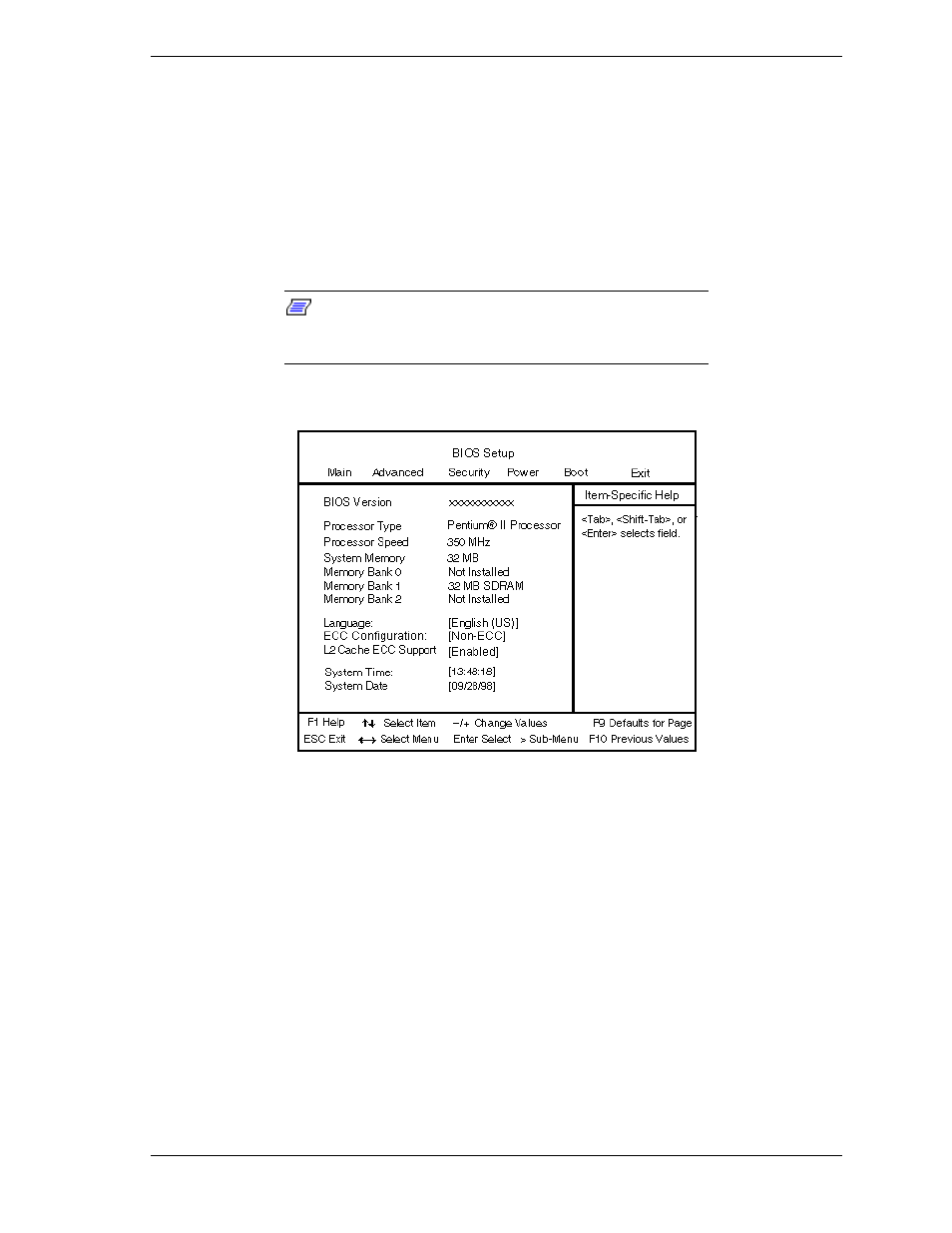

Setup’s Main Menu window appears similar to the following screen.
Note: The screen shown is typical of a system. The
actual settings on the Main Menu depend upon the hardware
installed in the system.
Main Setup Menu
How to Use Setup
The Setup utility has a Main Menu window and six top-level menus with
submenus.
The Main Menu window contains the following areas:
T A title line

the top line of the Main Menu. This line displays the Setup
utility name and copyright message.
T The menu bar

the line under the Setup title line. The menu bar
contains six top-level menus to set system parameters.
