NI sbRIO-960x 6 ni.com
I/O and Other Connectors on the sbRIO Device

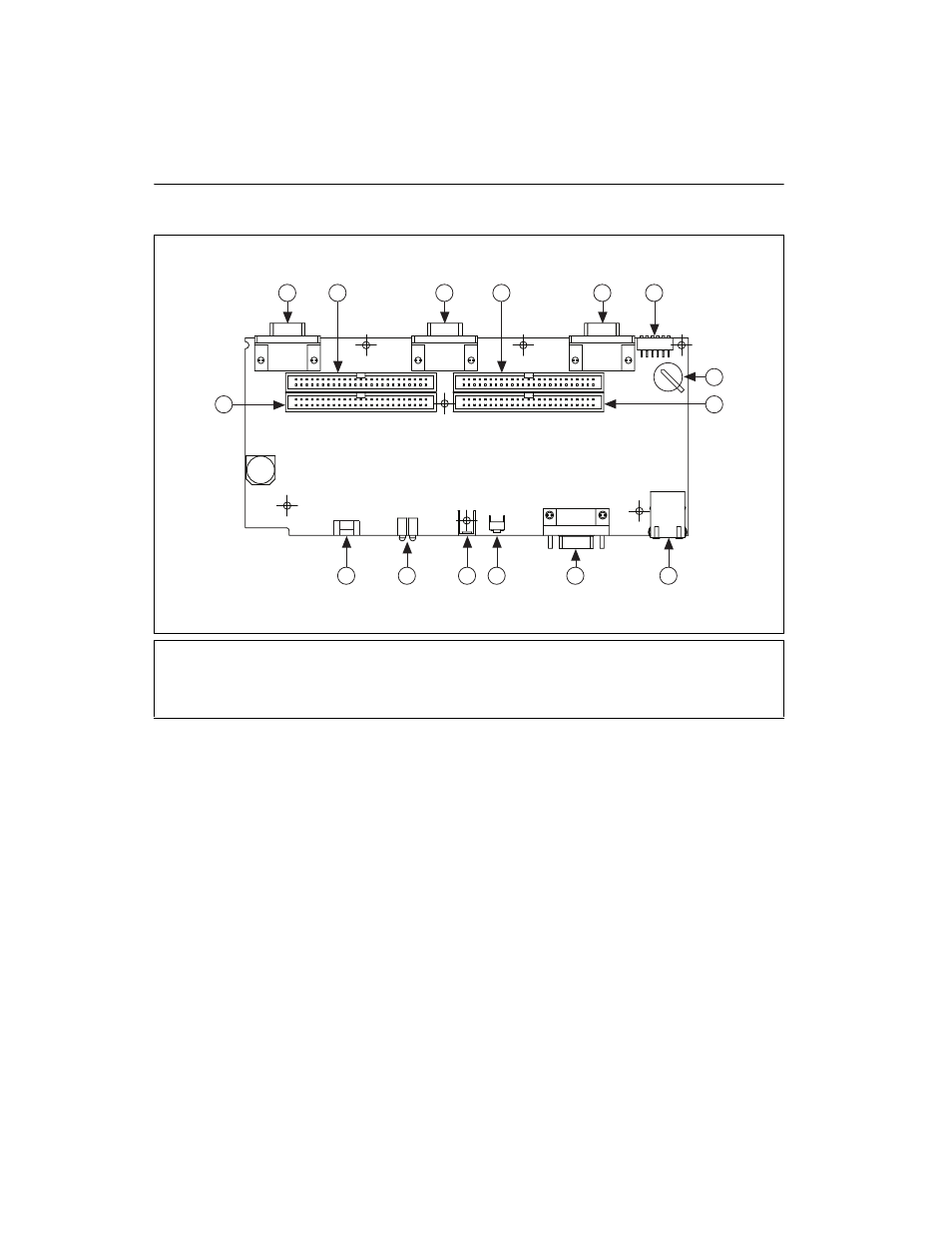

The following figure shows the locations of parts on the sbRIO device.
Figure 4. sbRIO-960x Parts Locator Diagram
1 J11, Connector for C Series Module
2 P5, 3.3 V Digital I/O
3 J10, Connector for C Series Module
4 P4, 3.3 V Digital I/O
5 J9, Connector for C Series Module
6 DIP Switches
7 Backup Battery
8 P2, 3.3 V Digital I/O
9 J5, RJ-45 Ethernet Port
10 J1, RS-232 Serial Port
11 Reset Button
12 P1, Ground Lug
13 LEDs
14 J3, Power Connector
15 P3, 3.3 V Digital I/O
9 10 11 12 13 14
7
8 15
1 2 3 4 5 6
