NI sbRIO-960x

You can install up to three board-only C Series I/O modules on the
sbRIO-960x. The following figure shows the dimensions of the
sb-RIO-960x with three board-only C Series I/O modules installed.

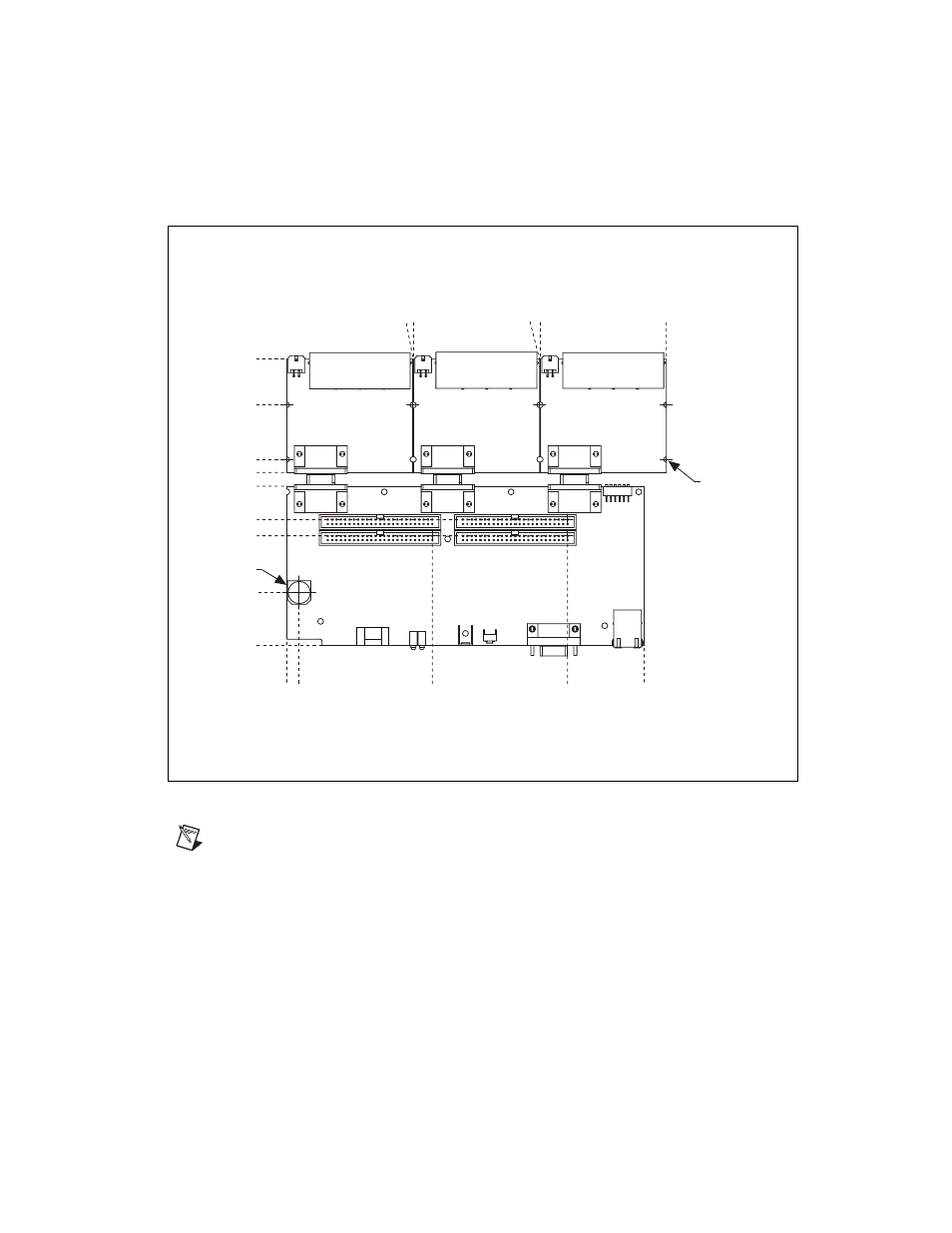

Figure 3. sbRIO-960x with C Series Modules, Dimensions in Inches (Millimeters)

Note

To maintain isolation clearances on the C Series modules, do not use mounting

hardware larger than 0.240 in. (6.1 mm) in diameter and maintain an air gap of at least
0.200 in. (5.0 mm) from the modules to anything else.

1.212 (30.78)

.000 (0)

.285 (7.23)

6.565 (166.75)

2.885 (73.28)

2.514 (63.86)

3.965 (100.71)

3.650 (92.71)

.000 (0)

8.200 (208.28)

2.889 (73.38)

2.910 (73.91)

5.799 (147.29)

5.820 (147.83)

8.709 (221.21)

6.442 (163.63)

3.340 (84.84)

Ø.512 (13)

8X Ш .125 (3.18)

4.265 (108.33)

5.515 (140.08)
