NI sbRIO-960x 10 ni.com

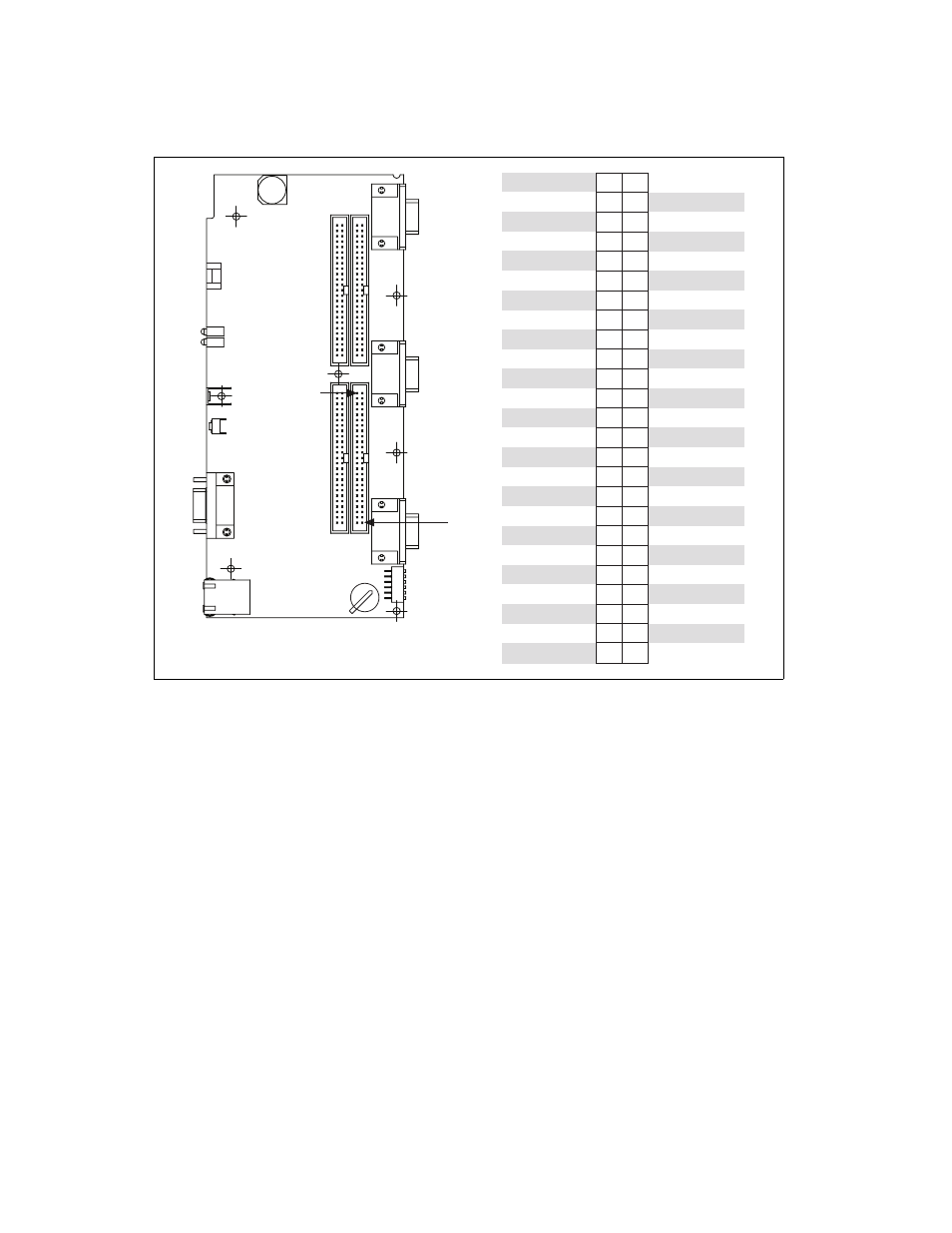

Figure 7. Pinout of I/O Connector P4, 3.3 V Digital I/O
Port0/DIOCTL
Port0/DIO9
5V
D GND
5V
D GND
D GND
D GND
D GND
D GND
Port1/DIOCTL
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
D GND
Port2/DIOCTL
D GND
D GND
D GND
D GND
D GND
Port0/DIO1
Port0/DIO2
Port0/DIO4
Port0/DIO5
Port0/DIO6
Port0/DIO7
Port0/DIO0
Port0/DIO3
Port0/DIO8
Port1/DIO9
Port1/DIO0
Port1/DIO1
Port1/DIO2
Port1/DIO3
Port1/DIO4
Port1/DIO5
Port1/DIO6
Port1/DIO7
Port1/DIO8
Port2/DIO9
Port2/DIO0
Port2/DIO1
Port2/DIO2
Port2/DIO3 50 49
48 47
46 45
44 43
42 41
40 39
38 37
36 35
34 33
32 31
30 29
28 27
26 25
24 23
22 21
20 19
18 17
16 15
14 13
12 11
10 9
8 7
6 5
4 3
2 1
Pin 1
Pin 50
