CHAPTER 8 USB FUNCTION
User’s Manual U12978EJ3V0UD
119

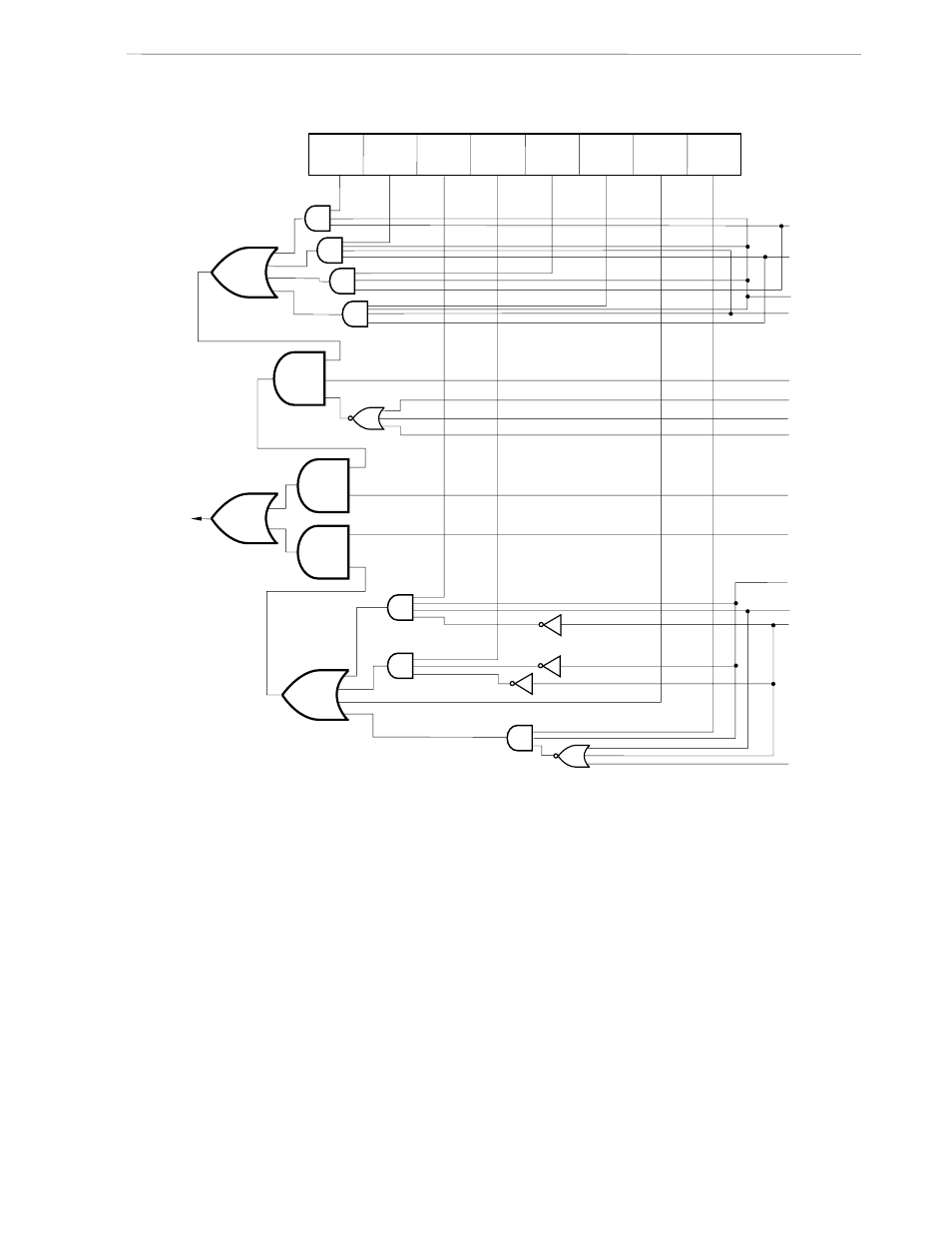

Figure 8-17. Configuration of Handshake Packet Transmit Reservation Register
END1RX
END0RX
TIDRST
ADRRST
DIDRST
DBYER
DBITER
TBYER
TBITER
CRC5ER
CR16ER
JUDGE
TOKEN
Note
JUDGE
DATA
Note
TX
MASTER EN
Note
E1STEN E1NAEN E0NAEN DNAEN ACKEN E0STEN DSTEN STALEN
IN RX Note
Note Because these signals are used internally, confirmation by software is not possible.
