Configuring Ethernet PCI Adapters
Ethernet PCI Adapters 2-29

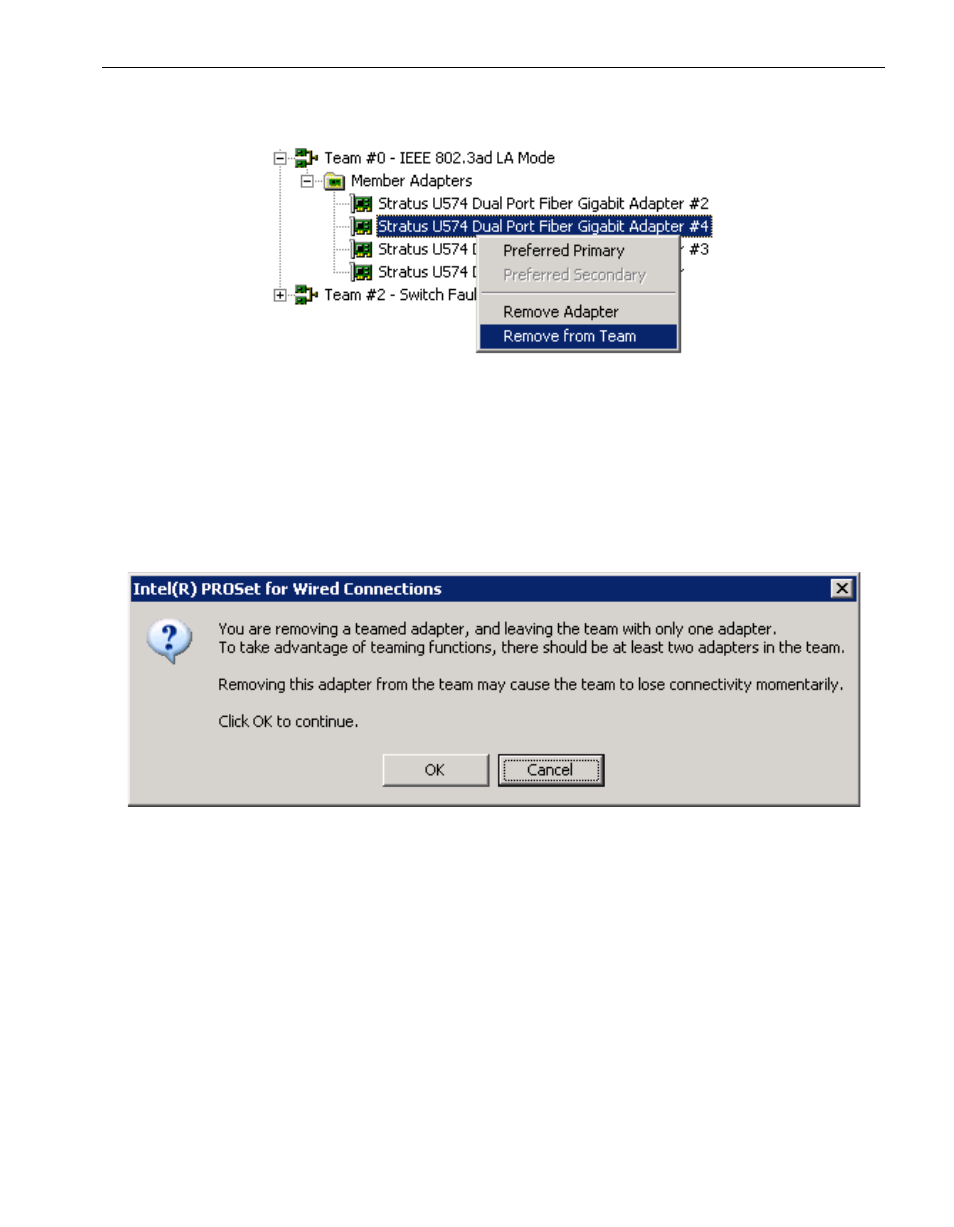

Figure 2-15. Removing an Ethernet PCI Adapter from a Team
4. A confirmation message appears. If there are only two Ethernet PCI adapters in
the team, PROSet warns you about leaving the team with only one adapter
(
Figure 2-16 ). Click OK.
Repeat steps 3 - 4 for each adapter you intend to remove from the team.
Figure 2-16. Confirmation Message: Removing an Ethernet PCI Adapter from a Team
5. When the Intel(R) PROSet for Wired Connections dialog box reappears, if
necessary, you can manually designate new primary and secondary adapters for
the team. See step
7 of “Creating Ethernet Teams” on page 2-18 .
(If you are removing the primary or secondary adapter in the team, PROSet will
automatically designate other team members to fill these roles, but you can
optionally assign them yourself.)
