Configuring Ethernet PCI Adapters
2-6 Express5800/320Ma: PCI Adapter Guide

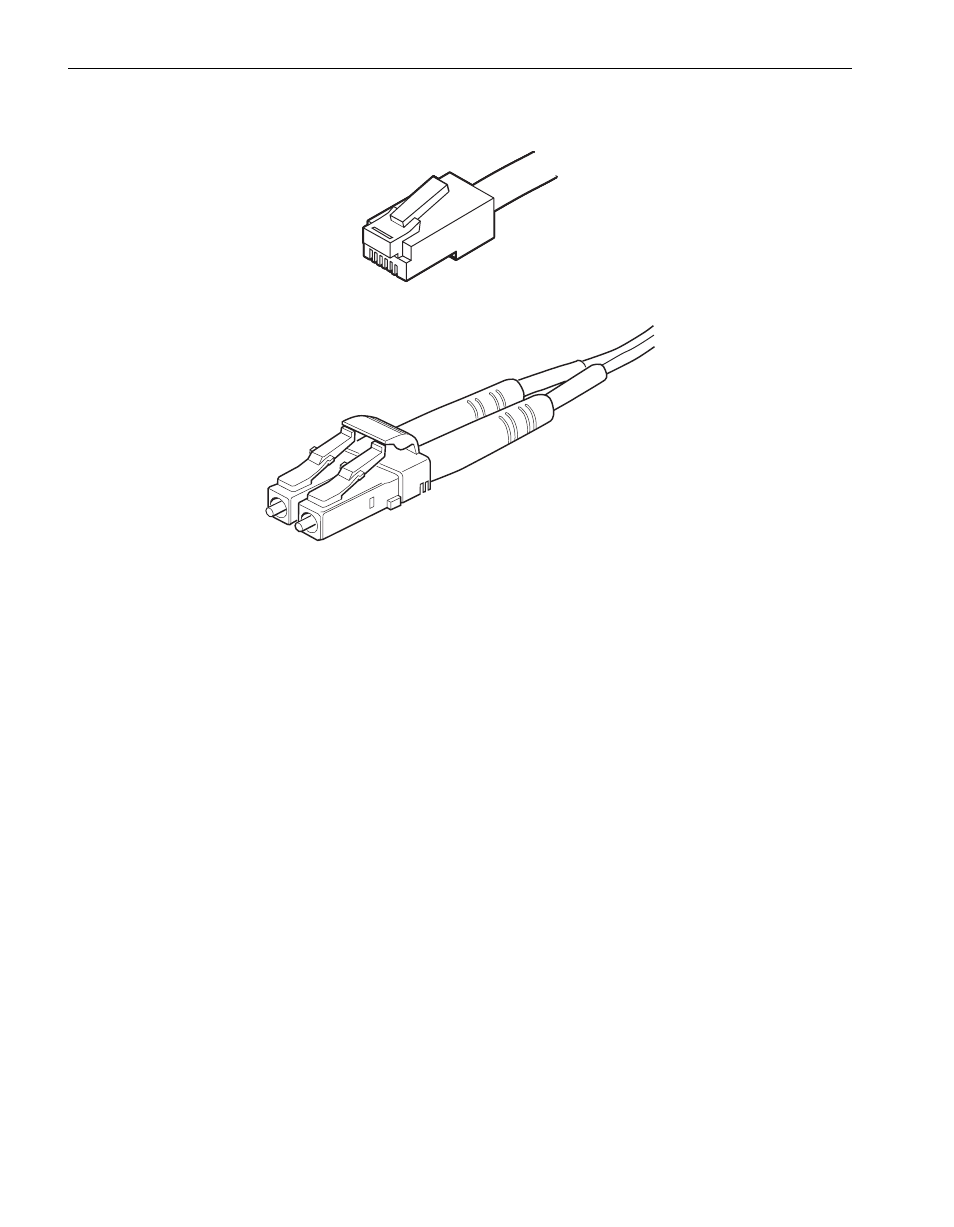

Figure 2-2. RJ-45 Connector
Configuring Ethernet PCI Adapters
Use the PROSet utility to configure Ethernet PCI adapters (see “Starting PROSet” on
page 2-7 ). PROSet is part of the Ethernet PCI adapter software.
Use PROSet to perform the following tasks:
•
Locate a PCI adapter (see “Locating Ethernet PCI Adapters” on page 2-15 ) in a
system with many Ethernet PCI adapters.
• Configure the line speed and/or duplex mode of an Ethernet PCI adapter with
values appropriate to the adapter and the media to which it connects (see
“Configuring Link Speed and Duplex Mode” on page 2-16 ).
•
Configure Ethernet PCI adapters into teams (see “Types of Fault-Tolerant Ethernet
Teams” on page 2-9 ). For information about how to configure the teams, see
“Configuring Ethernet Teams” on page 2-14 .
•
Assign virtual LANs to a team (see “Virtual LANs” on page 2-13 ). For information
about how to configure the VLANs, see “Configuring Virtual LANs Over a Team” on
page 2-22 .
• Manage a team by removing or adding adapters, or removing the team (see
“Managing Ethernet Teams” on page 2-27 ).
• Modify the advanced settings of an individual Ethernet PCI adapter, a team, or a
VLAN (see the PROSet online help).
