Configuring Ethernet PCI Adapters
2-26 Express5800/320Ma: PCI Adapter Guide

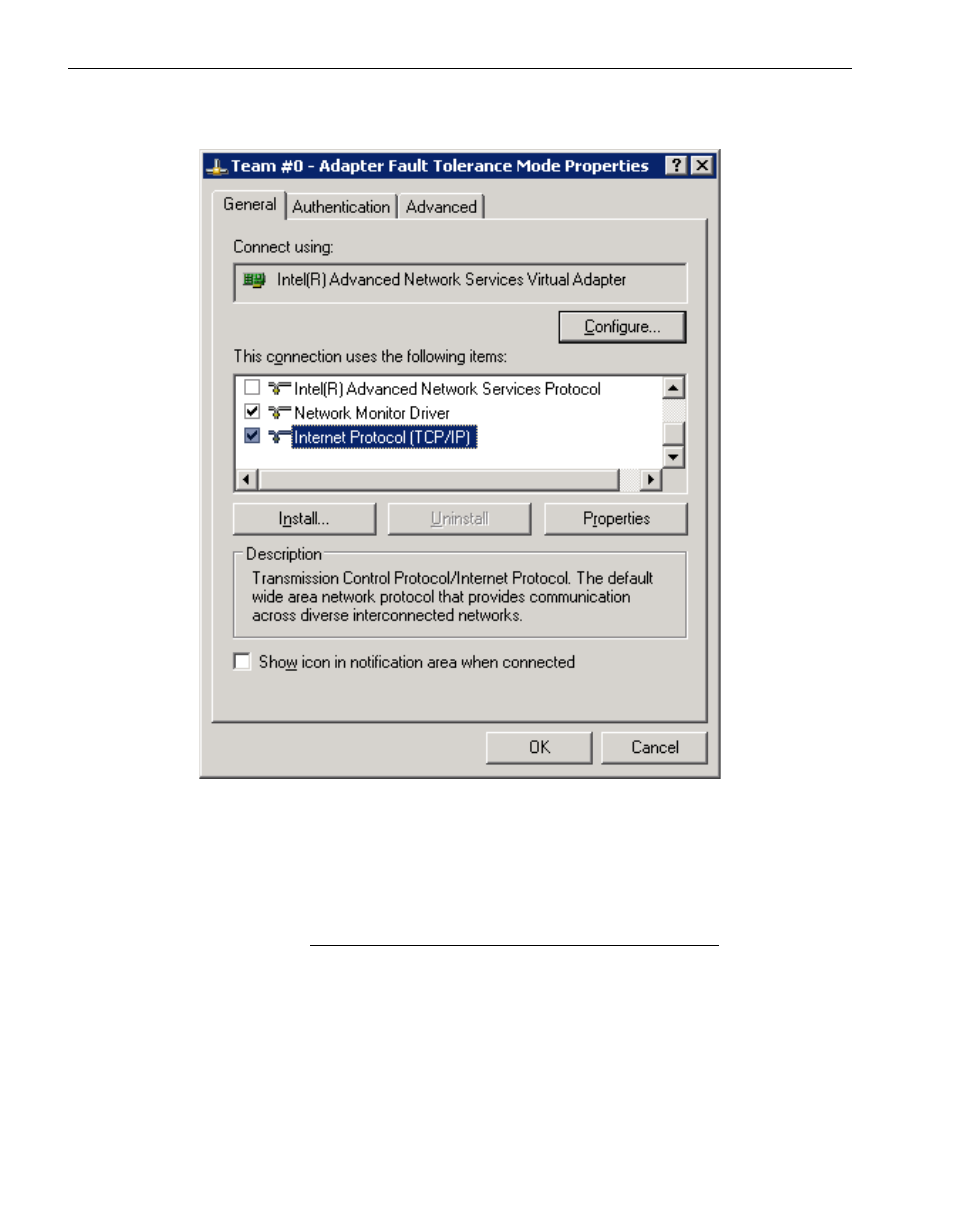

Figure 2-13. Ethernet Team Properties
4. In the Internet Protocol (TCP/IP) Properties dialog box (see Figure 2-14 ), select
Obtain an IP address automatically or Use the following IP address. If you
select Use the following IP address, enter the IP address, subnet mask, and
default gateway. Consult your network administrator for all TCP/IP property
settings.
N O T E
Your TCP/IP property settings must match the
configuration of the network to which the team or VLAN is
connected. Select Obtain an IP address automatically
only if the network supports it. If you select it and the
network does not support it, the Ethernet PCI adapter may
be unusable.
