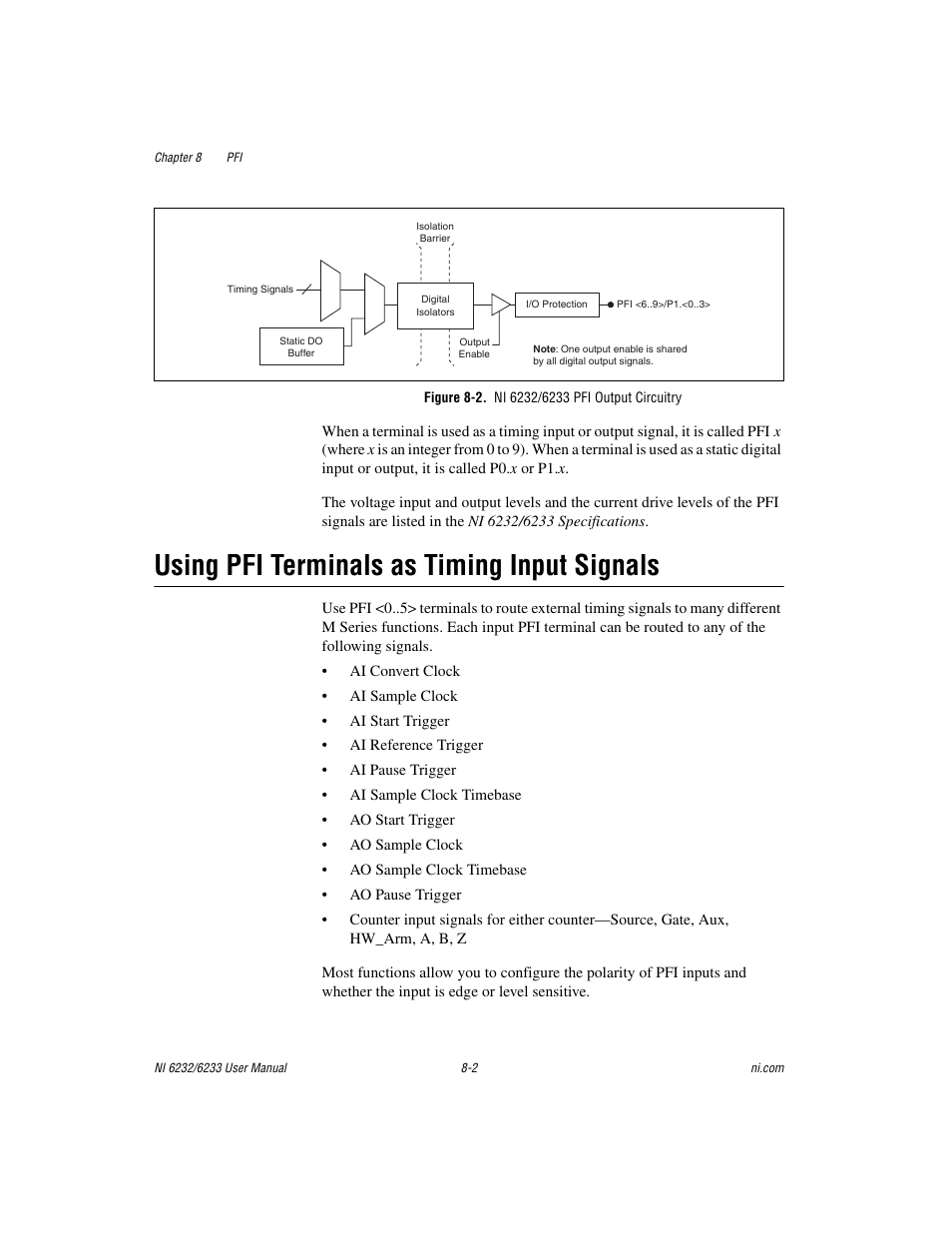

Figure 8-2. ni 6232/6233 pfi output circuitry, Using pfi terminals as timing input signals, Using pfi terminals as timing input signals -2 – National Instruments NI 6232 User Manual
Page 115
