NP2624M User Guide

YML827 Rev1

4. LACP Work Port Num: Deﬁnes the maximum number of ports that can be aggregated

at the same time. If local static trunk group, the number must be the same as group

member ports.

NOTE:

Before changing settings on this page, you have to set trunk group
on the page of Trunk Configuration first.

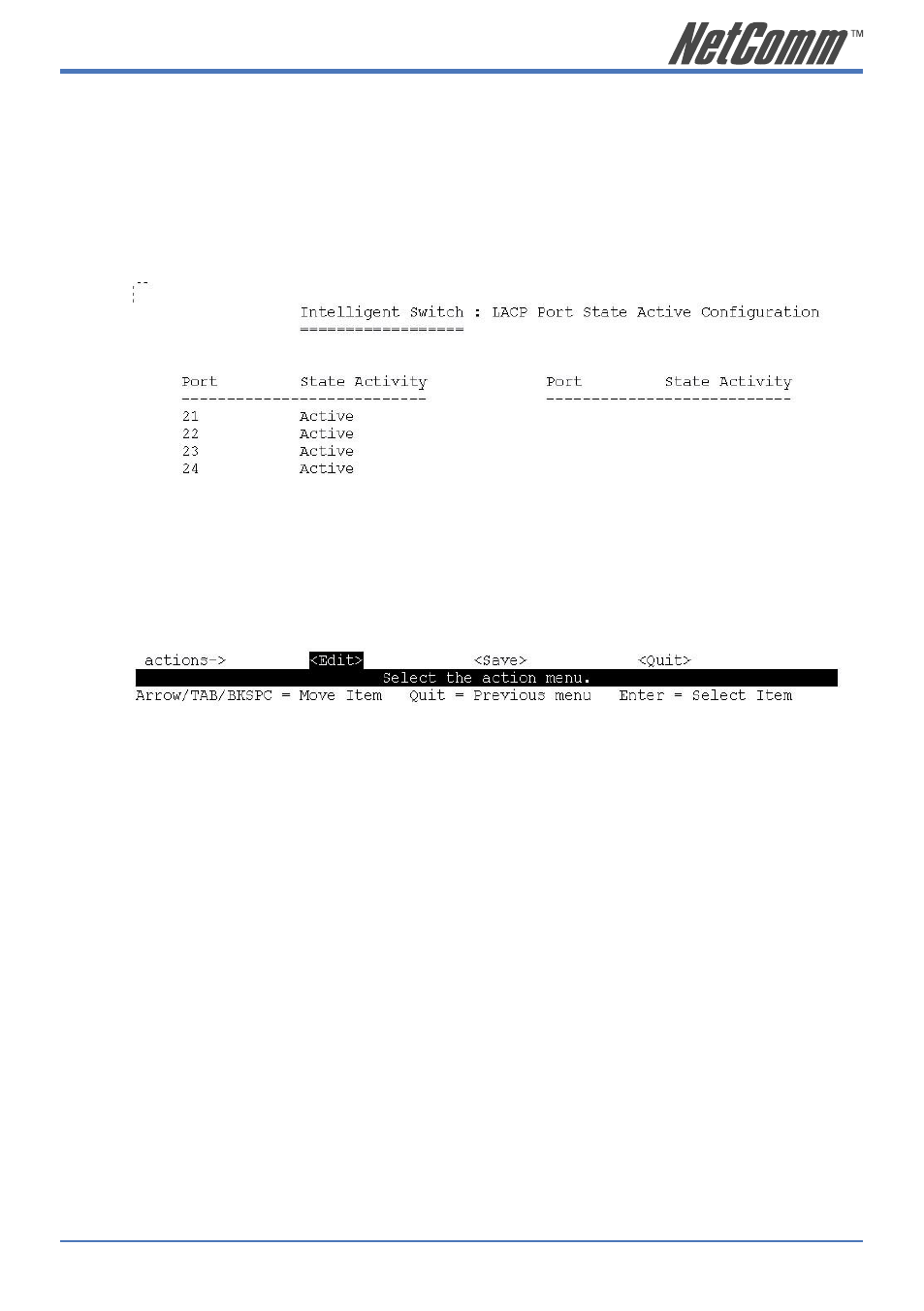

4.3.4.2. State Activity

1. Select .

2. Press the Space key to choose the item.
Active: The port automatically sends LACP protocol packets.
Passive: The port does not automatically send LACP protocol packets, and responds

only if it receives LACP protocol packets from the opposite device.

3. Press Ctrl+A go back action menu line.
4. Select to save conﬁgured values.

NOTE:

If a user sets LACP mode in the trunk group, all of the member ports
of this trunk group will set “Active” automatic.
