NOTE:

Pressing “Save” will only save one page of configuration. If static
trunk groups exist, they will be displayed (eg: TRK1, TRK2…) after
port 26, and you can configure them as above.

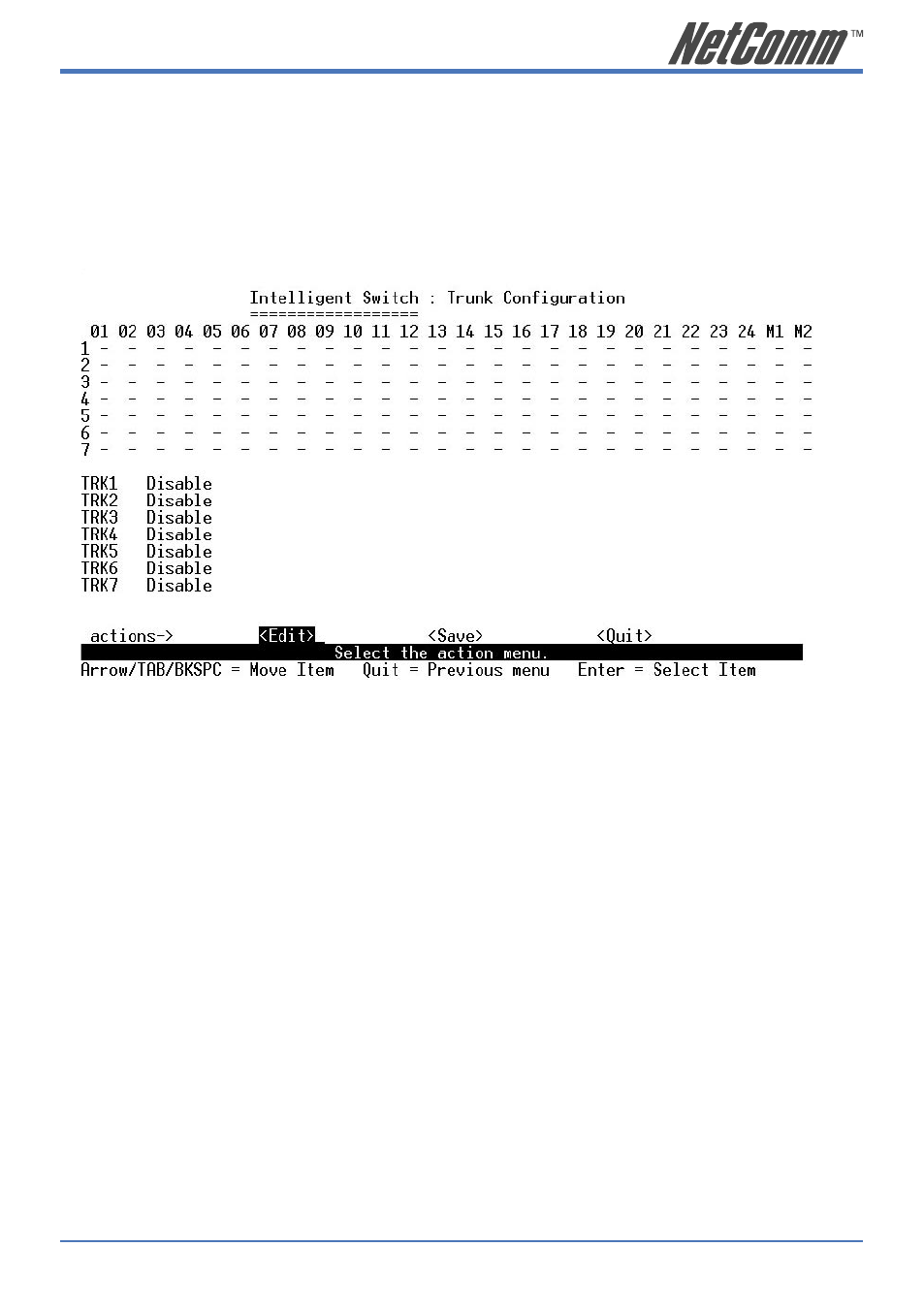

4.2.2. Trunk Configuration

This page allows the user to create a maximum of seven trunk groups. Users can arbitrarily select

up to four ports from port 1~port 26 to build a trunk group.

1. Select on the actions menu
2. Press space key to conﬁgure the member port of trunk group. You also have to set

“Static” or “LACP” for the corresponding trunk group of TRK1~TRK7 item.

“Static” – the normal trunk.
“LACP” – this trunk group has link aggregation control protocol.
3. Press Ctrl+A to go back action menu line
4. Select to save all conﬁgure value.
5. If the TRK1~TRK7 are “Disabled”, the trunk group is deleted.
6. All ports in the same static trunk group will be treated as a single port. So when setting

VLAN members and Port conﬁguration they will be toggled on or off simultaneously.

NOTE:

If a VLAN group exists, all of the members of static trunk group must
be in the same VLAN group.
