2.2. Port status

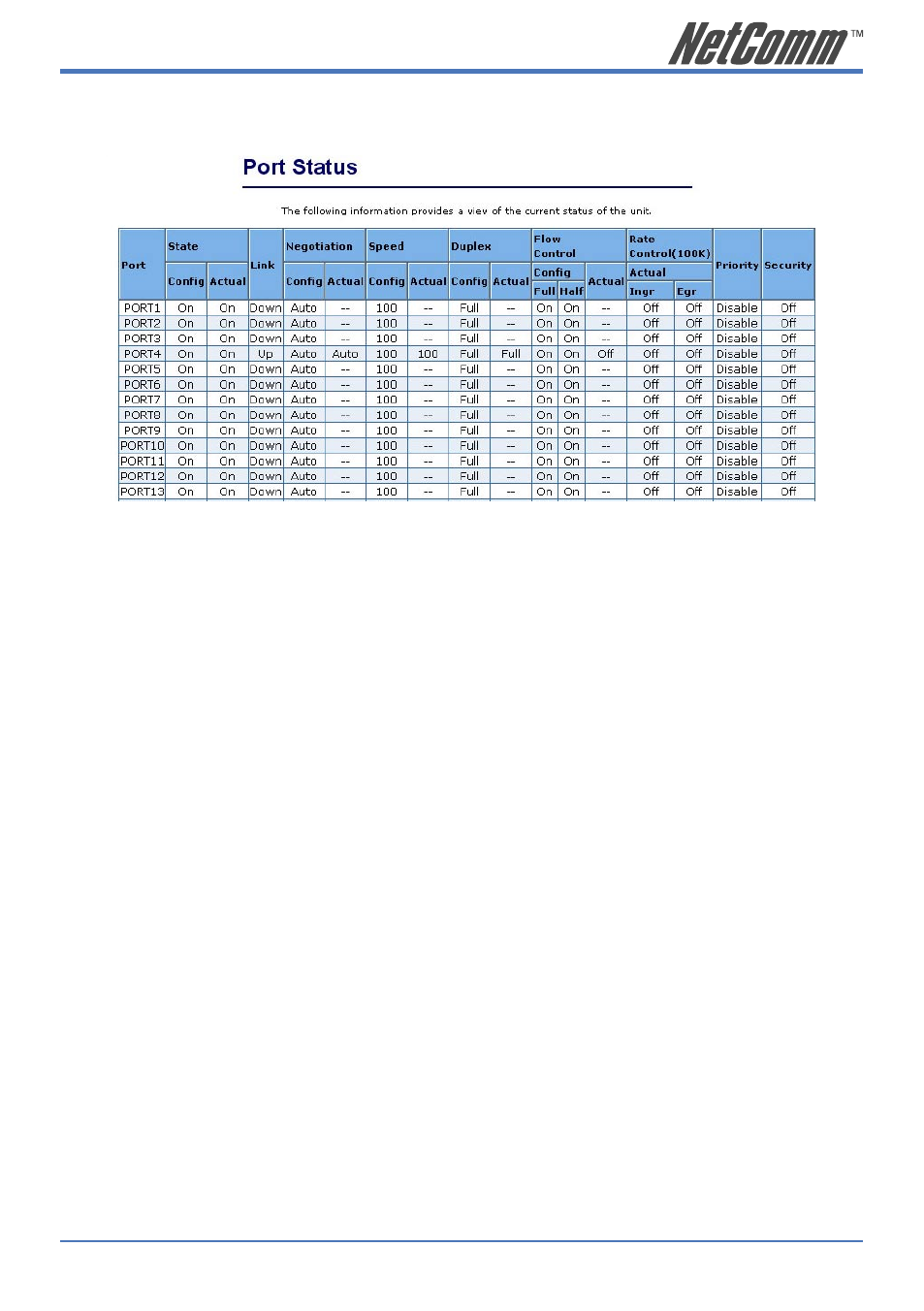

This page provides current status of every port and the negotiation result.
State: Displays the port status: On or Down. “Unlink” will
be treated as “off”.
Link Status: Displays the link status. Down means “No Link”, Up
means “Link”.
Auto Negotiation: Displays the auto negotiation mode: auto/force/
Nway-force.
Speed status: Displays the speed, port 1- 24 are 10/100Mbps, Port
25-26 are 10/100/1000Mbps.
Duplex status: Displays full-duplex or half-duplex mode.
Flow Control: Full: Displays the flow control is enabled or disabled
in full mode.
Half: Displays the backpressure is enabled or
disabled in half mode.
Rate Control: Displays the rate control setting.
Ingr: Displays the port effective ingress rate of user
setting.
Egr: Displays the port effective egress rate of user
setting.
Port Security: Displays the port security is enabled or disabled.
Config: Displays the state of user setting.
Actual: Displays the negotiation result.
