28 Chapter 2 SREM Screen Descriptions
Screen element Description
Toolbar items See "Toolbar items" (page 32) "Toolbar items"
(page 32) .
Tabs Screen areas that the user can select to monitor
and configure additional device options.
Configuration and
Monitoring pane Area where the user views, updates and configures
device options. Required fields are marked with
asterisk (*).
Device list Allows you to select, view, expand, and collapse
configured devices. When you expand a device,
you see any devices or components configured
under it in the device hierarchy. Devices with
subdevices or components are referred to as
"parents."
Screen icons Allows quick access to some common screens.

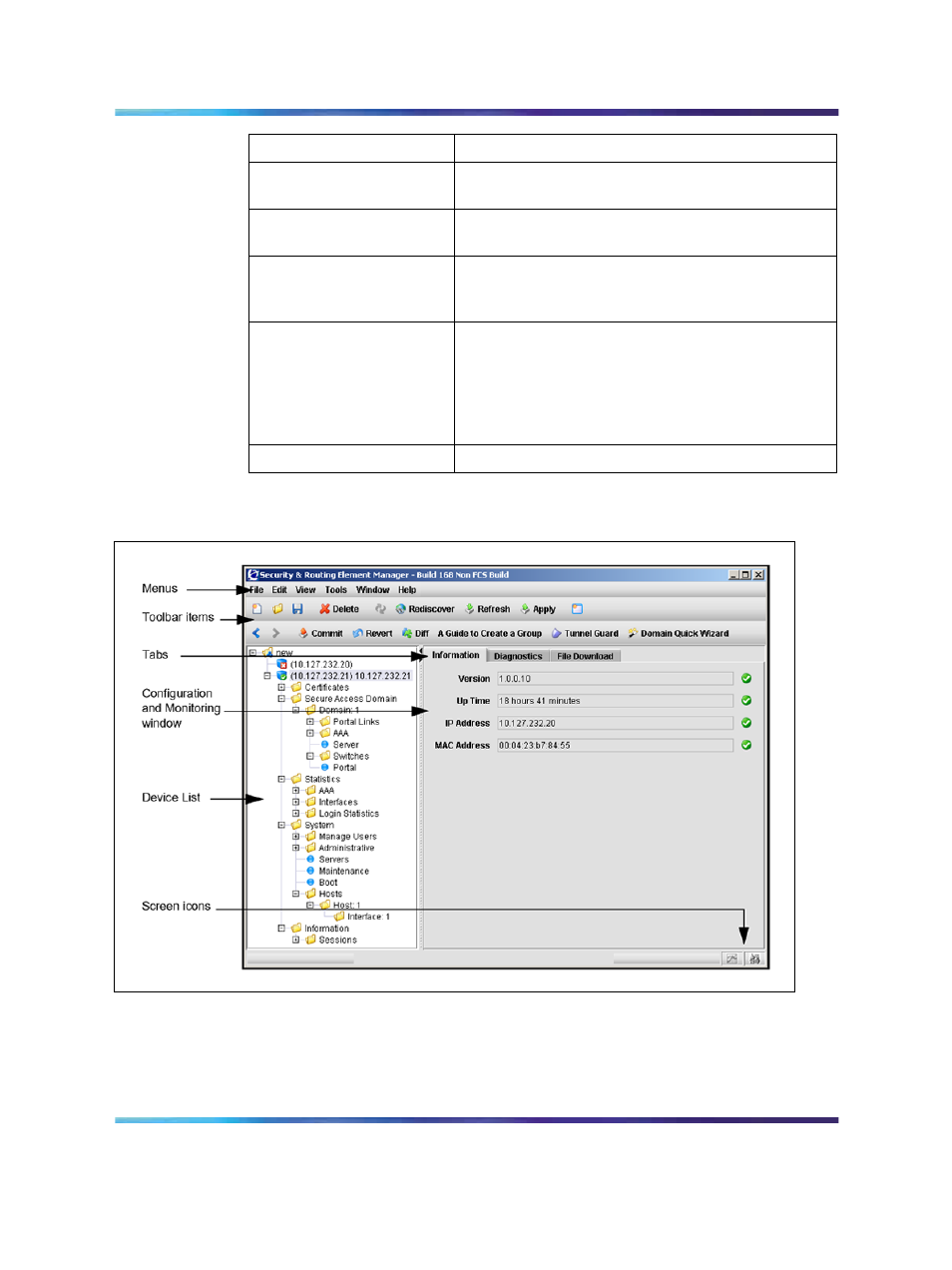

Figure 13
Main SREM screen
