Chapter

4

Arb Operation

This chapter describes how to use your DAQArb 5411.

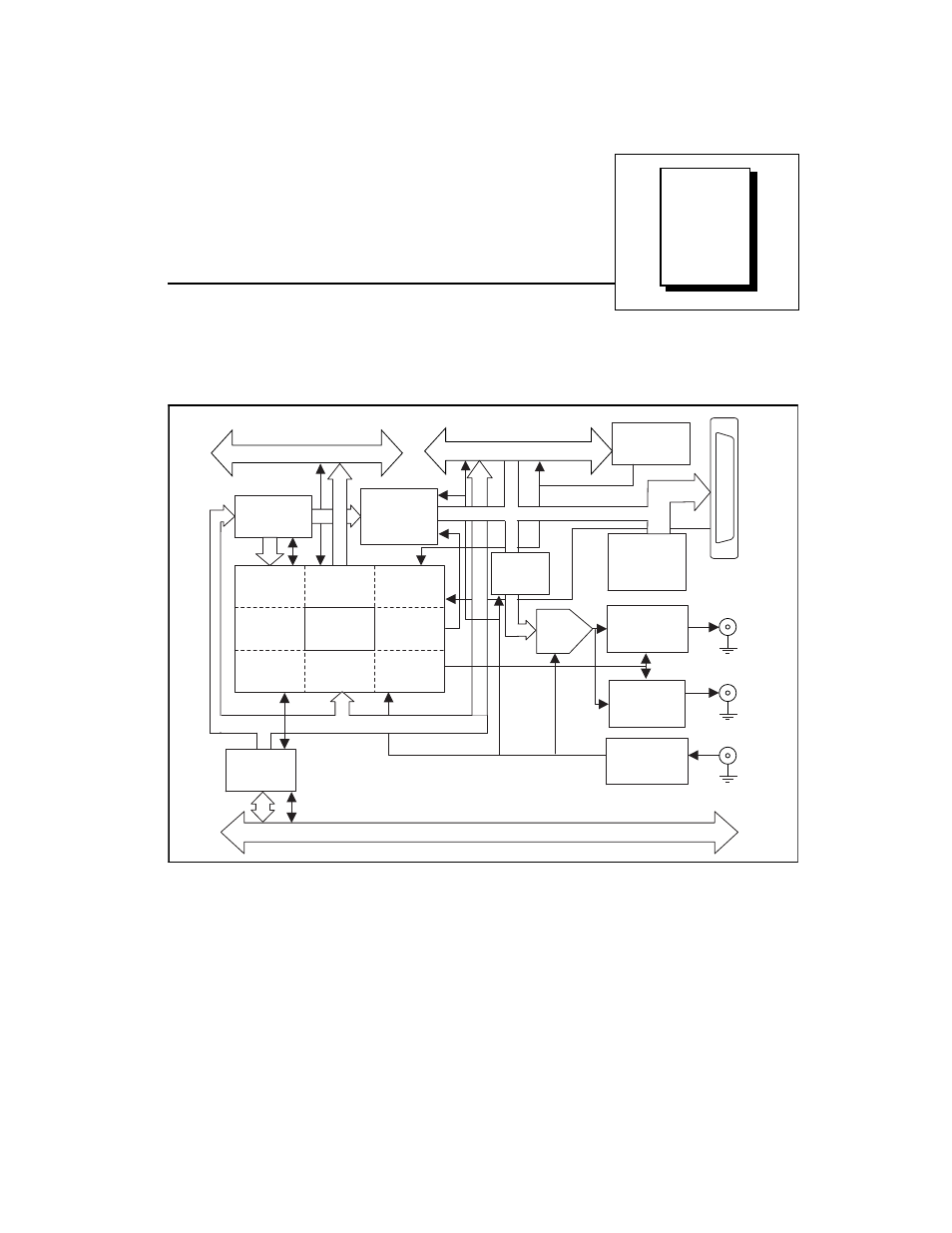

Figure 4-1 shows the DAQArb 5411 block diagram.

Figure 4-1. DAQArb 5411 Block Diagram

The DAQArb 5411 consists of a bus interface that communicates with
the ISA bus for the AT-5411 or the PCI bus for the PCI-5411. The bus
interface block handles Plug and Play protocols for assigning resources
to the device and providing drivers for the data and address bus that are
local to the device. The waveform sequencer performs multiple

Data Path

ISA/PCI Channel

Waveform

Sequencer

IFIFO

Control

Memory

Controller

RTSI Bus

Memory Connector

Instruction

FIFOs

AMM

Control

RTSI

Control

Digital Connector

ARB

SYNC

PLL Ref

Analog
Control

Pattern

Generation

Circuit

DAC

DDS +

Lookup

Memory

Attenuators,

Filter, and

Amplifier

Level

Crossing

Detector

PLL and

Clocking

DDS

Control

Digital

Filter

Trigger
Control

Filter

Controls

Clock

Controls

Bus

Interface
